Front Bumper Fascia Lower Stiffener Replacement: Notes

Removal Procedure

1. Front Bumper Fascia Energy Absorber - Remove - Front Bumper Energy Absorber Replacement

2. Courtesy of GENERAL MOTORS COMPANY

   WARNING:

   Refer to Eye Protection Warning .

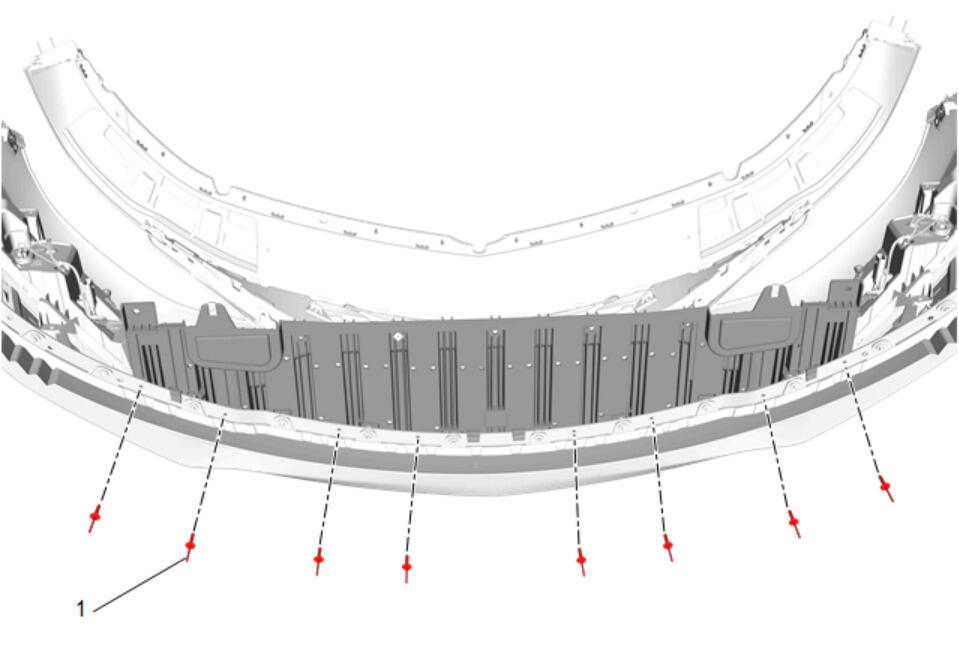

   Front Bumper Fascia Lower Stiffener Rivets (1) - Remove [8x]

3. Courtesy of GENERAL MOTORS COMPANY

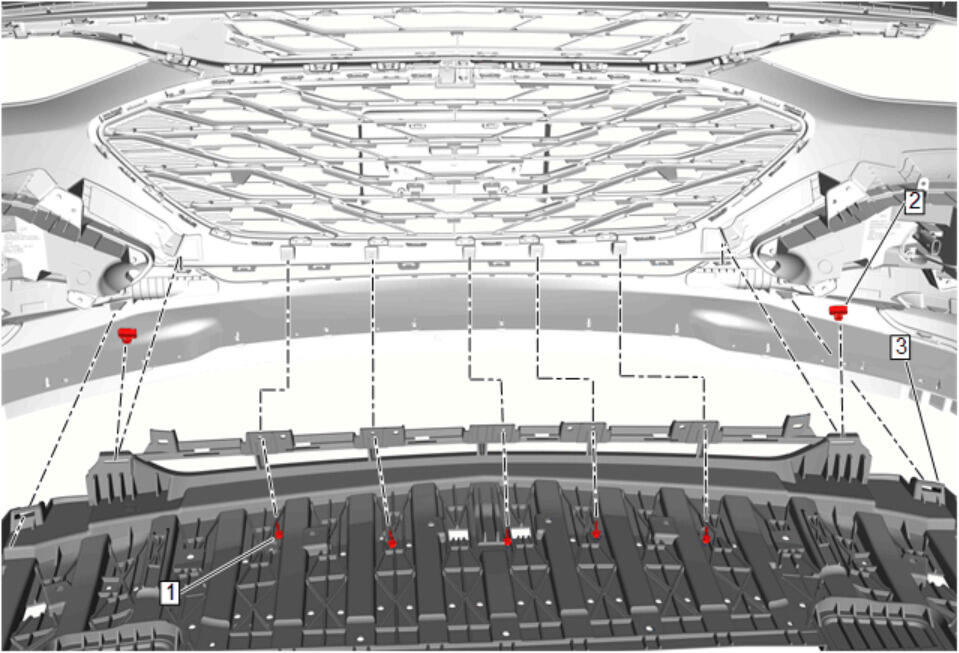

   Front Bumper Fascia Lower Stiffener Bolt (1) - Remove [5x]

4. Front Bumper Fascia Lower Stiffener Clip (2) - Remove [2x]
5. Release the 2 retainer tabs and remove the front bumper fascia lower stiffener (3).
