Front Bumper Energy Absorber Replacement

Courtesy of GENERAL MOTORS COMPANY

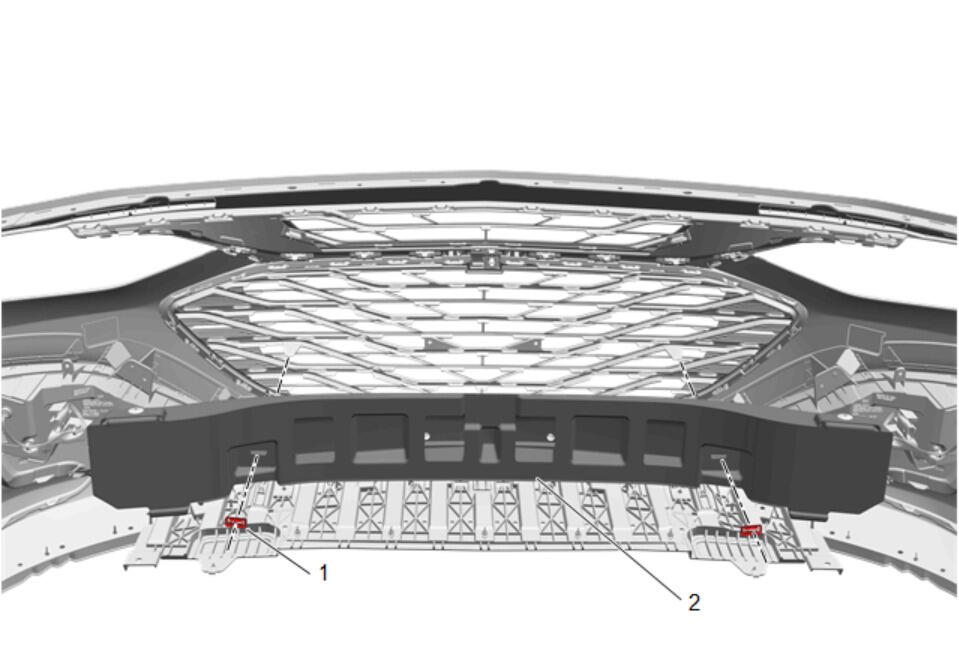

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Front Bumper Fascia Retainer [2x]
2	Front Bumper Energy Absorber Procedure Release the two tabs on each side of the front bumper fascia absorber. Transfer components as necessary.

Callout

Component Name

Front Bumper Fascia Retainer [2x]

Front Bumper Energy Absorber

Procedure
