Front Bumper Fascia Guide Replacement

Courtesy of GENERAL MOTORS COMPANY

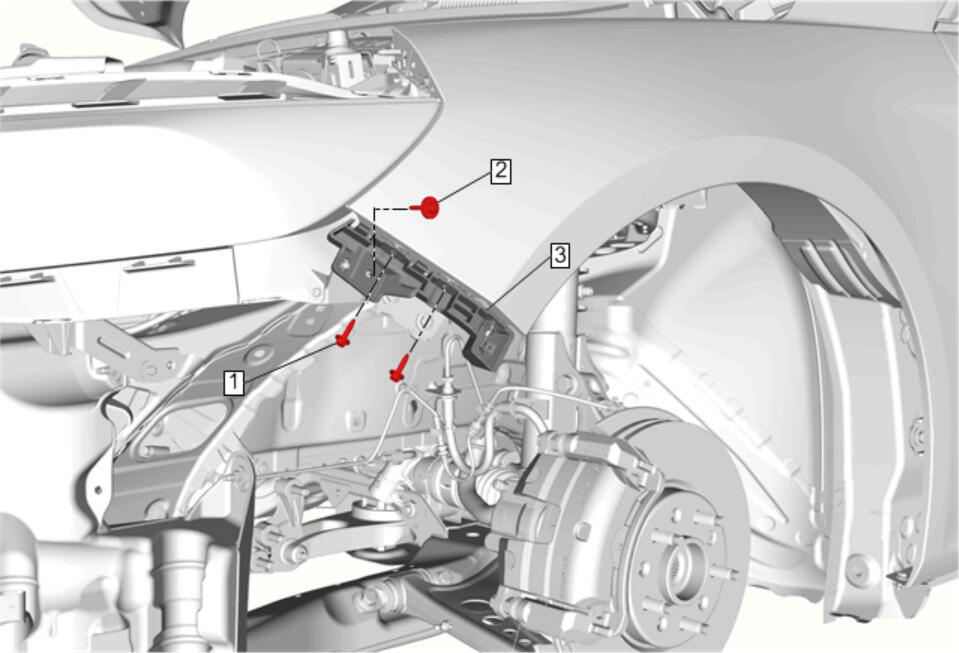

Callout	Component Name
Preliminary Procedure  Front Bumper Fascia Replacement
1	Front Bumper Fascia Guide Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Headlamp Bolt Procedure  Remove the headlamp bolt. Front Headlamp Replacement (T4A) , or Front Headlamp Replacement (T4L)
3	Front Bumper Fascia Guide
