Front Headlamp Replacement (T4L)

Courtesy of GENERAL MOTORS COMPANY

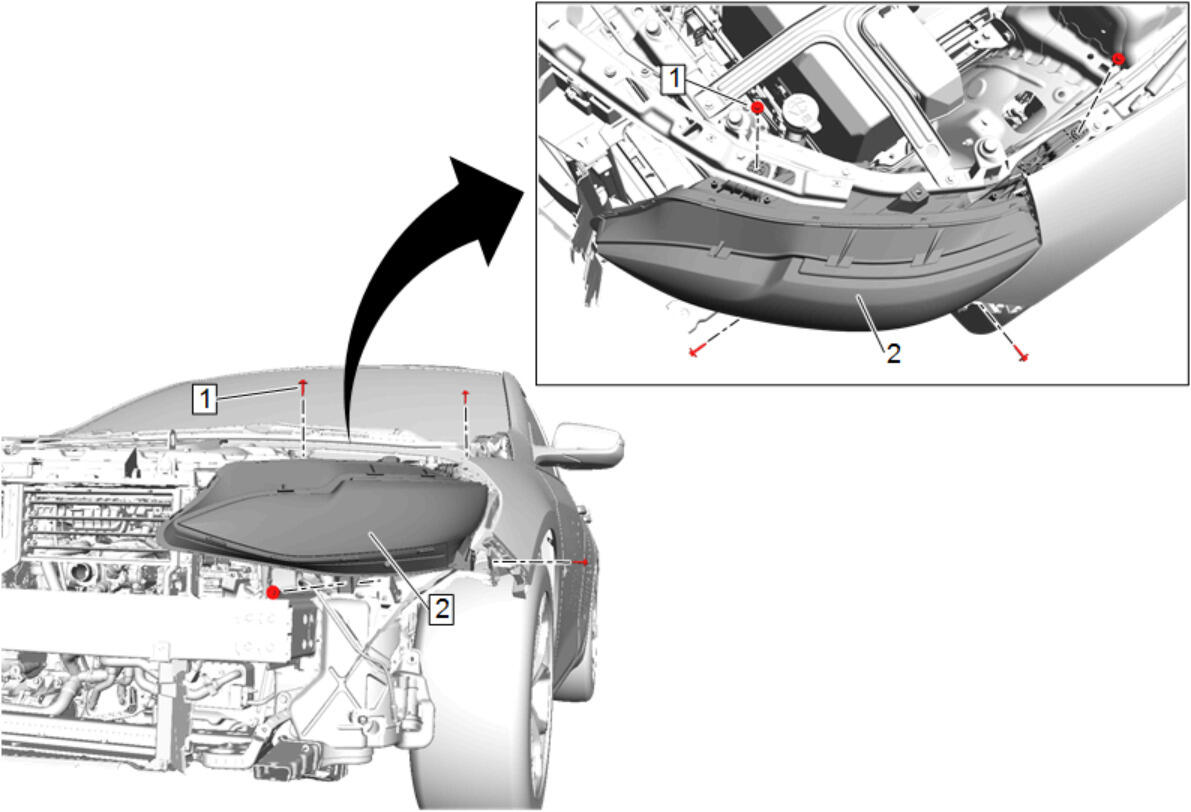

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Center Support Replacement Front Bumper Fascia Replacement
1	Headlamp Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Headlamp Procedure Disconnect the electrical connector. Transfer components as necessary. Aim the Headlamp after replacing. Front Headlamp Aiming

Callout

Component Name

Preliminary Procedures

Headlamp Bolt [4x]

CAUTION:

Tighten

2.5 N.m (22 lb in)

Headlamp

Procedure
