Front Bumper Fascia Center Support Replacement

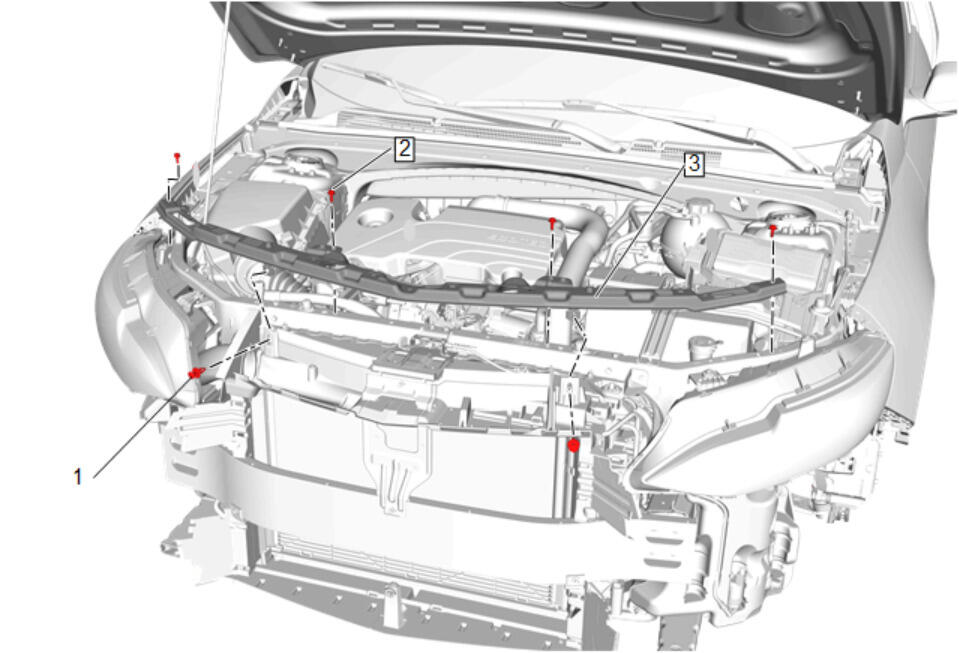

GM5107891Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Bumper Fascia Replacement
  2. Hood Secondary Latch Replacement
1 Radiator Air Upper Deflector Retainer [2x]
2 Front Bumper Fascia Center Support Bolt [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
3 Front Bumper Fascia Center Support
