Installation Procedure
- NOTE:

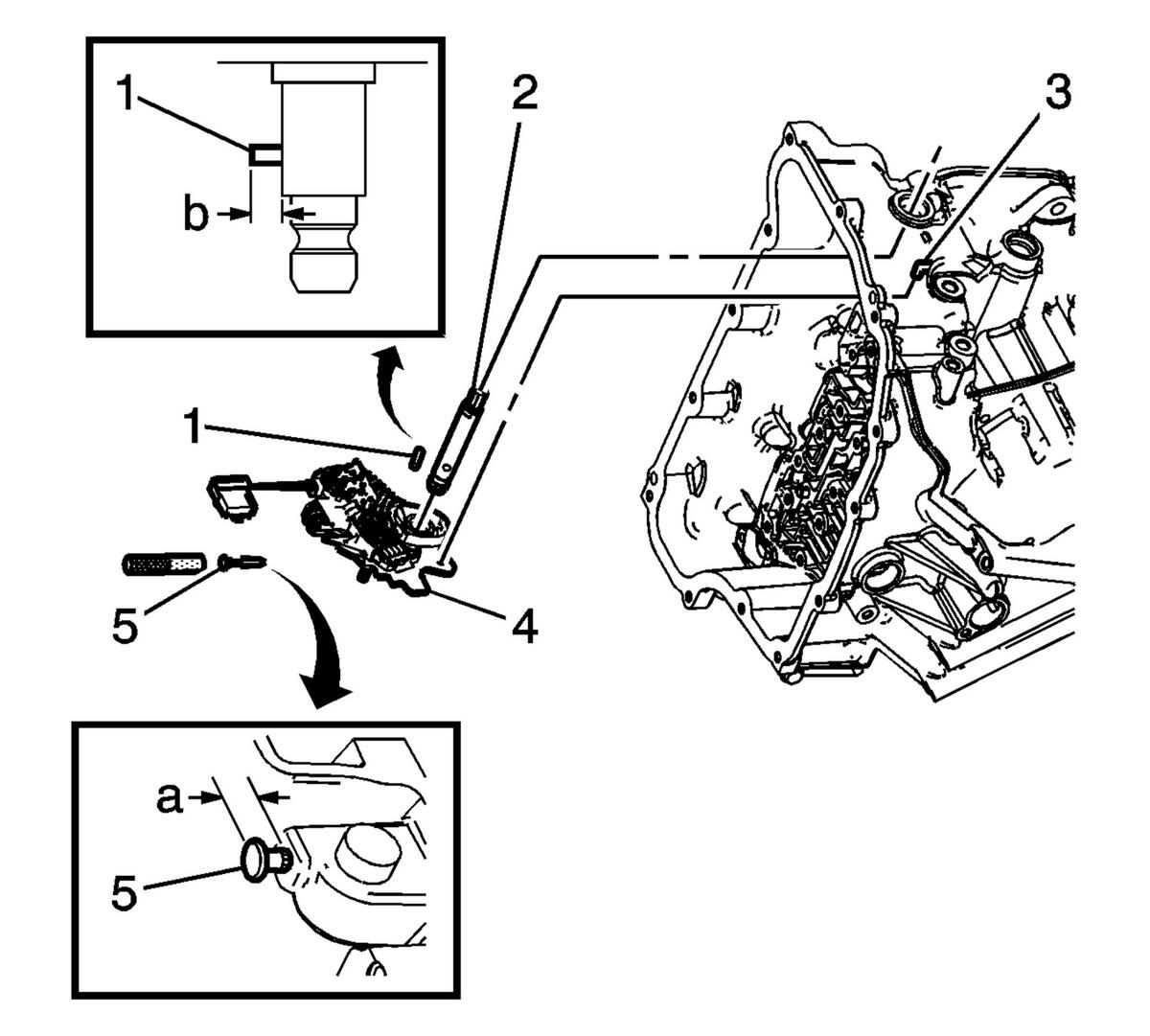

Connect the actuator rod (3) to the detent lever assembly.
Install the manual shaft detent (with shift position switch) lever assembly (4).
- Install the manual shaft (2).
- Install the manual shaft detent lever hub pin (1).
Specification
Install the manual shaft detent lever hub pin to height of 7.9 mm (0.38 in) (b).
- Install the NEW manual shift shaft pin (5) using DT-41229
pin installer. Use a NEW pin to ensure proper engagement with the case.
Specification
Inspect pin installed height is within 7.2 - 8.2 mm (0.28 - 0.32 in) (a).
- Install the control valve body. Control Valve Body Replacement .
- Install the automatic transmission range selector lever. Automatic Transmission Range Selector Lever Cable Lever Replacement .
- Perform the transmission adaptive values learn procedure. Transmission Adaptive Values Learn .
CAUTION:
Use J 41229 to install the manual shaft pin at the correct height in order to properly secure the manual shaft. If you install the pin too deep, the case bore may crack.
