Control Valve Body Replacement

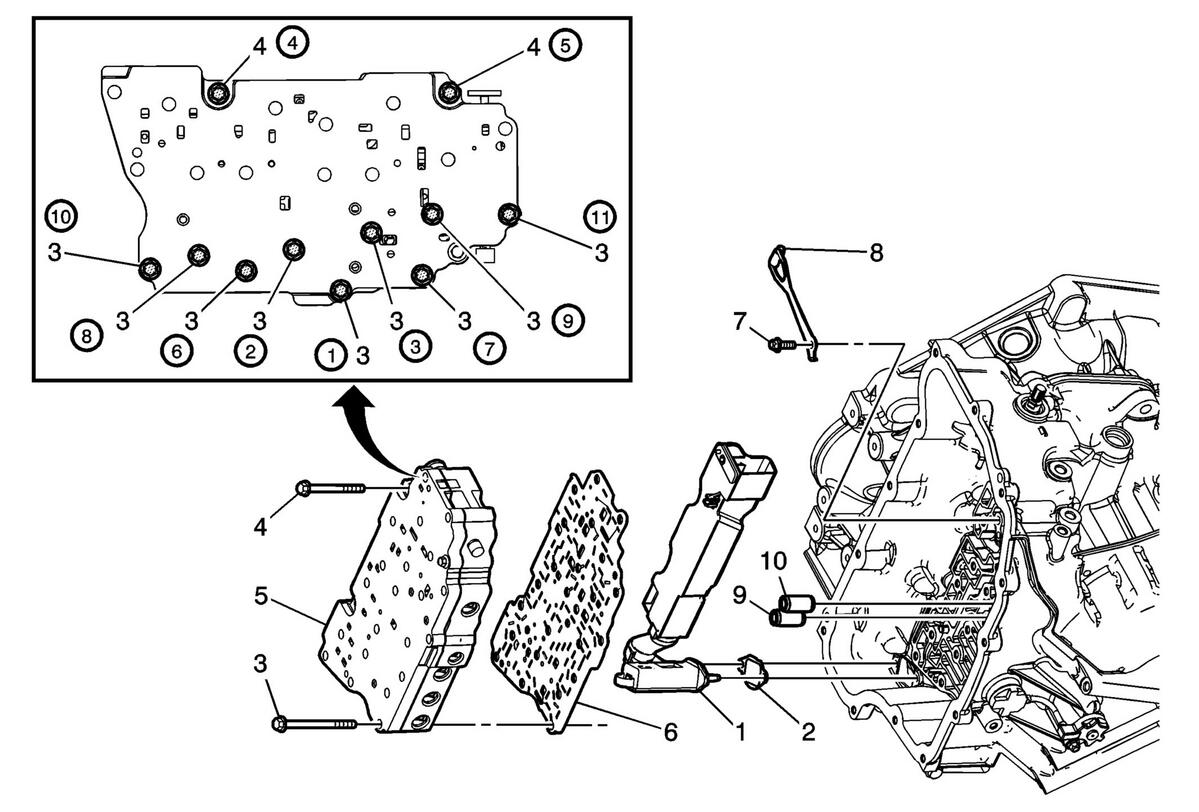

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the control solenoid valve and transmission control module assembly. Refer to Control Solenoid Valve and Transmission Control Module Assembly Replacement . |
|
| 1 | Fluid Level Control Valve |
| 2 | Fluid Level Control Valve Gasket |
| 3 | Control Valve Body Bolt M6 x 60 (Qty: 9)
CAUTION:
Refer to Fastener Caution .
NOTE:
Tighten in specified sequence. Tighten 11 N.m (97 lb in) |
| 4 | Control Valve Body Bolt M6 x 53 (Qty: 2)
NOTE:
Tighten in specified sequence. Tighten 11 N.m (97 lb in) |
| 5 | Control Valve Body Assembly |
| 6 | Control Valve Body Spacer Plate Assembly |
| 7 | Manual Shaft Detent Spring Bolt M6 x 16
NOTE:
Tighten in specified sequence. Tighten 12 N.m (106 lb in) |
| 8 | Manual Shaft Detent Lever Spring Assembly |
| 9 | 1-2-3-4 Clutch Fluid Passage Seal
NOTE:
Discard the seal. It is not reusable. |
| 10 | Low/Reverse Clutch Fluid Passage Seal
NOTE:
Discard the seal. It is not reusable. |
