Removal Procedure

  1. Remove the front floor console trim plate. Front Floor Console Trim Plate Replacement (Equinox) , or Front Floor Console Trim Plate Replacement (Terrain)

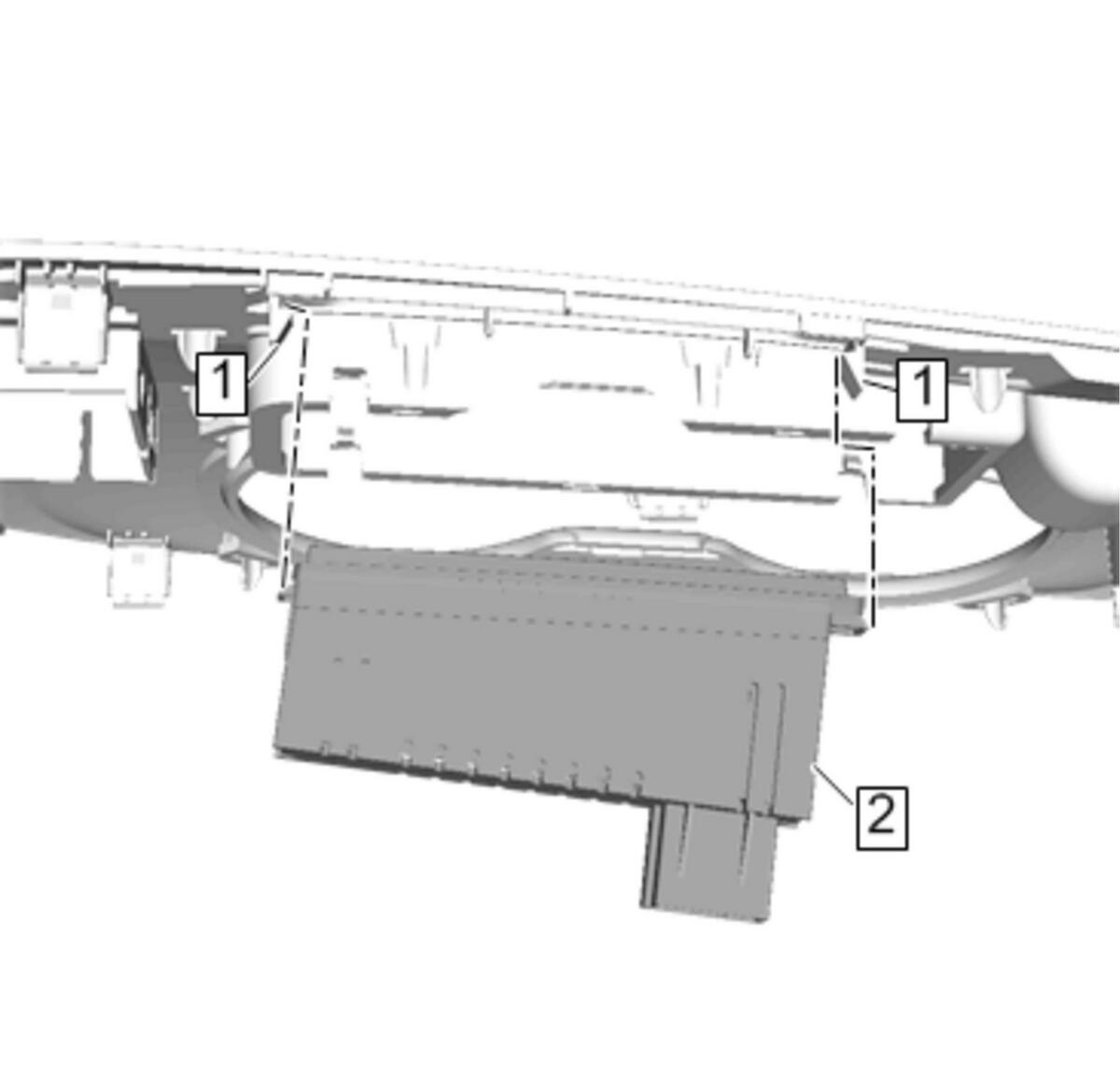

  2. GM4573551Courtesy of GENERAL MOTORS COMPANY

    Using a soft bladed trim tool, release the retaining tabs (1), then remove the automatic transmission control indicator assembly (2) from the front floor console trim plate.
