Front Floor Console Trim Plate Replacement (Equinox)

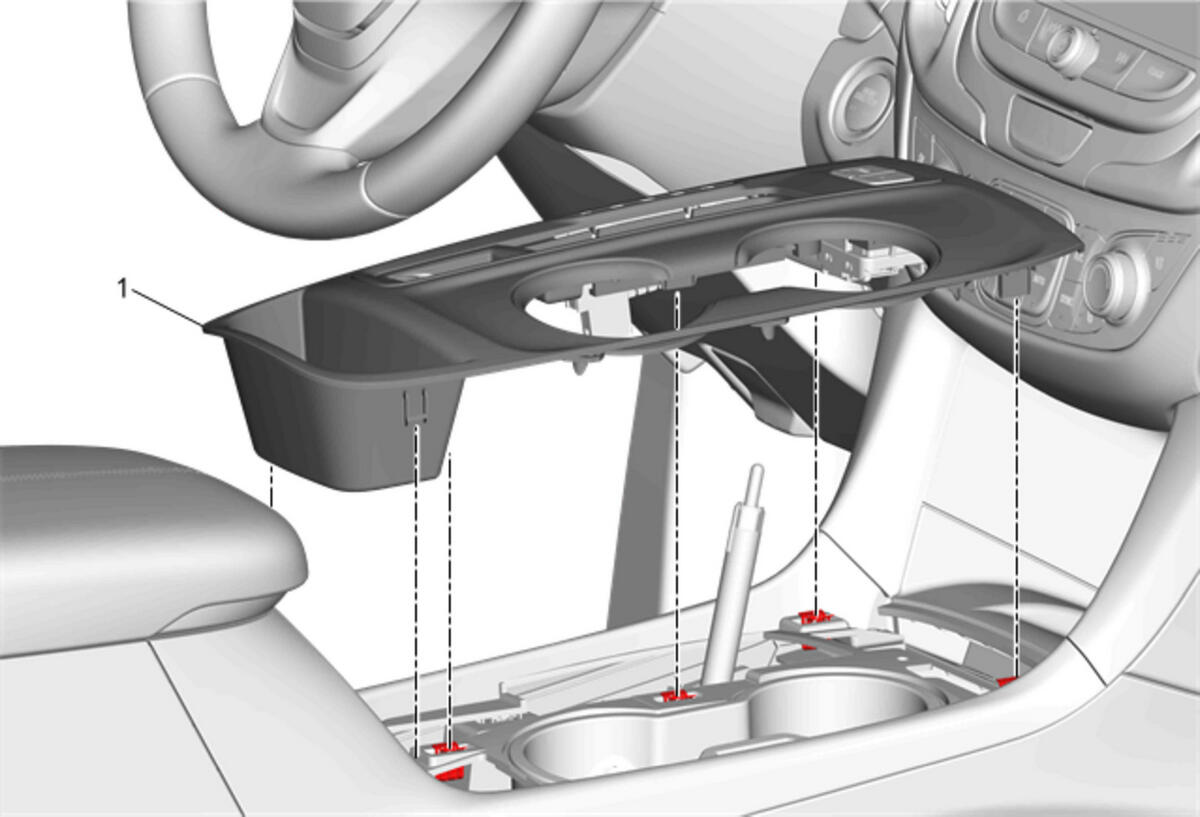

GM4578934Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Transmission Control Lever Knob Replacement
1 Front Floor Console Trim Plate

Procedure

  1. Use A Flat Bladed Plastic Trim Tool.
  2. Take Care In Releasing The Two Tabs On The Rear Of The Trim Plate.
  3. Disconnect The Electrical Connectors.
  4. Transfer Components As Necessary.
