Rear Side Door Wiring Harness Replacement
Courtesy of GENERAL MOTORS COMPANY

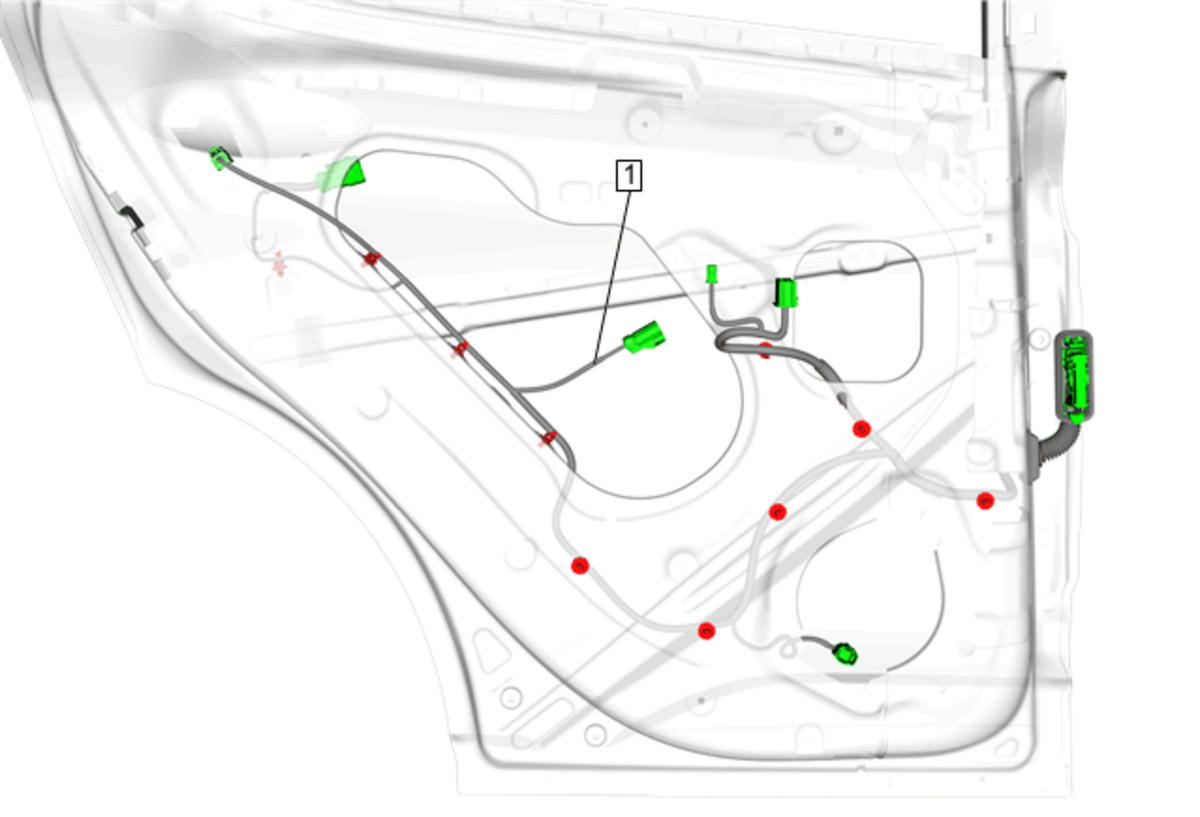

Callout
Component Name
Preliminary Procedures
Rear Side Door Trim Replacement
Rear Side Door Water Deflector Replacement
Radio Rear Side Door Speaker Replacement
1
Rear Side Door Wiring Harness
Procedure
Disconnect all electrical connectors and unclip harness.
