Rear Side Door Check Link Replacement

Courtesy of GENERAL MOTORS COMPANY

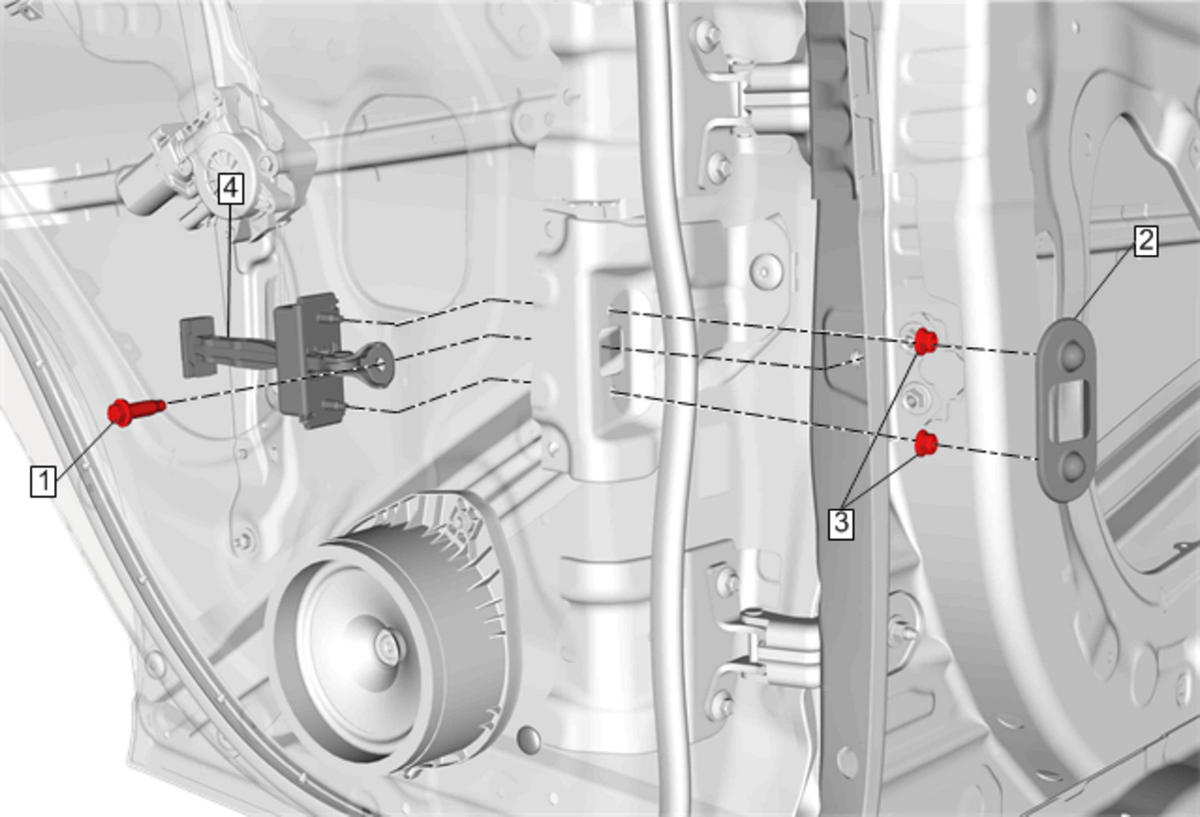

Callout	Component Name
Preliminary Procedures Place the window in the full up position. Rear Side Door Trim Replacement Rear Side Door Water Deflector Replacement
1	Rear Side Door Check Link Bolt CAUTION: Fastener Caution Tighten 22 N.m (16 lb-ft)
2	Rear Side Door Check Link Grommet
3	Rear Side Door Check Link Nut [ 2x ] Tighten 9 N.m (80 lb/in)
4	Rear Side Door Check Link
