Side Window Defogger Outlet Grille Replacement - Right Side

Courtesy of GENERAL MOTORS COMPANY

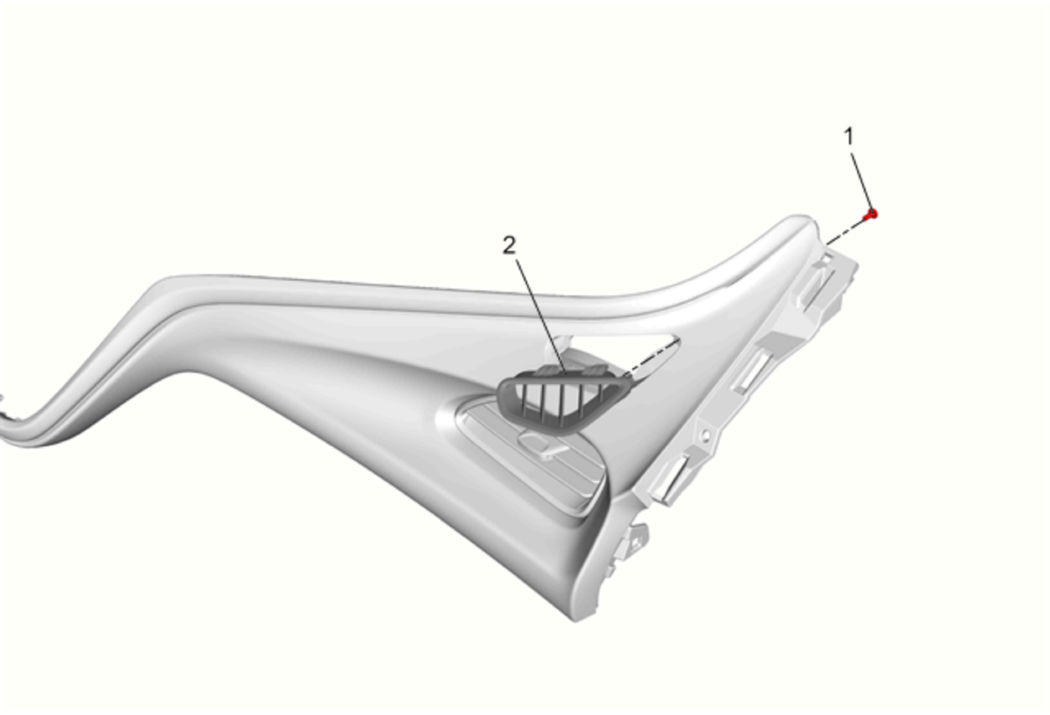

Callout	Component Name
Preliminary Procedure Instrument Panel Trim Pad Replacement - Right Side
1	Side Window Defogger Outlet Grille Screw CAUTION: Refer to Fastener Caution .
2	Side Window Defogger Outlet Grille Procedure Use a flat bladed plastic trim tool. Release the plastic retaining tabs.

Callout

Component Name

Side Window Defogger Outlet Grille Screw

CAUTION:

Side Window Defogger Outlet Grille

Procedure
