Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

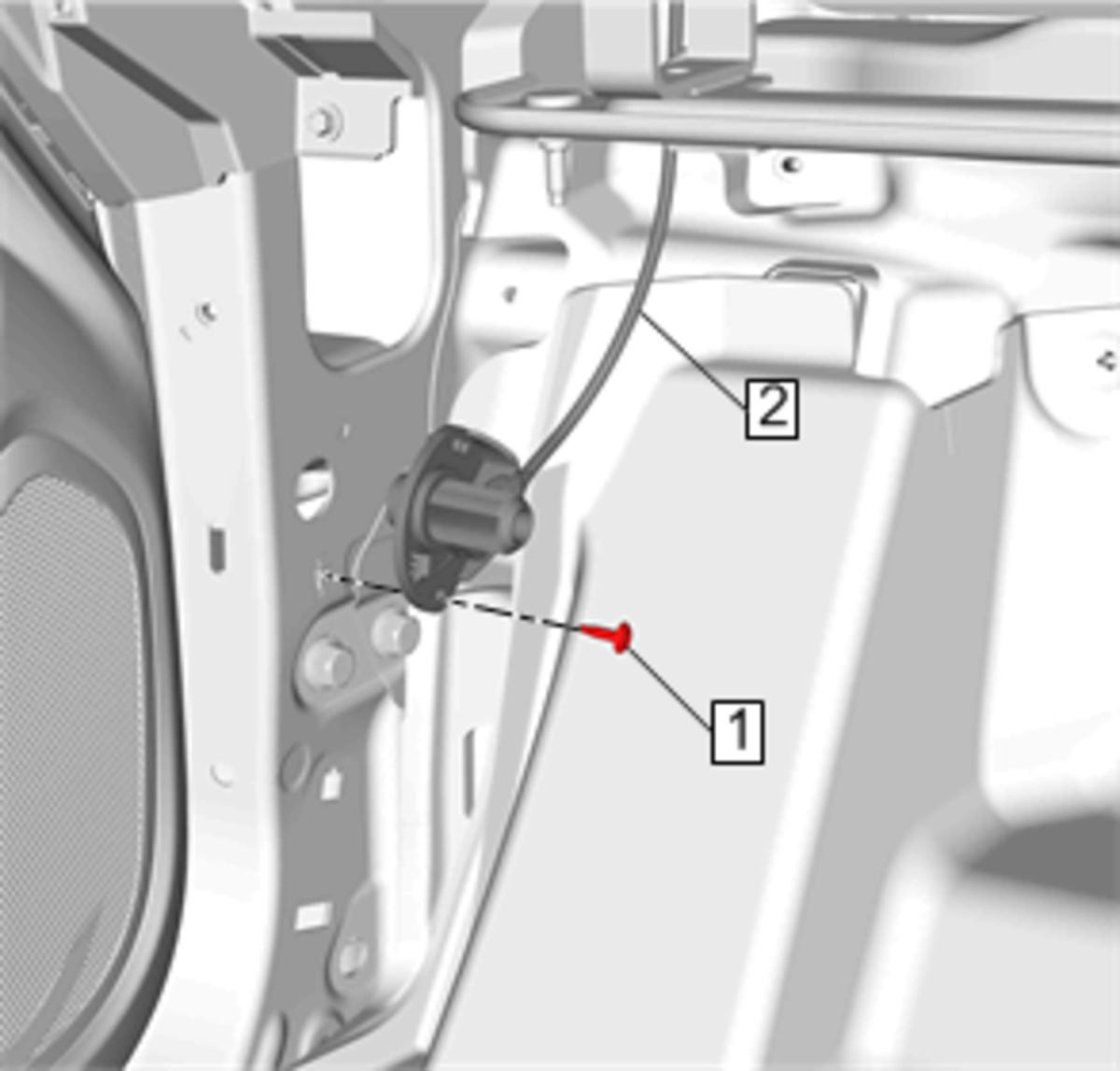

Position the hood primary latch release cable (2) to the hinge pillar inner panel. Install the hood primary latch release cable handle screw (1) and tighten to 2 N.m (18 lb/in).

Courtesy of GENERAL MOTORS COMPANY

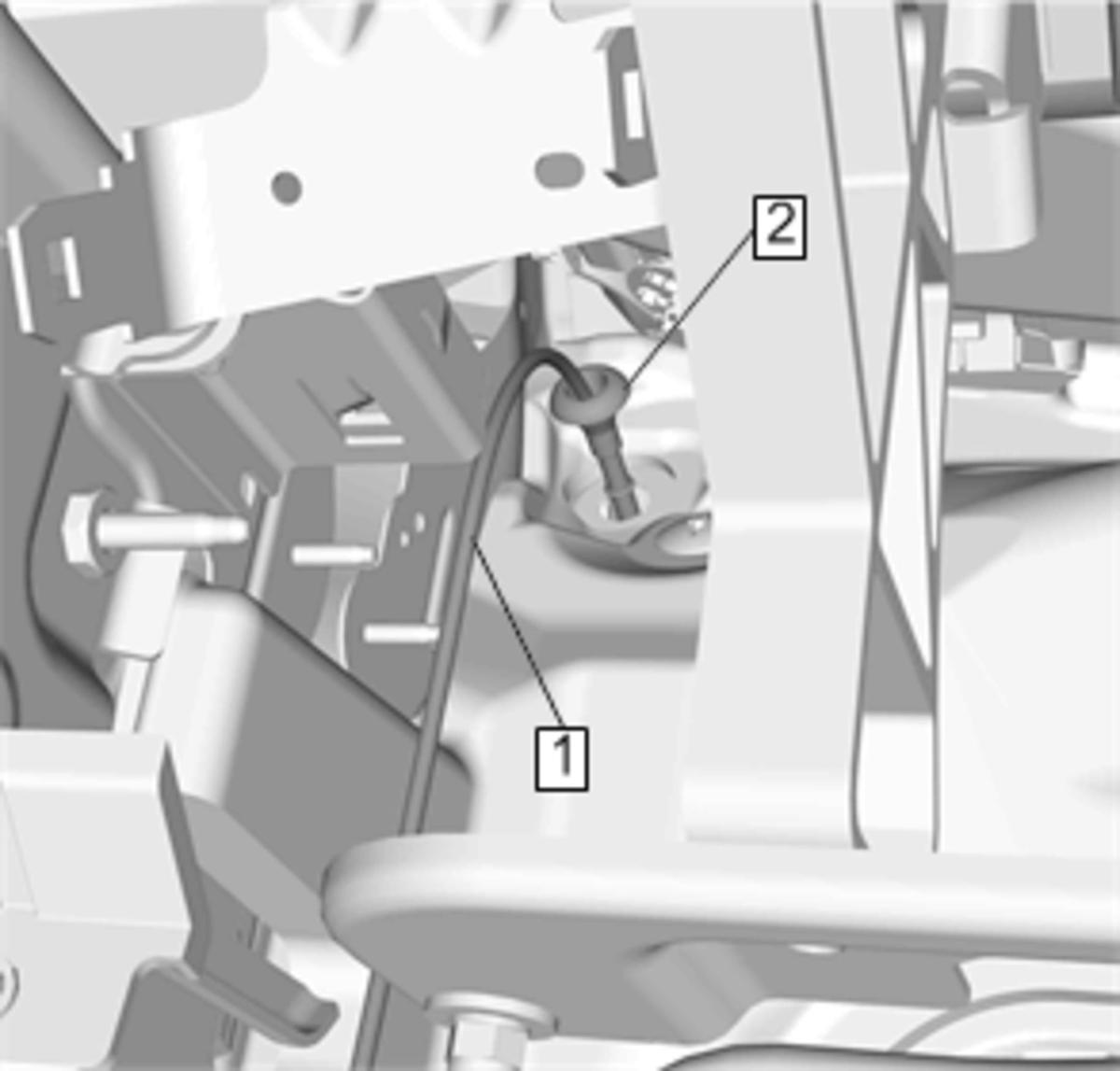

Install the hood primary latch release cable grommet to the dash.

Courtesy of GENERAL MOTORS COMPANY

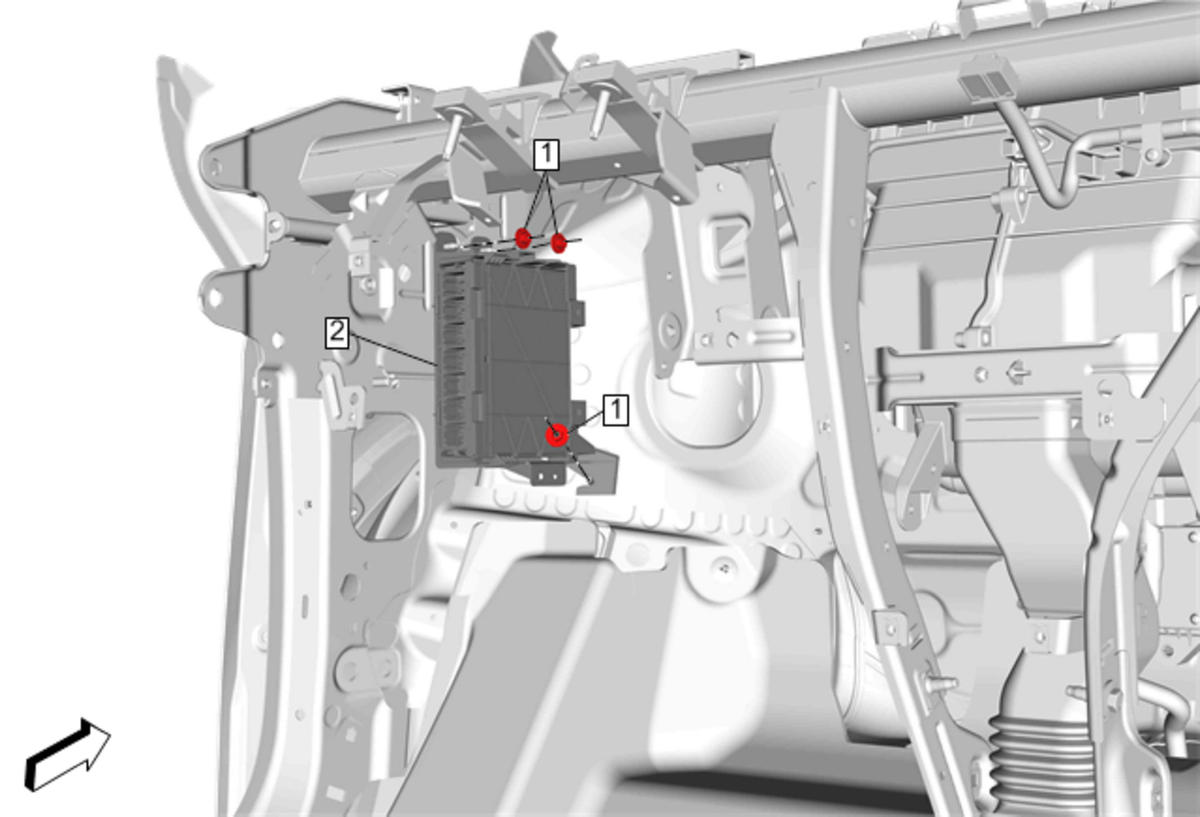

Body Control Module Bracket (2) - Install - Body Control Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

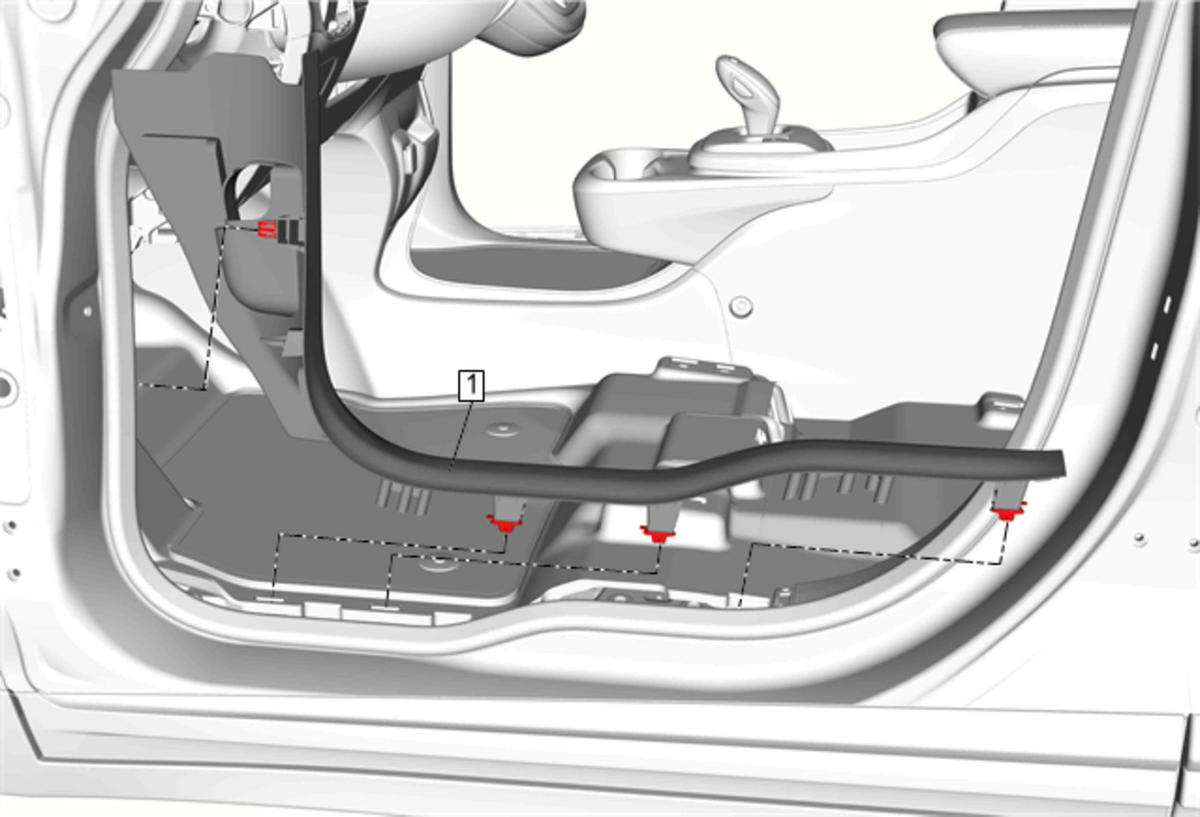

Front Side Door Sill Garnish Molding (1) - Install - Front Side Door Sill Garnish Molding Replacement

Courtesy of GENERAL MOTORS COMPANY

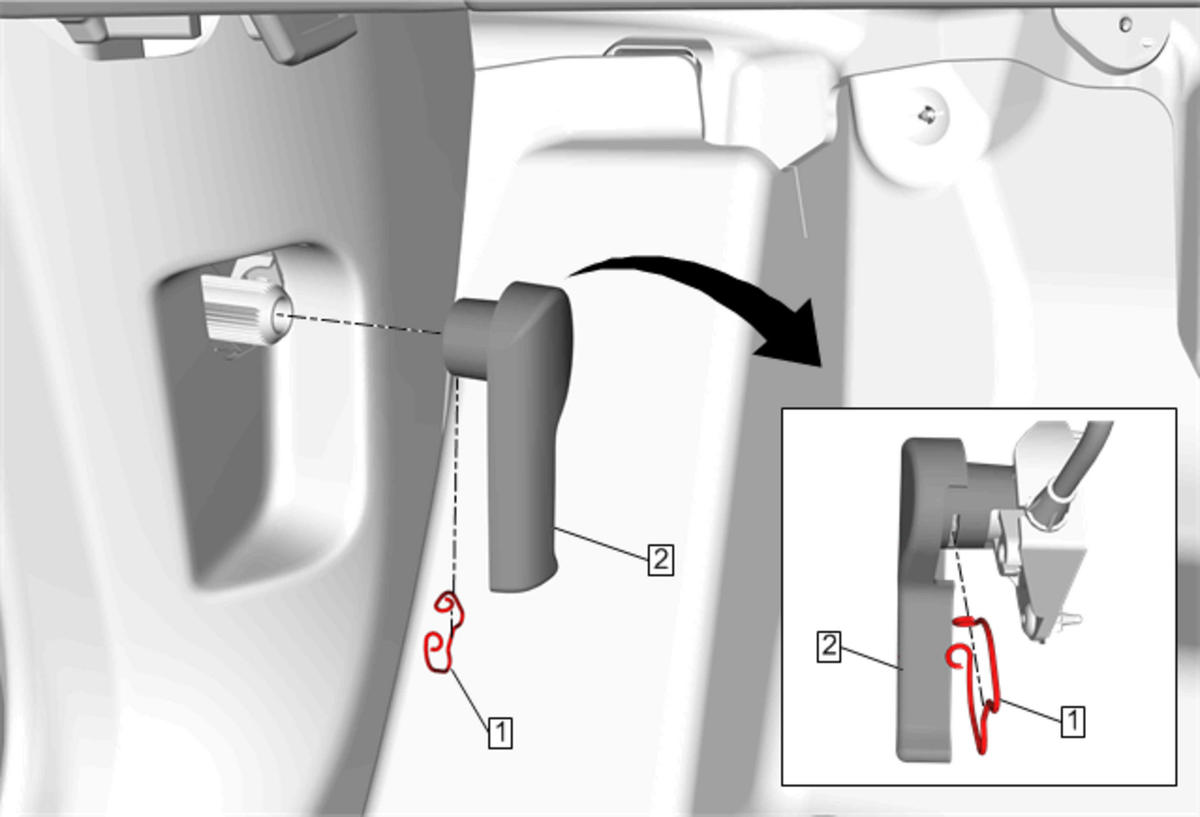

Hood Primary Latch Release Cable Handle (2) - Install - Hood Primary Latch Release Cable Handle Replacement

Courtesy of GENERAL MOTORS COMPANY

Dash Panel Upper Extension Panel Extension (2) - Install - Dash Upper Extension Panel Extension Replacement

Courtesy of GENERAL MOTORS COMPANY

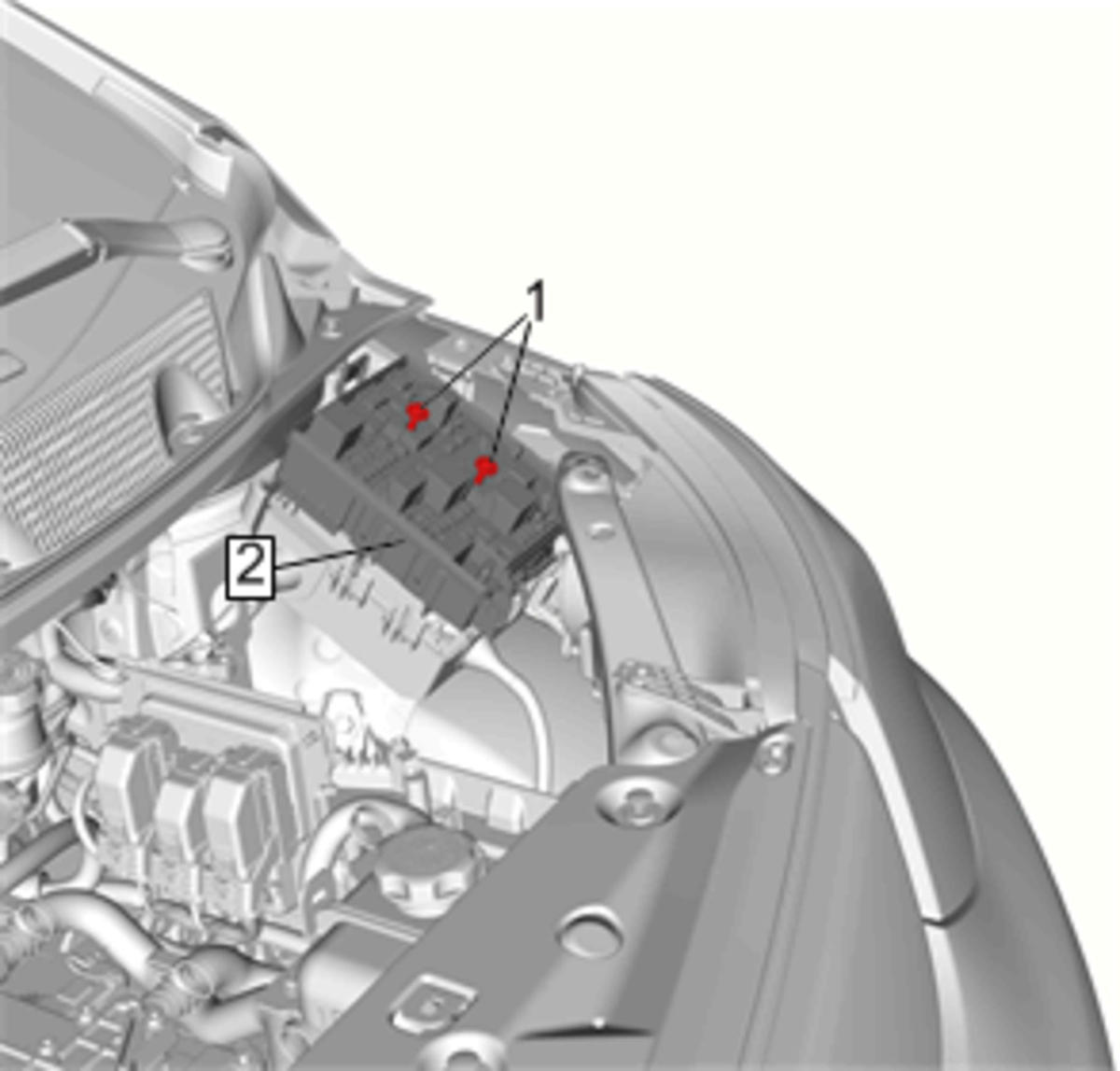

Engine Wiring Harness Junction Block (2) - Install - Engine Wiring Harness Junction Block Replacement

Courtesy of GENERAL MOTORS COMPANY

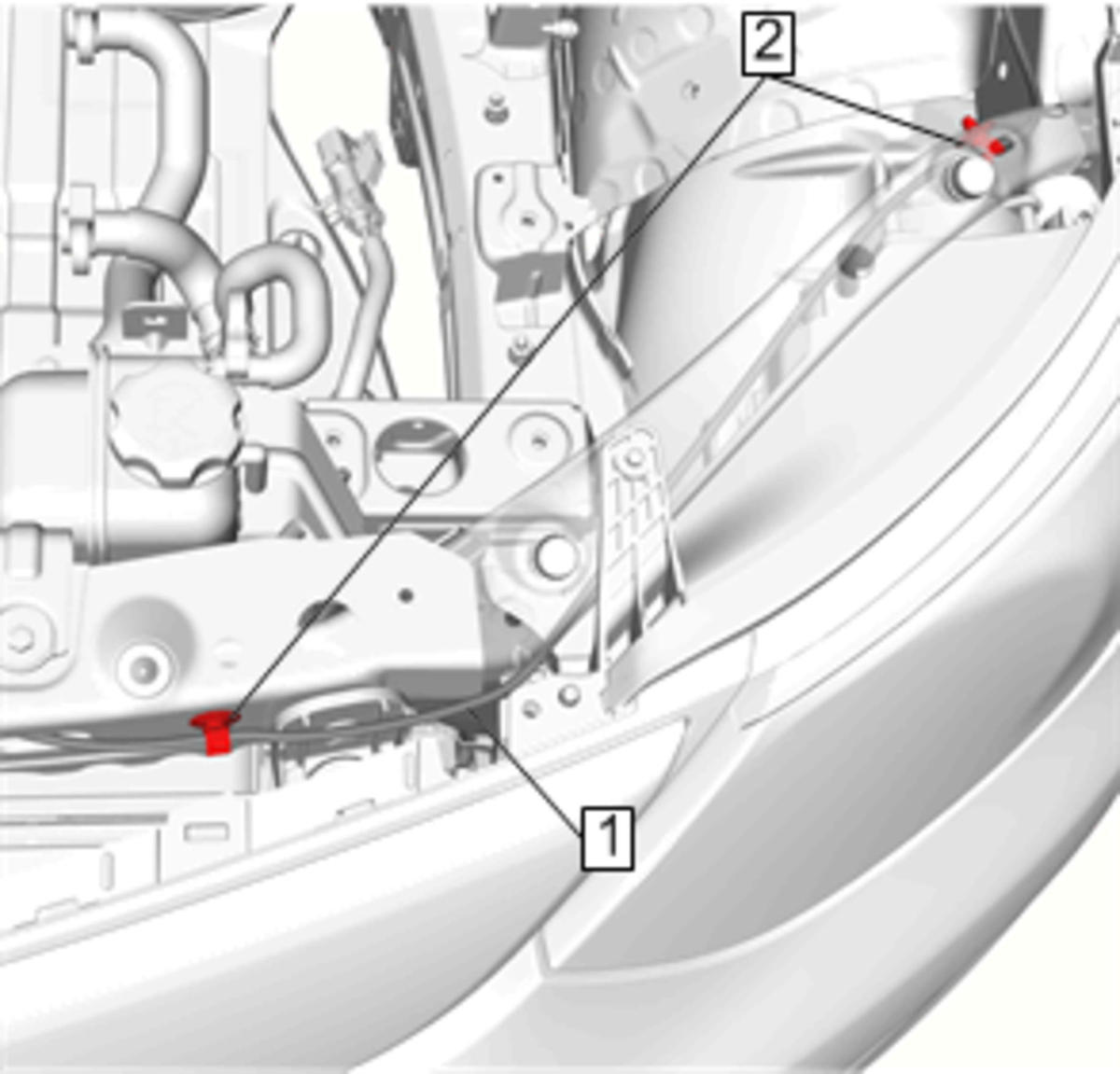

Install the hood primary latch release cable (1) to the hood release cable retainers (2).

Courtesy of GENERAL MOTORS COMPANY

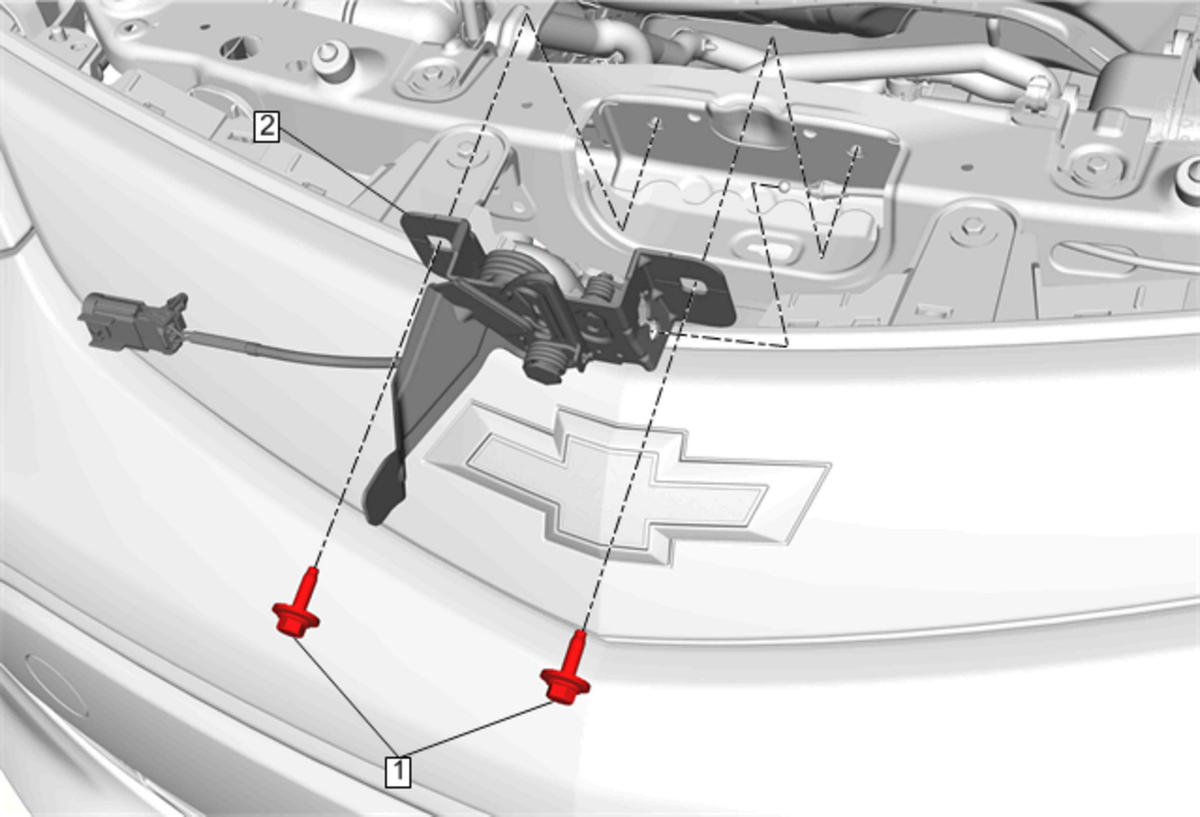

Hood Primary and Secondary Latch (2) - Install - Hood Primary and Secondary Latch Replacement

Courtesy of GENERAL MOTORS COMPANY

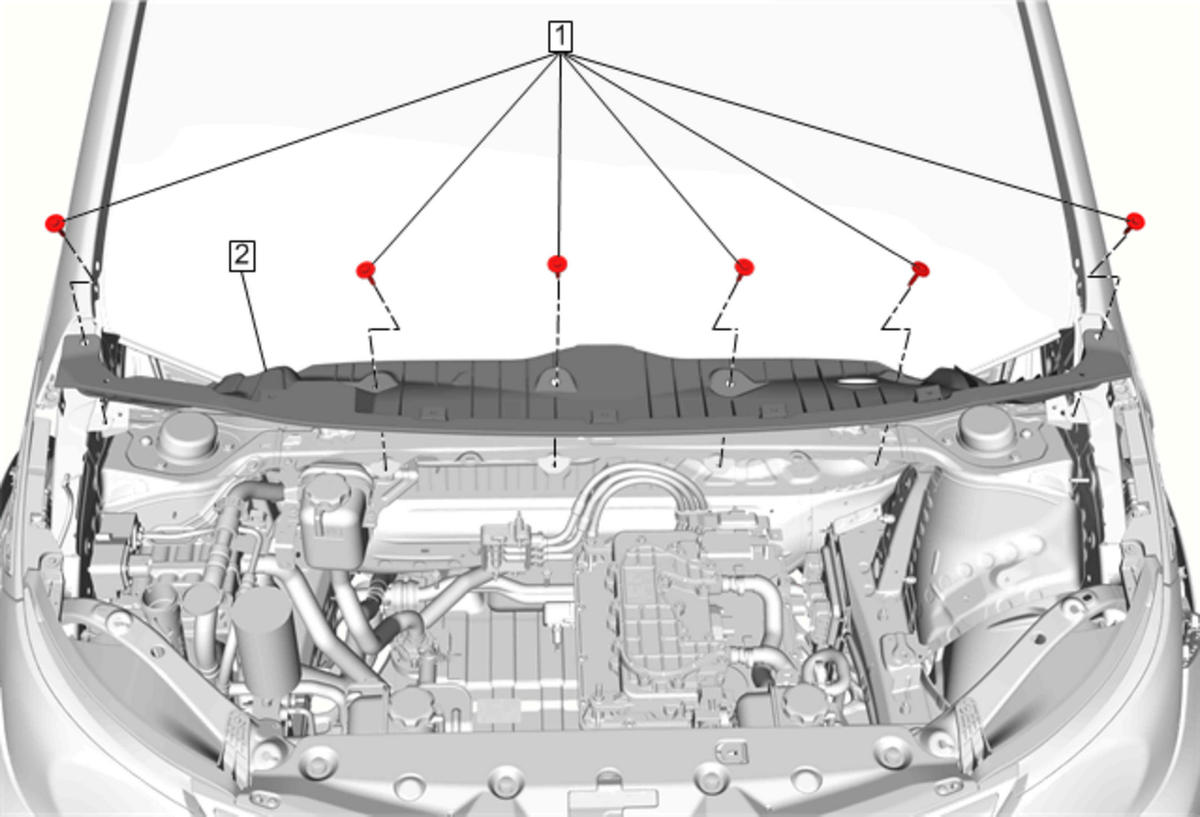

Front Compartment Front Sight Shield (3) - Install - Front Compartment Front Sight Shield Replacement .
