Windshield Wiper System Module Replacement

Courtesy of GENERAL MOTORS COMPANY

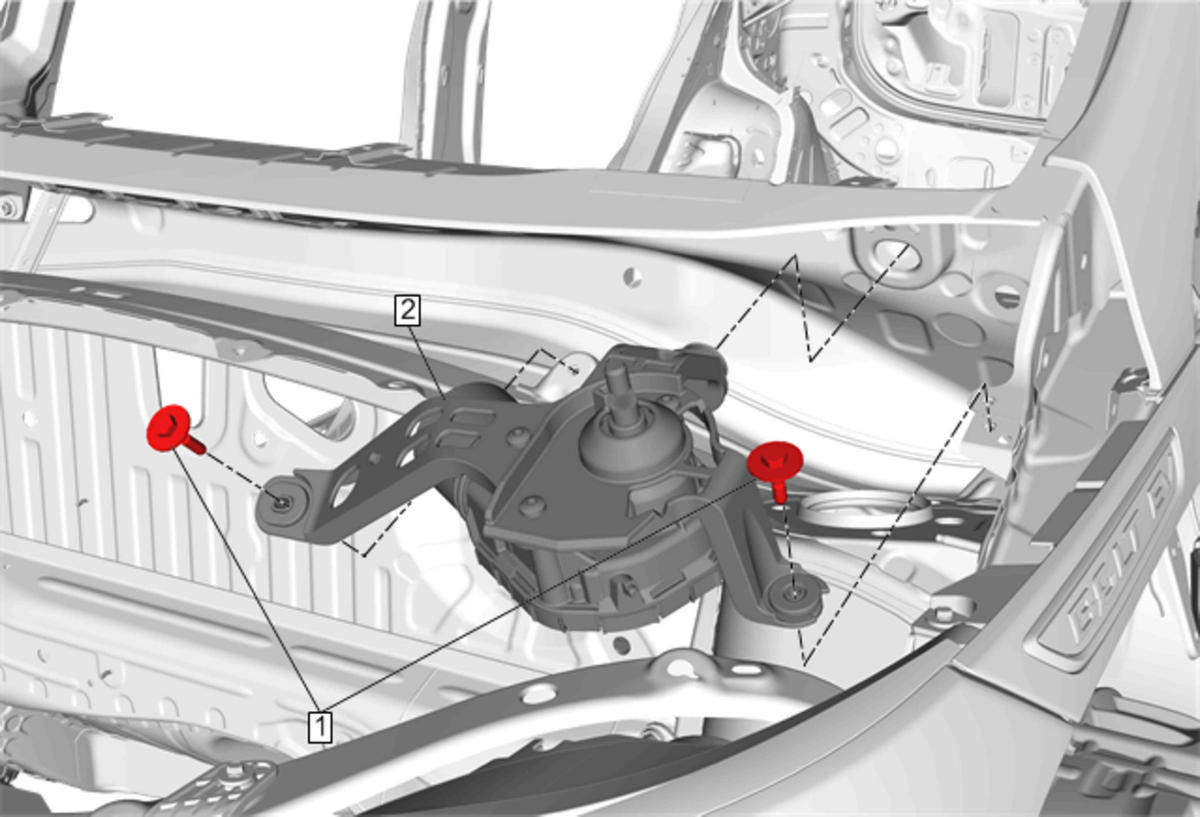

Callout	Component Name
NOTE: The windshield wiper arm adjustment procedure contains important instructions. Always reference the adjustment procedure when removing or replacing the windshield wiper system module. Windshield Wiper Arm Adjustment Preliminary Procedure Air Inlet Grille Panel Replacement
1	Windshield Wiper System Module Bolt [ 2x ] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb/in)
2	Windshield Wiper System Module Procedure Disconnect the electrical connector.
