Installation Procedure

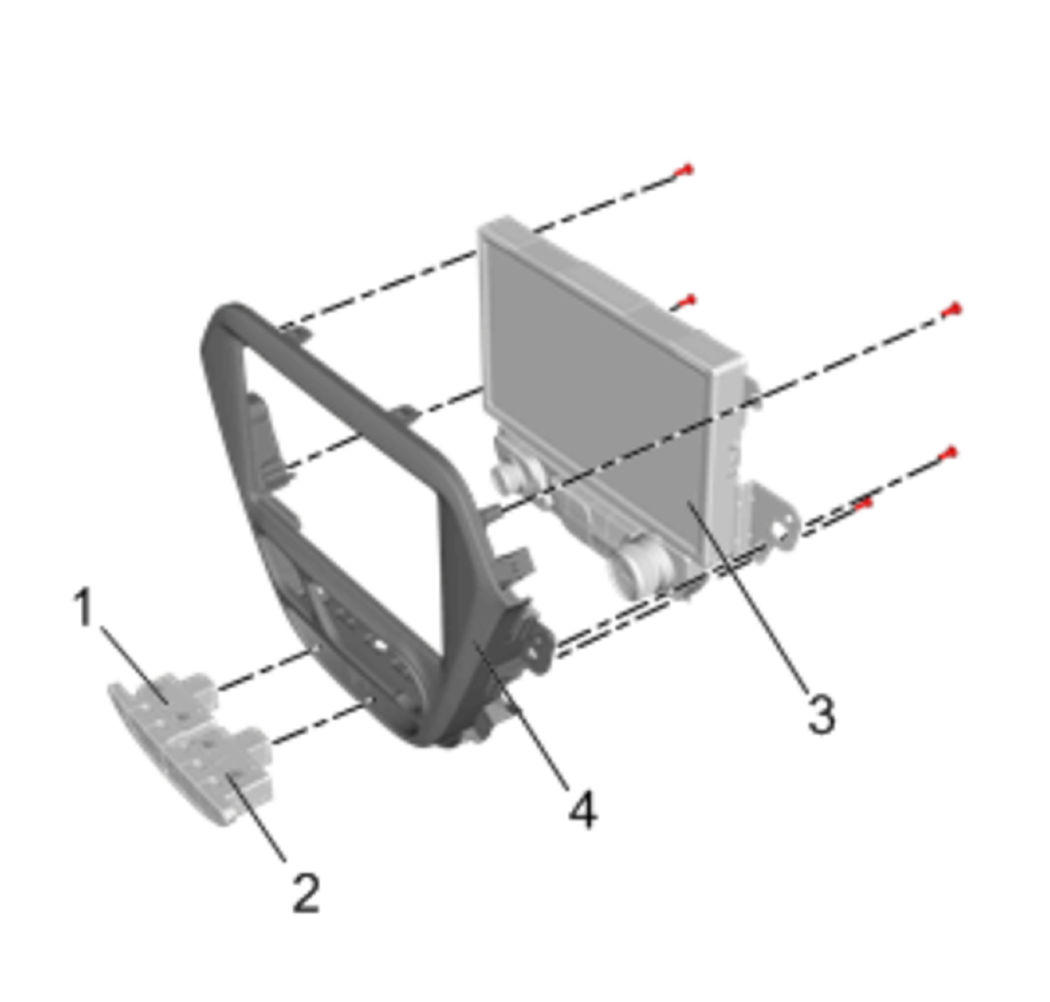

Courtesy of GENERAL MOTORS COMPANY

Driver Information Display (3) @ Instrument Panel Trim Plate - Install - Driver Information Display Replacement
Instrument Panel Center Accessory Function Switch (2) @ Instrument Panel Trim Plate - Install - Instrument Panel Center Accessory Function Switch Replacement
Hazard Warning Switch (1) @ Instrument Panel Trim Plate - Install - Hazard Warning Switch Replacement
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

Connect the electrical connectors.
Instrument Panel Trim Plate Assembly (2) @ Instrument Panel - Install
Instrument Panel Bolt (1) - Install and tighten [ 2x ] 2.5 N.m(22 lb/in)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Pad - Right Side (2) - Install - Instrument Panel Trim Pad Replacement - Right Side
