Removal Procedure
- Disable the SIR system. SIR Disabling and Enabling
Steering Column (2) - Remove - Steering Column Replacement
Front Floor Console (1) - Remove - Front Floor Console Replacement

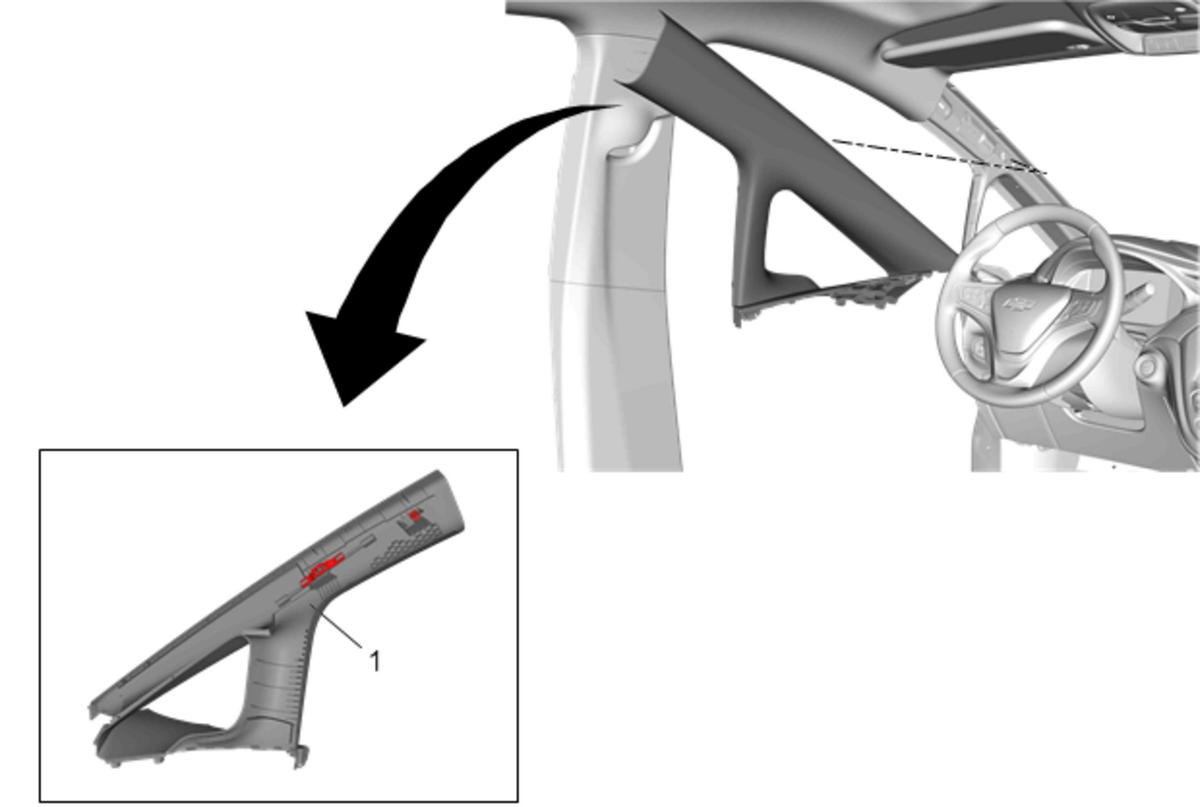

Windshield Garnish Molding (1) - Remove [ 2x ] - Windshield Garnish Molding Replacement
Instrument Panel Outer Trim Cover - Right Side (2) - Remove - Instrument Panel Outer Trim Cover Replacement
Instrument Panel Trim Pad - Left Side (2) - Remove - Instrument Panel Trim Pad Replacement - Left Side
Radio Front Speaker Grille (2) - Remove [ 2x ] - Radio Front Speaker Grille Replacement
Sun Load, Ambient Light, and Charge Indicator Sensor (3) - Remove - Sun Load, Ambient Light, and Charge Indicator Sensor Replacement
Instrument Panel Compartment (3) - Remove - Instrument Panel Compartment Replacement
On/Off Vehicle Switch (1) - Remove - On/Off Vehicle Switch Replacement
Instrument Panel Trim Pad - Right Side (2) - Remove - Instrument Panel Trim Pad Replacement - Right Side
Remove the instrument panel trim plate (2) with Driver Information Display, Hazard Warning Switch and Instrument Panel Center Accessory Function Switch. Instrument Panel Trim Plate Replacement
Heater and Air Conditioning Remote Control (1) - Remove - Heater and Air Conditioning Remote Control Replacement
Communication Interface Module Bracket (2) - Remove - Communication Interface Module Bracket Replacement
Instrument Panel Lower Trim Panel (2) - Remove - Instrument Panel Lower Trim Panel Replacement
Instrument Panel Steering Column Upper Trim Cover (1) - Remove - Steering Column Upper Trim Cover Replacement
Instrument Cluster (2) - Remove - Instrument Cluster Replacement
Keyless Entry Control Module Bracket (2) - Remove - Keyless Entry Control Module Bracket Replacement
Instrument Panel Bolt (1) - Remove [ 6x ]
Instrument Panel Compartment Center Upper Bracket Bolt (1) - Remove [ 1x ]
- Instrument Panel Bolt (2) - Remove [ 3x ]
Instrument Panel Airbag Bolt (1) - Remove [ 3x ]
- Disconnect the instrument panel airbag electrical connector (2).
Instrument Panel Bolt (1) - Remove [ 3x ]
Slide the instrument panel assembly (1) rearward.
Note the location and routing of the instrument panel wiring harness prior to removal to ensure proper installation.
- Disconnect the wiring harness from the instrument panel carrier.
- With the aid of an assistant, remove the instrument panel carrier assembly (1) from the vehicle.
- Transfer components as necessary.
