Installation Procedure

WARNING: This page is about a different variant/trim than selected.

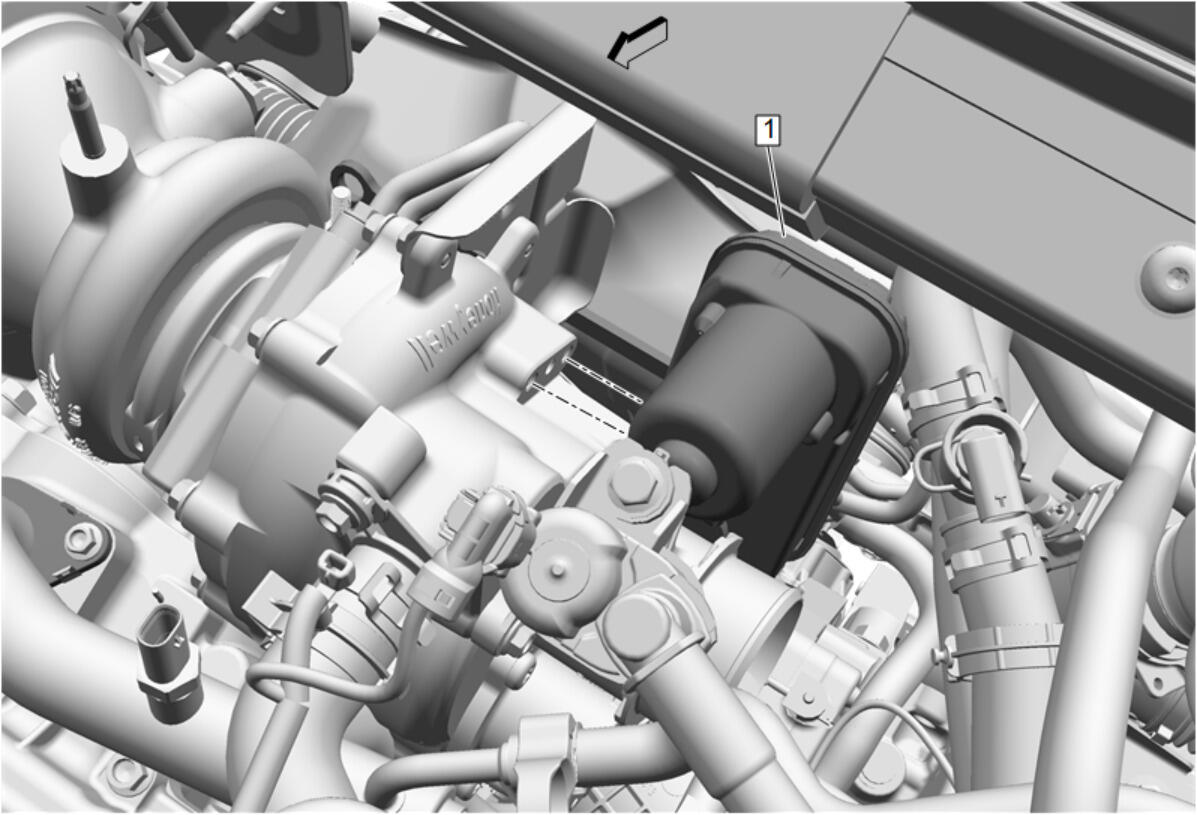

  1. GM5069179Courtesy of GENERAL MOTORS COMPANY

    Install the turbocharger wastegate actuator (1) to the turbocharger assembly.

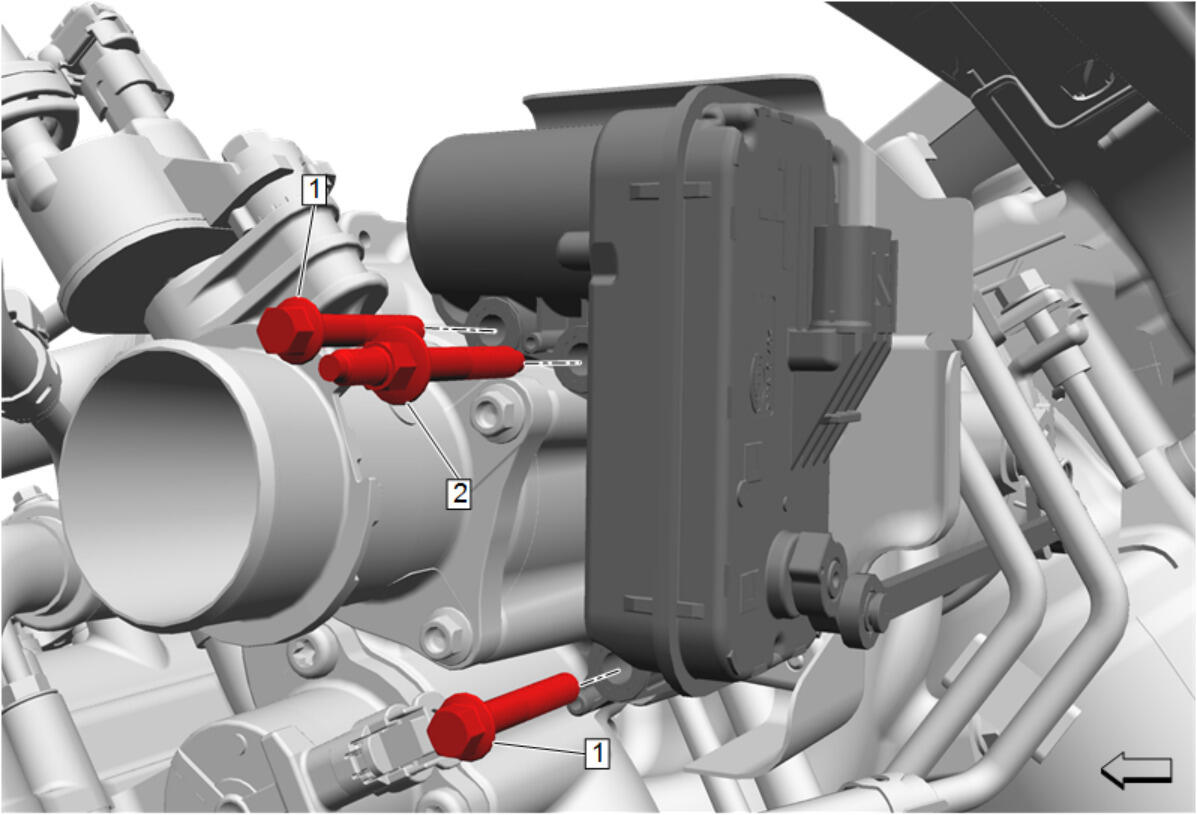

  2. GM5068931Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install the turbocharger wastegate actuator stud (2) and tighten to 6.5 N.m (58 lb in).

  3. Install the 2 turbocharger wastegate actuator bolts (1) and tighten to 6.5 N.m (58 lb in).

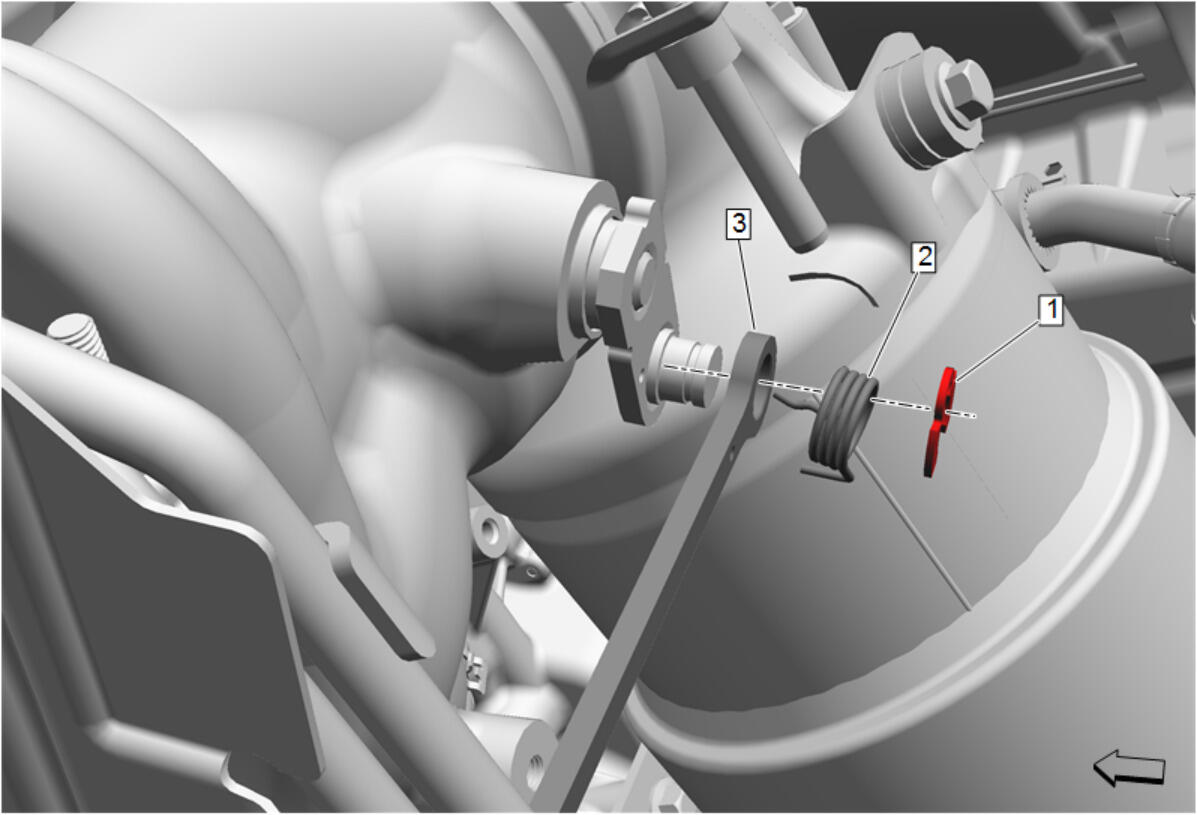

  4. GM5068788Courtesy of GENERAL MOTORS COMPANY

    Install the compressor air intake turbo wastegate actuator rod (3) to the turbocharger assembly.

  5. Install the wastegate valve spring (2).
  6. Install the turbocharger wastegate actuator retainer (1).

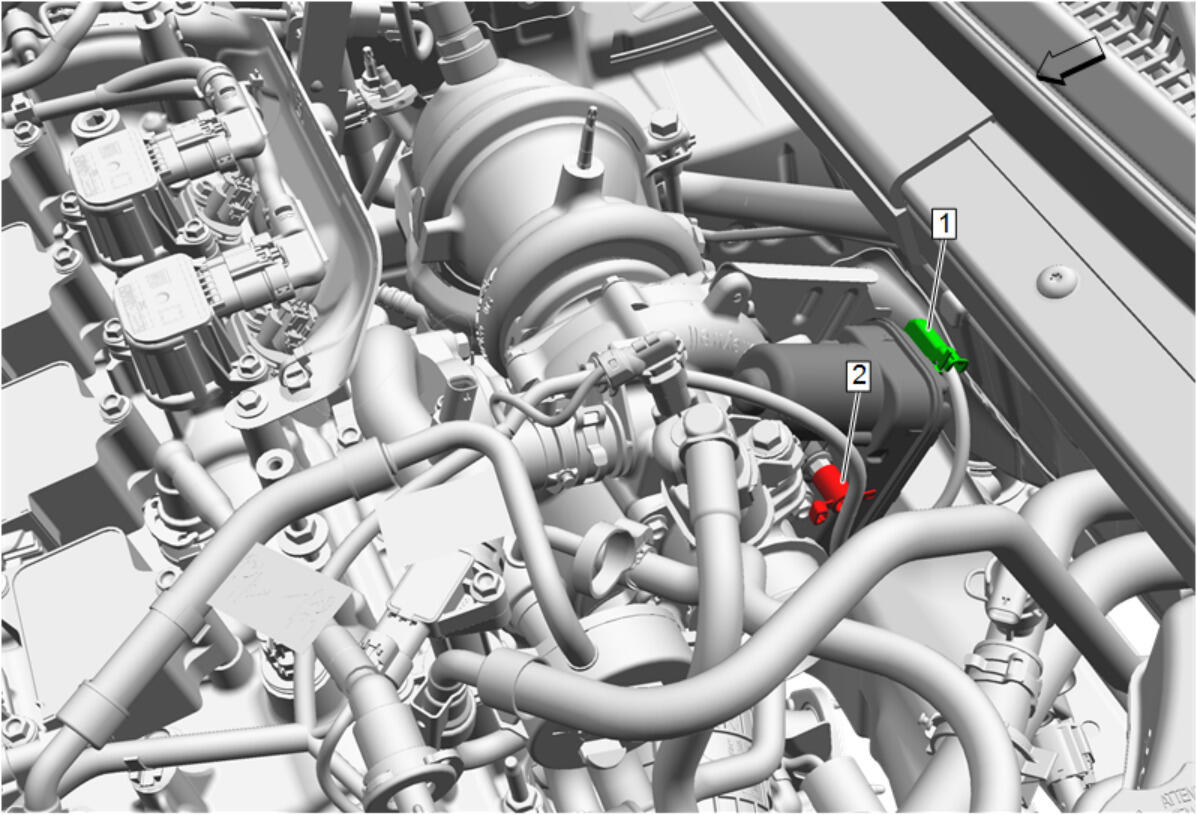

  7. GM5068767Courtesy of GENERAL MOTORS COMPANY
  8. Connect the engine wiring harness retainer (2)
  9. Connect the turbocharger wastegate actuator electrical connector (1).
  10. Install the turbocharger outlet duct connector. Turbocharger Outlet Duct Connector Replacement
  11. Install the turbocharger heat shield. Turbocharger Heat Shield Replacement
  12. Perform turbocharger wastegate learn. Turbocharger Wastegate Learn
