Turbocharger Outlet Duct Connector Replacement
WARNING: This page is about a different variant/trim than selected.

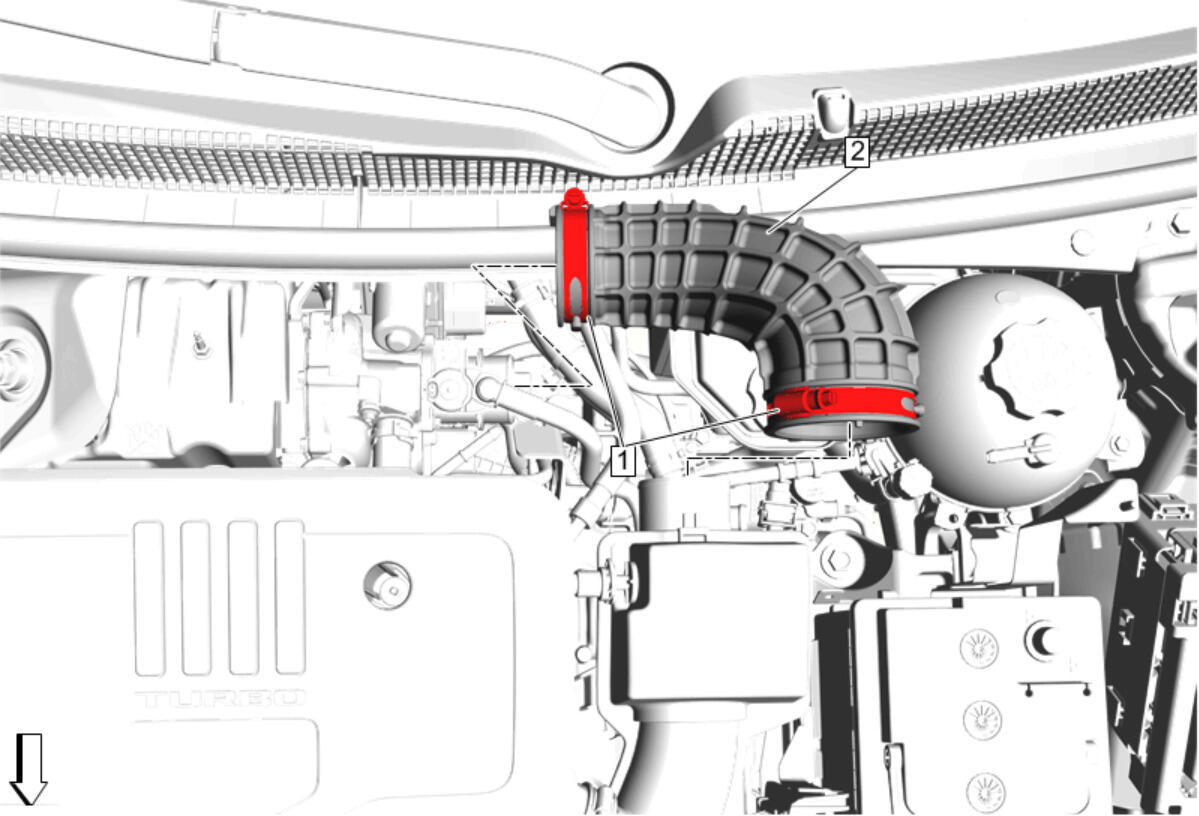

| Callout | Component Name |
|---|---|
| 1 | Turbocharger Outlet Duct Connector Clamp [2x]
CAUTION:
Refer to Fastener Caution . Tighten 4 N.m (35 lb in) |
| 2 | Turbocharger Outlet Duct Connector |
