Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    WARNING:

    Refer to Diesel/Gasoline Vapors Warning .

    WARNING:

    Refer to Safety Glasses Warning .

  1. Drain the fuel tank to just below the filler pipe. Fuel Tank Draining
  2. Fuel Tank Filler Pipe Housing - Remove - Fuel Tank Filler Pipe Housing Replacement
  3. Rear Wheelhouse Liner-Left Side - Remove - Rear Wheelhouse Liner Replacement
  4. GM5142921Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Pipe Bolt (1) - Remove

  5. Tie Strap (2) - Remove and DISCARD
  6. Retainer (3) - Remove

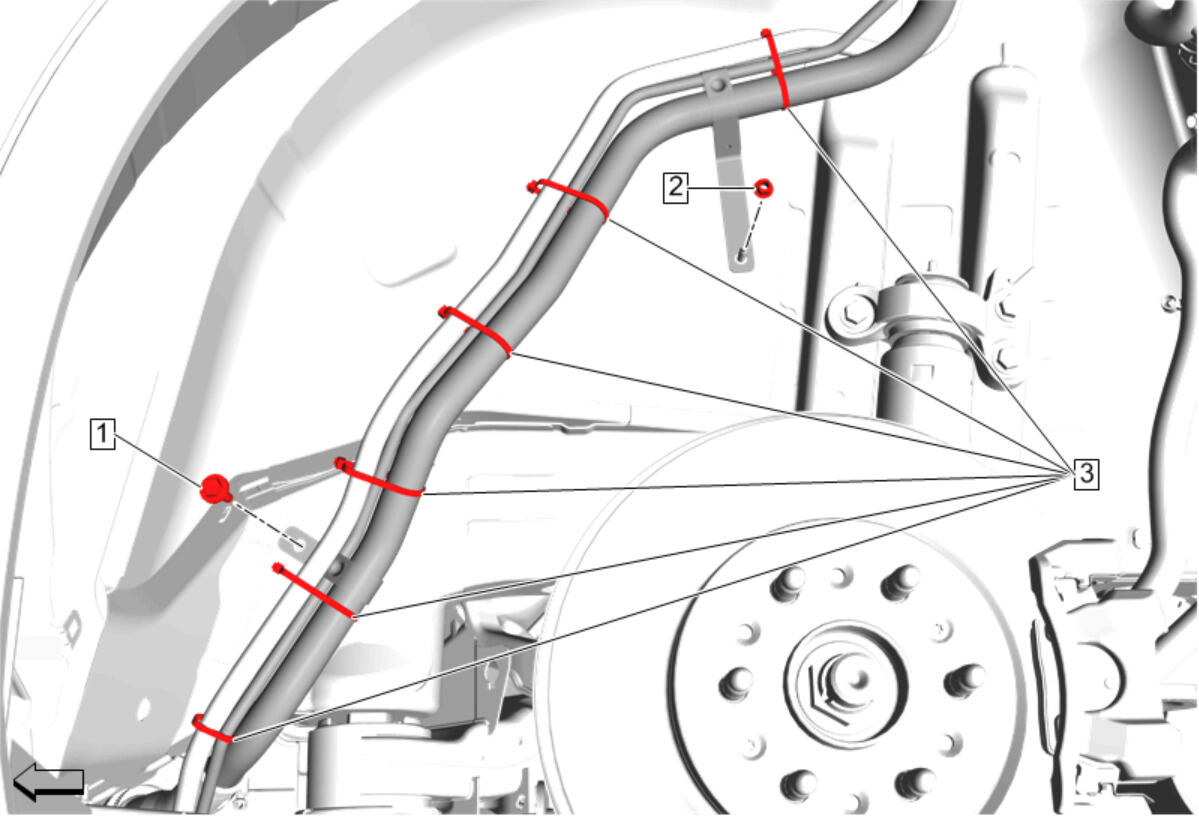

  7. GM5142922Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Pipe Ground Bolt (1) - Remove

  8. Fuel Tank Filler Pipe Bracket Nut (2) - Remove
  9. Tie Strap (3) - Remove and DISCARD [6x]

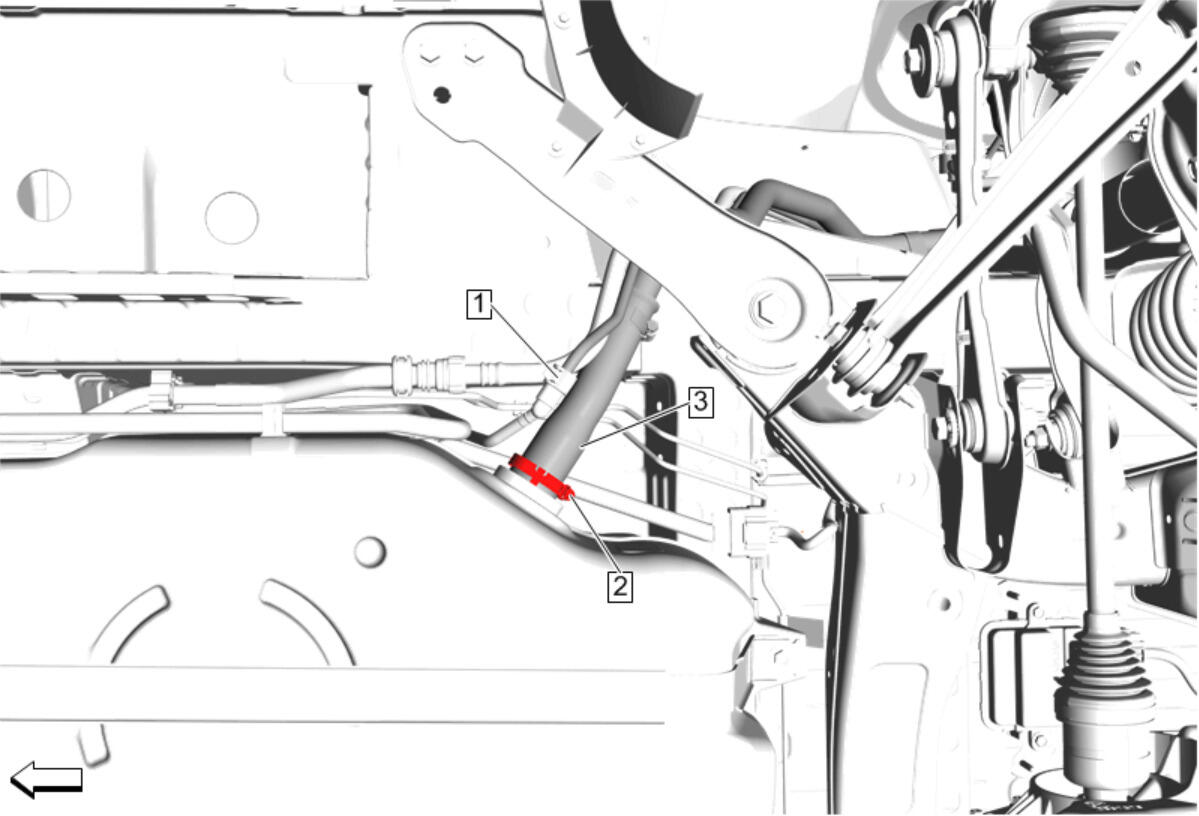

  10. GM5142923Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Vent Hose (1) - Disconnect - Plastic Collar Quick Connect Fitting Service

  11. Fuel Tank Filler Hose Clamp (2) - Remove
  12. Fuel Tank Filler Hose (3) - Remove

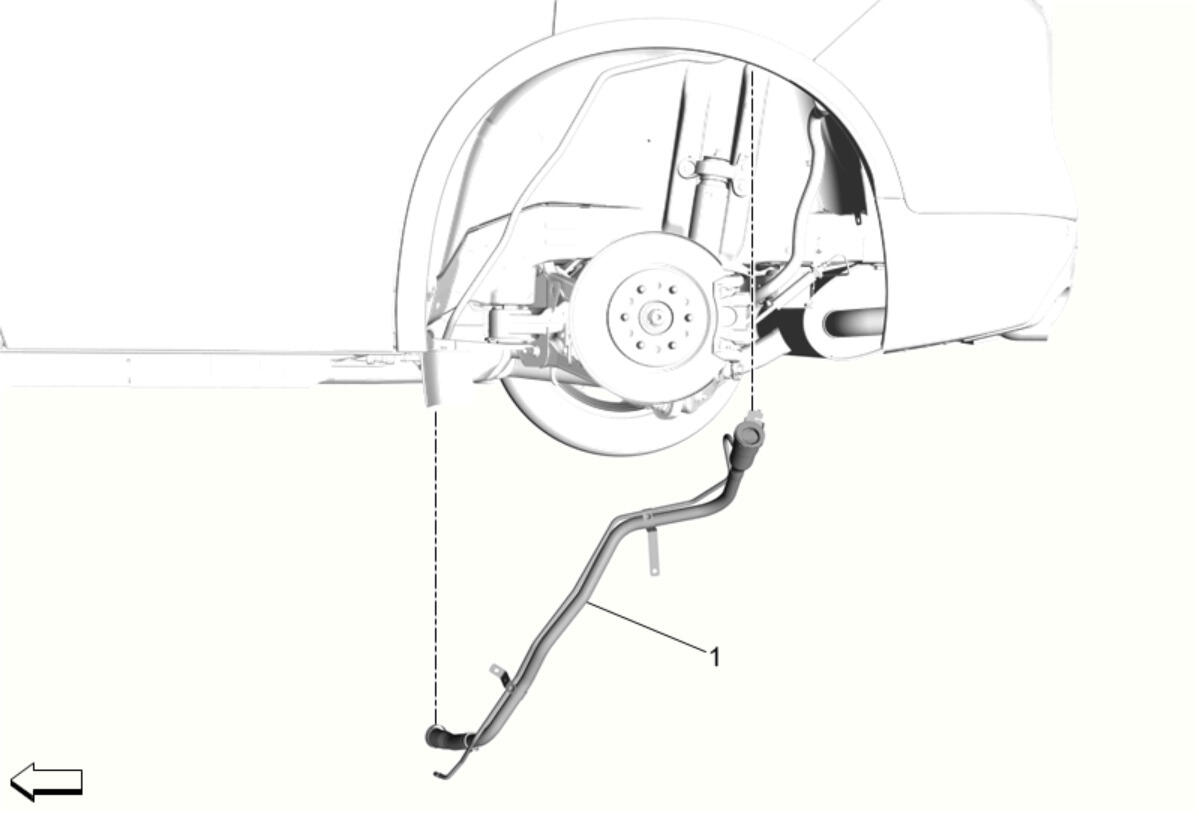

  13. GM5142925Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Pipe (1) - Remove
