Rear Wheelhouse Liner Replacement

Courtesy of GENERAL MOTORS COMPANY

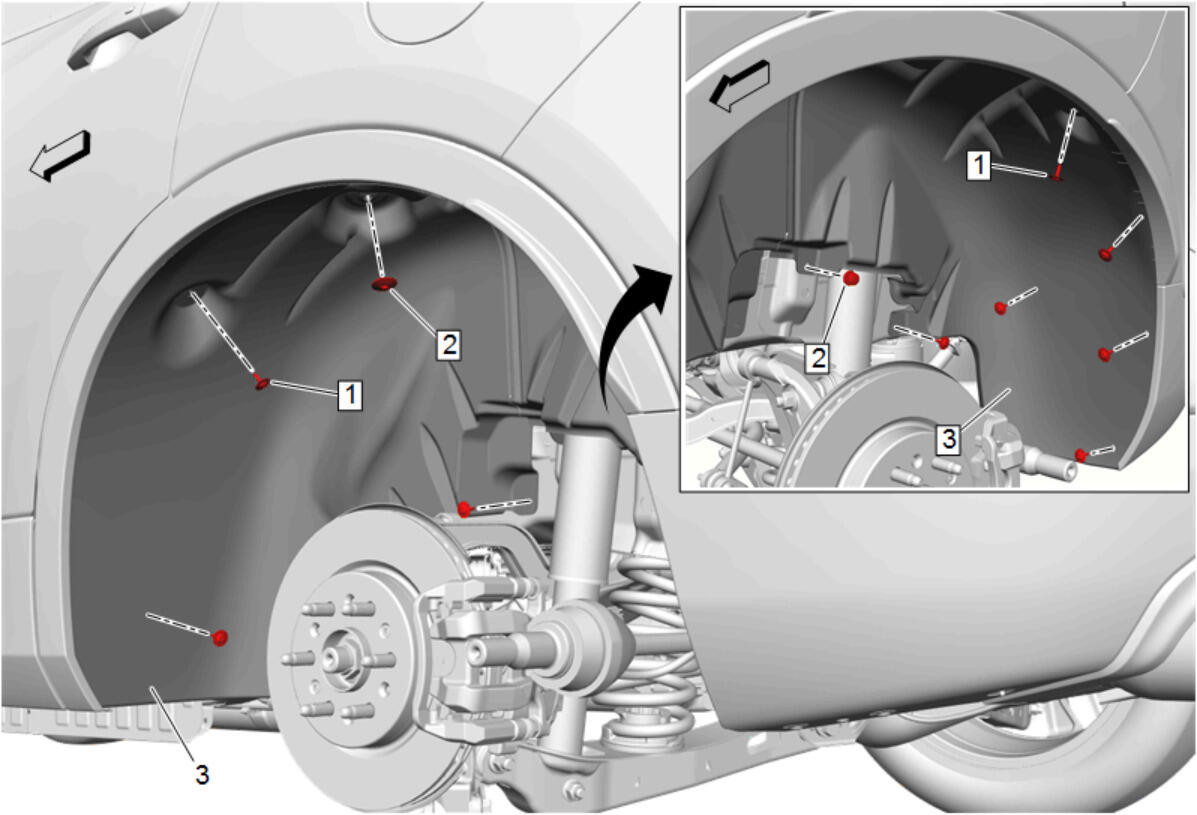

Callout	Component Name
Preliminary Procedures Rear Tire Front Air Deflector Replacement Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation
1	Rear Wheelhouse Liner Bolt [9x] CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Rear Wheelhouse Liner Retainer [2x]
3	Rear Wheelhouse Liner Procedure Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
