Installation Procedure

WARNING: This page is about a different variant/trim than selected.

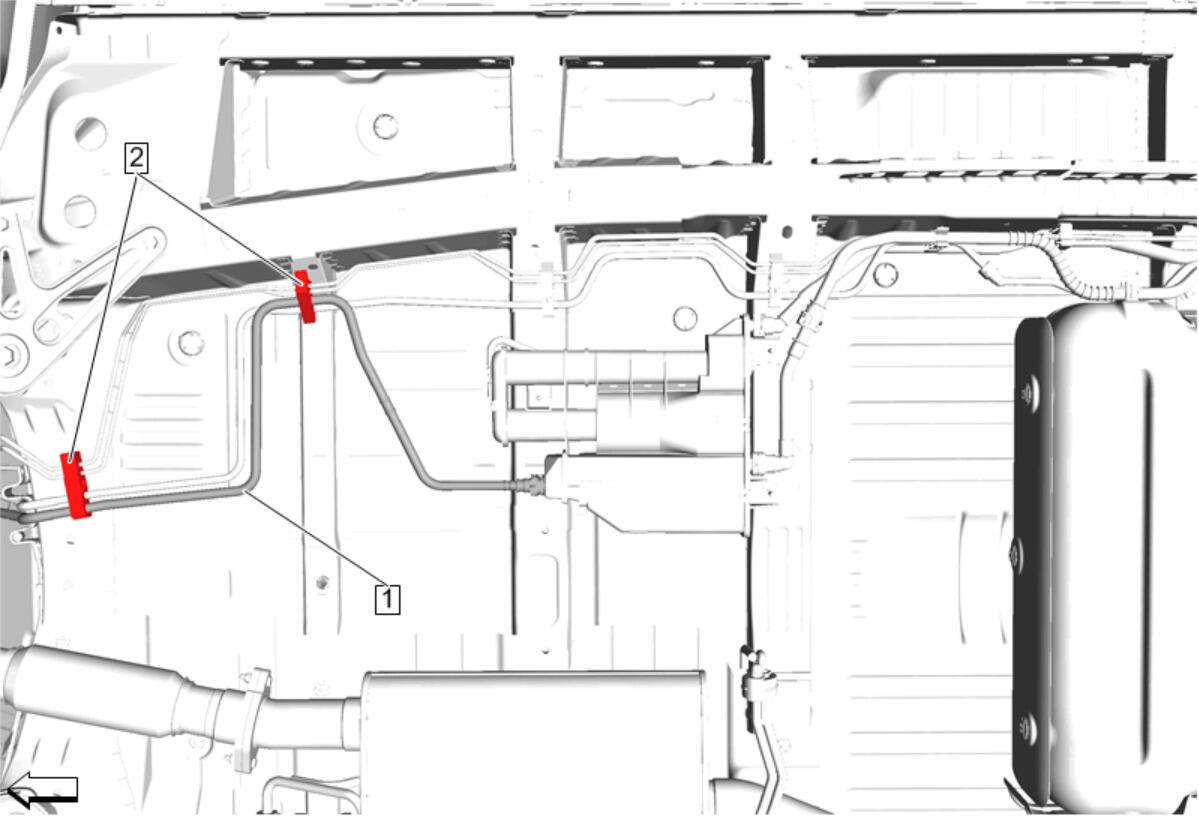

  1. GM5336888Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Pipe (1) - Install

  2. Evaporative Emission Pipe (1) @ Retainer (2) - Install [2x]
  3. Evaporative Emission Pipe (1) - Connect - Plastic Collar Quick Connect Fitting Service
  4. Lower the vehicle.

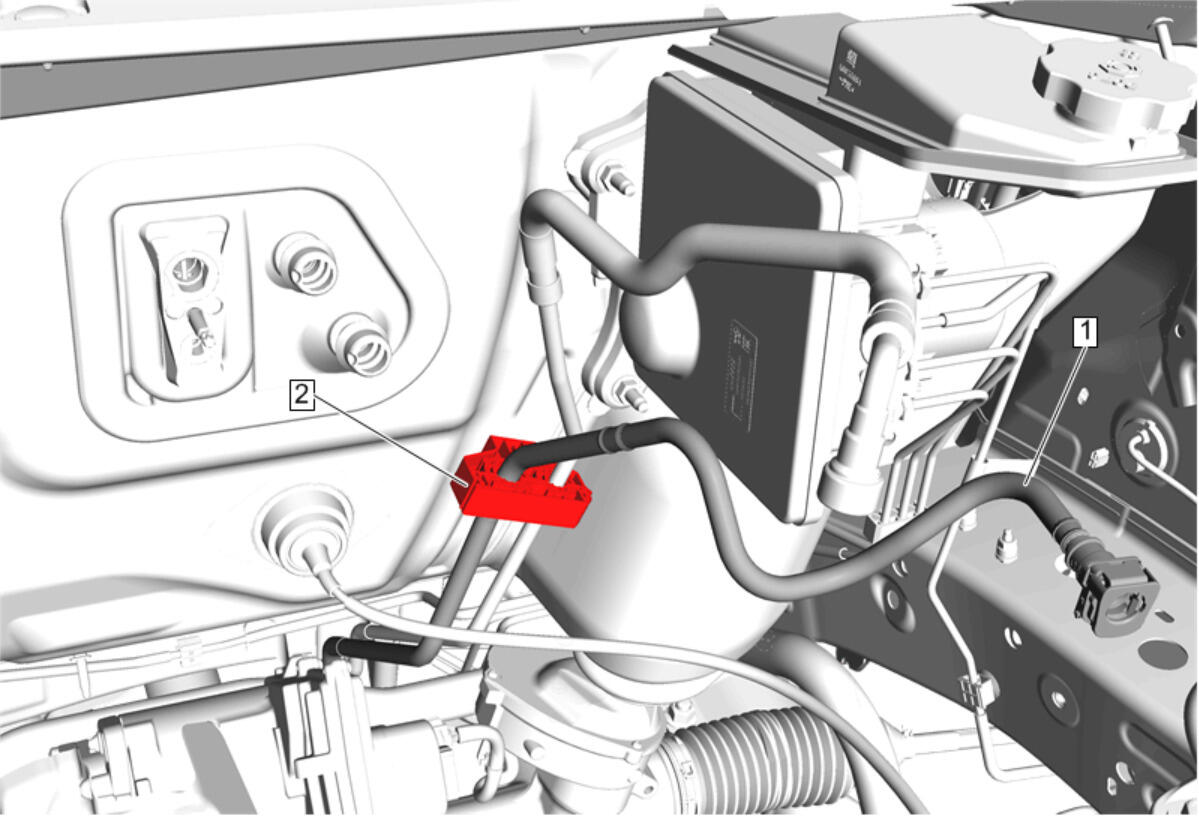

  5. GM5219446Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Pipe (1) @ Retainer (2) - Install

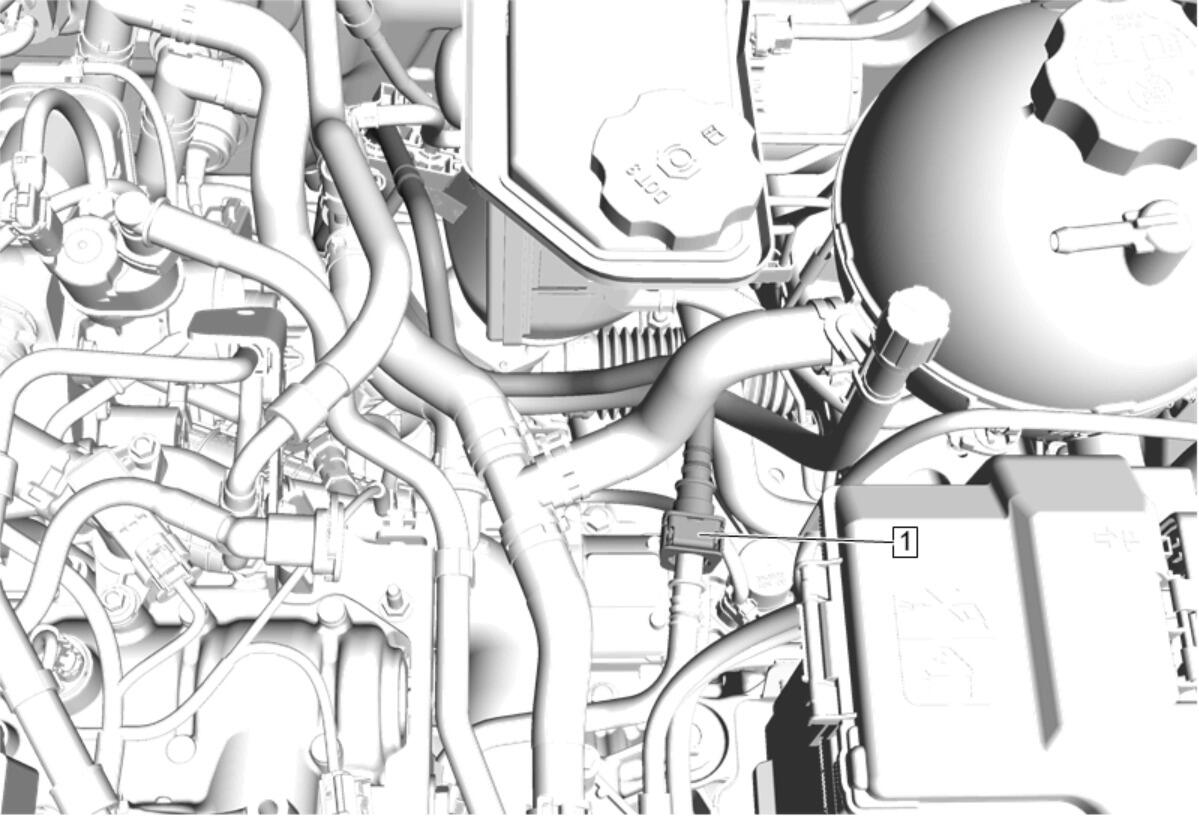

  6. GM5219445Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Pipe (1) - Connect - Plastic Collar Quick Connect Fitting Service

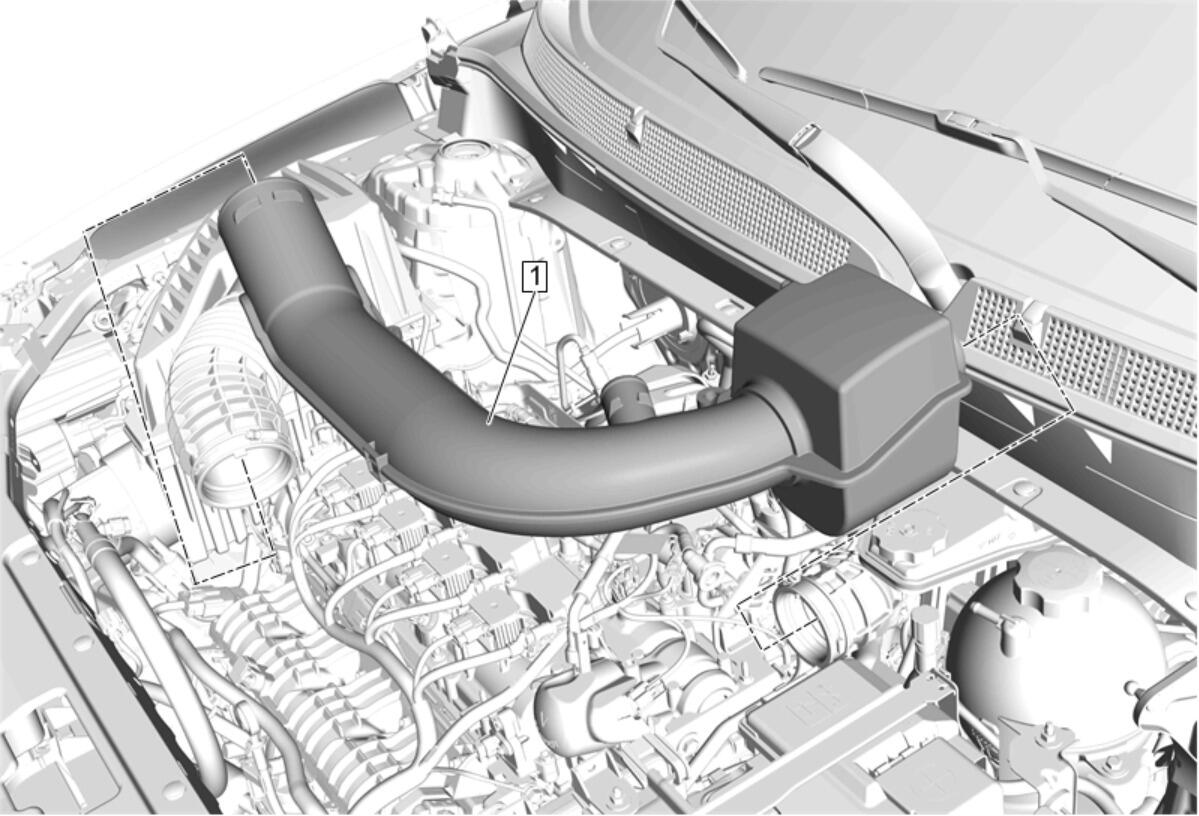

  7. GM5214725Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Intermediate Duct (1) - Install - Air Cleaner Outlet Intermediate Duct Replacement

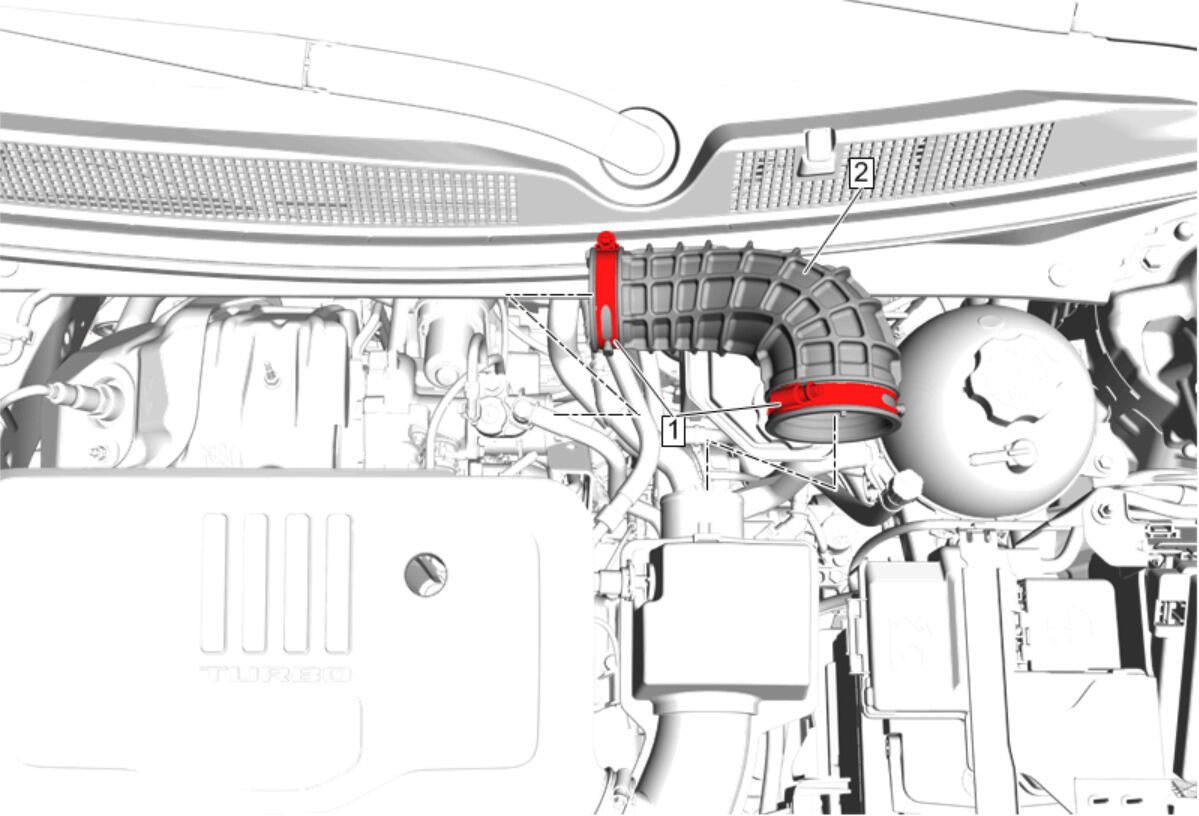

  8. GM5214715Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Outlet Duct Connector (2) - Install - Turbocharger Outlet Duct Connector Replacement
