Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. GM5160645Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Outlet Duct Connector (2) - Remove - Turbocharger Outlet Duct Connector Replacement

  2. GM5235837Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Purge Solenoid Valve (2) - Remove - Evaporative Emission Canister Purge Solenoid Valve Replacement

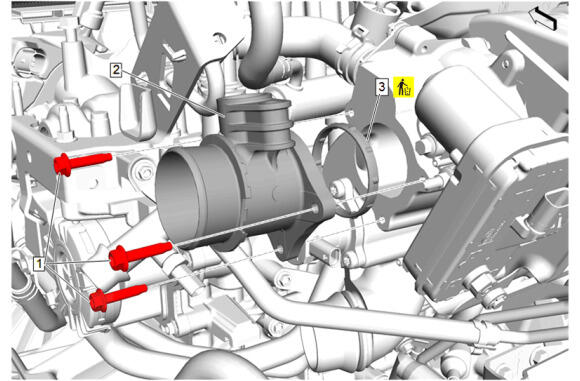

  3. GM5782982Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Inlet Air Hose Bolt (1) - Remove [3x]

  4. Charge Air Cooler Inlet Air Rear Hose Adapter (2) - Remove
  5. Evaporative Emission Canister Air Inlet Opening Cover Seal (3) - Remove and DISCARD
