Charge Air Bypass Valve Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

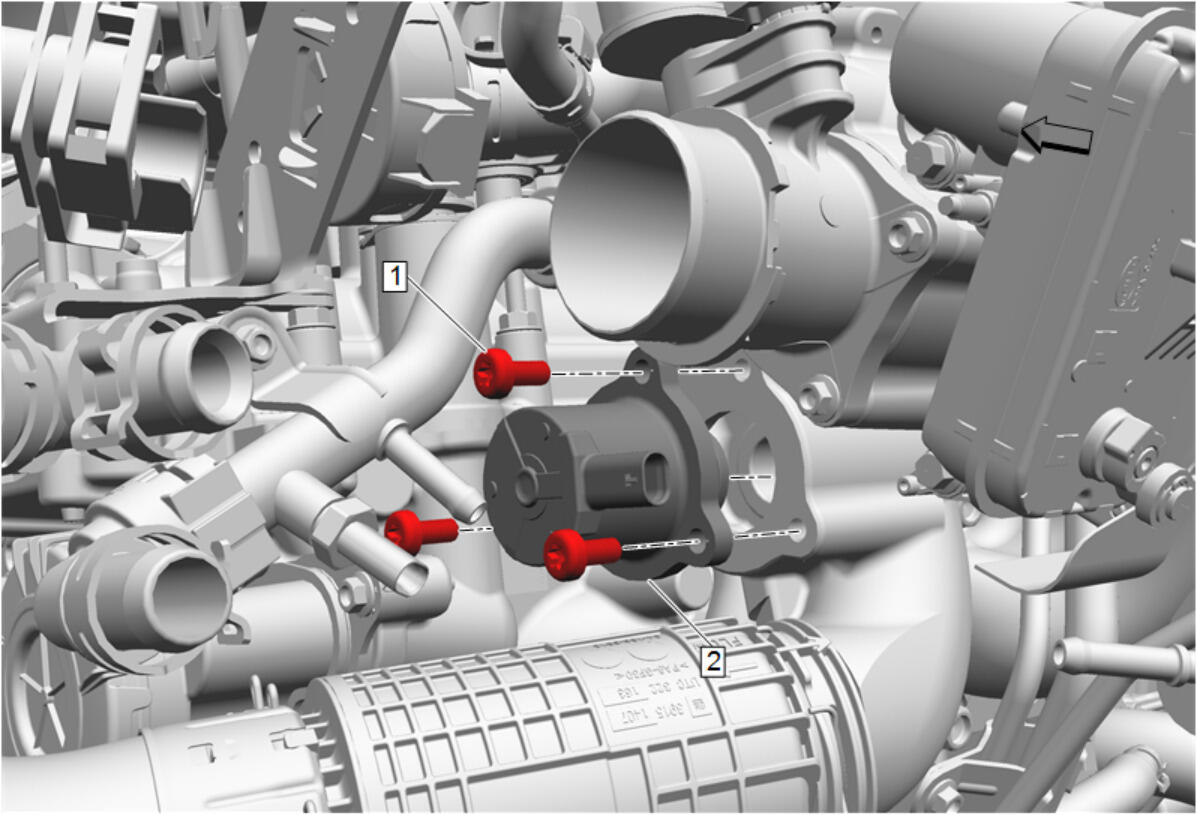

Callout	Component Name
Preliminary Procedures Air Cleaner Outlet Intermediate Duct Replacement Turbocharger Outlet Duct Connector Replacement
1	Charge Air Bypass Regulator Solenoid Valve Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 7 N.m (62 lb in)
2	Charge Air Bypass Valve Procedure Disconnect the electrical connector. Clean and inspect O-ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers Perform the intake system learned values reset. Intake System Learned Values Reset

Callout

Component Name

Preliminary Procedures

Charge Air Bypass Regulator Solenoid Valve Bolt [3x]

CAUTION:

Tighten
7 N.m (62 lb in)

Charge Air Bypass Valve

Procedure

Disconnect the electrical connector.
Clean and inspect O-ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers
Perform the intake system learned values reset. Intake System Learned Values Reset
