Air Cleaner Assembly Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Loosen the air cleaner outlet duct clamp at the air cleaner assembly. Air Cleaner Outlet Duct Replacement Disconnect the electrical connector. Remove wiring harness retainers from air cleaner assembly.

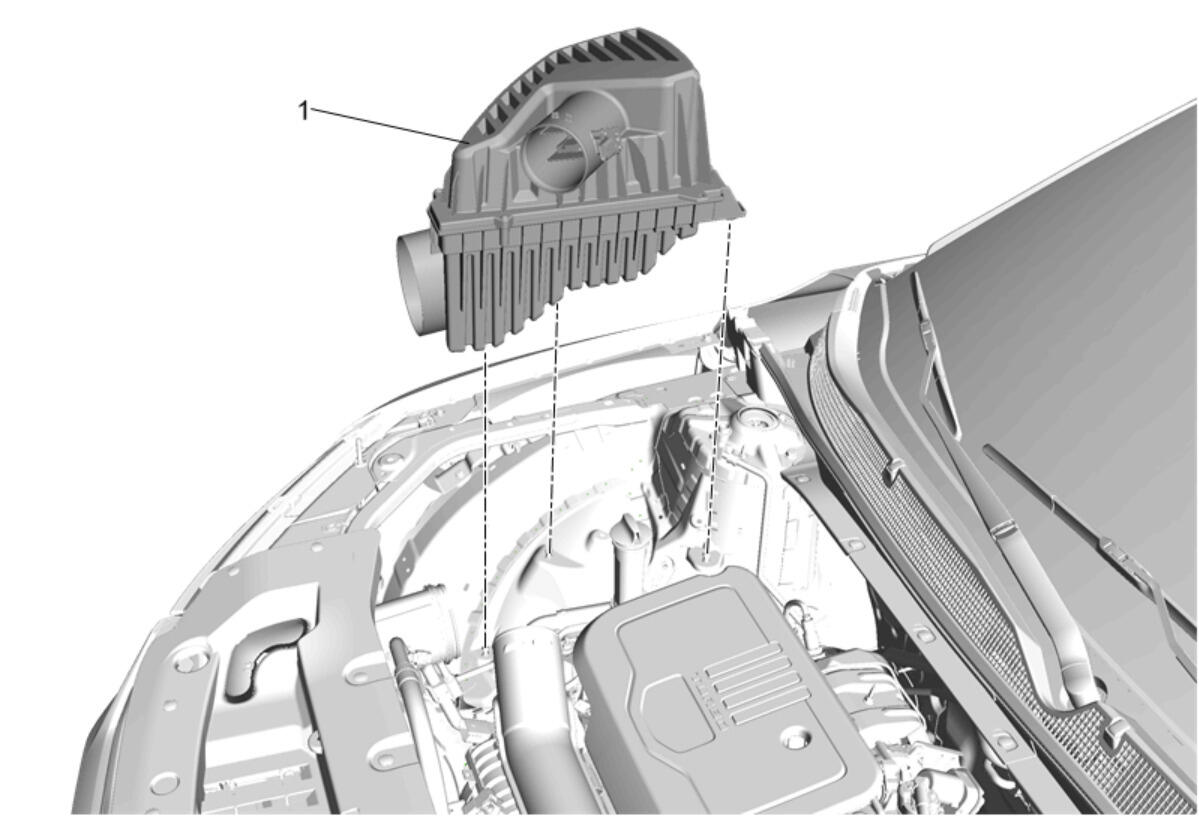

1	Air Cleaner Assembly Procedure Remove the air cleaner housing from the retainers. Transfer parts as necessary.

Callout

Component Name

Preliminary Procedure

Loosen the air cleaner outlet duct clamp at the air cleaner assembly. Air Cleaner Outlet Duct Replacement
Disconnect the electrical connector.
Remove wiring harness retainers from air cleaner assembly.

Air Cleaner Assembly

Procedure
