Intake Air Duct Replacement
WARNING: This page is about a different variant/trim than selected.

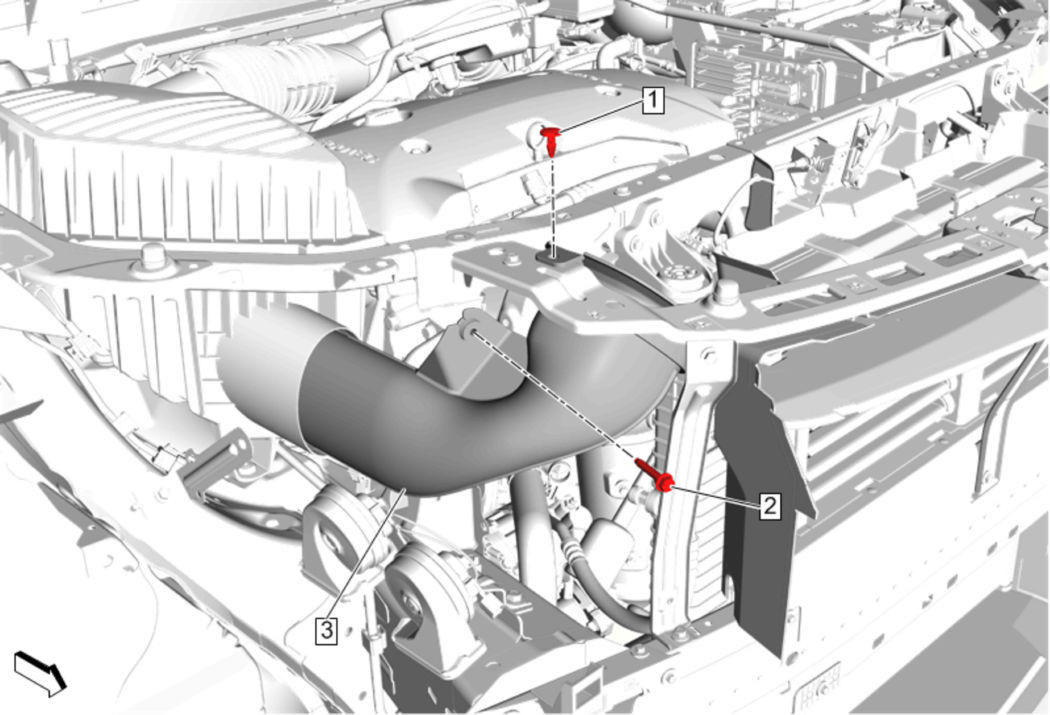

| Callout | Component Name |
|---|---|
| Preliminary Procedure Daytime Running Lamp-Right Side - Remove - Daytime Running Lamp Replacement |
|
| 1 | Intake Air Duct Retainer |
| 2 | Intake Air Duct Bolt
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 3 | Intake Air Duct Procedure Pull intake air duct froward to release from air cleaner assembly. |
