Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    WARNING:

    Refer to Diesel/Gasoline Vapors Warning .

    WARNING:

    Refer to Safety Glasses Warning .

  1. Fuel Tank Filler Pipe Housing - Remove - Fuel Tank Filler Pipe Housing Replacement
  2. Rear Wheelhouse Liner-Left Side - Remove - Rear Wheelhouse Liner Replacement

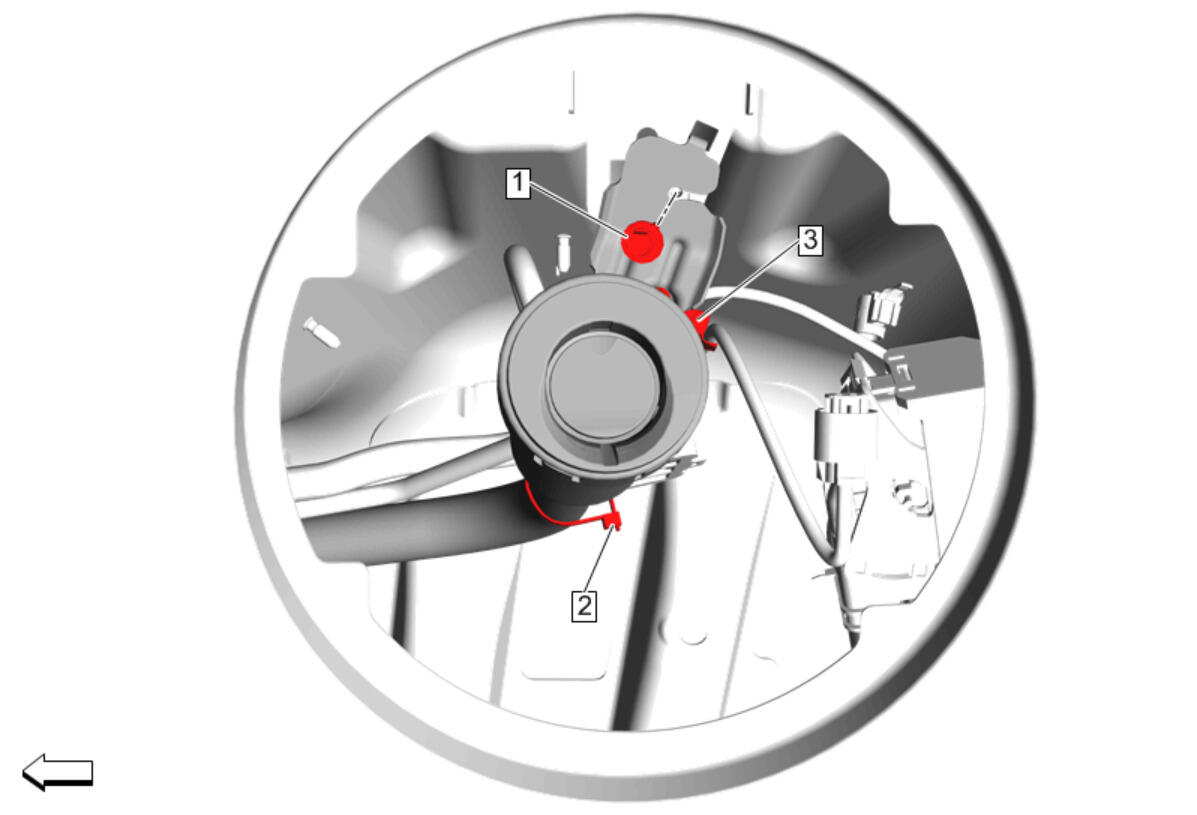

  3. GM5142921Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Pipe Bolt (1) - Remove

  4. Tie Strap (2) - Remove and DISCARD
  5. Retainer (3) - Remove

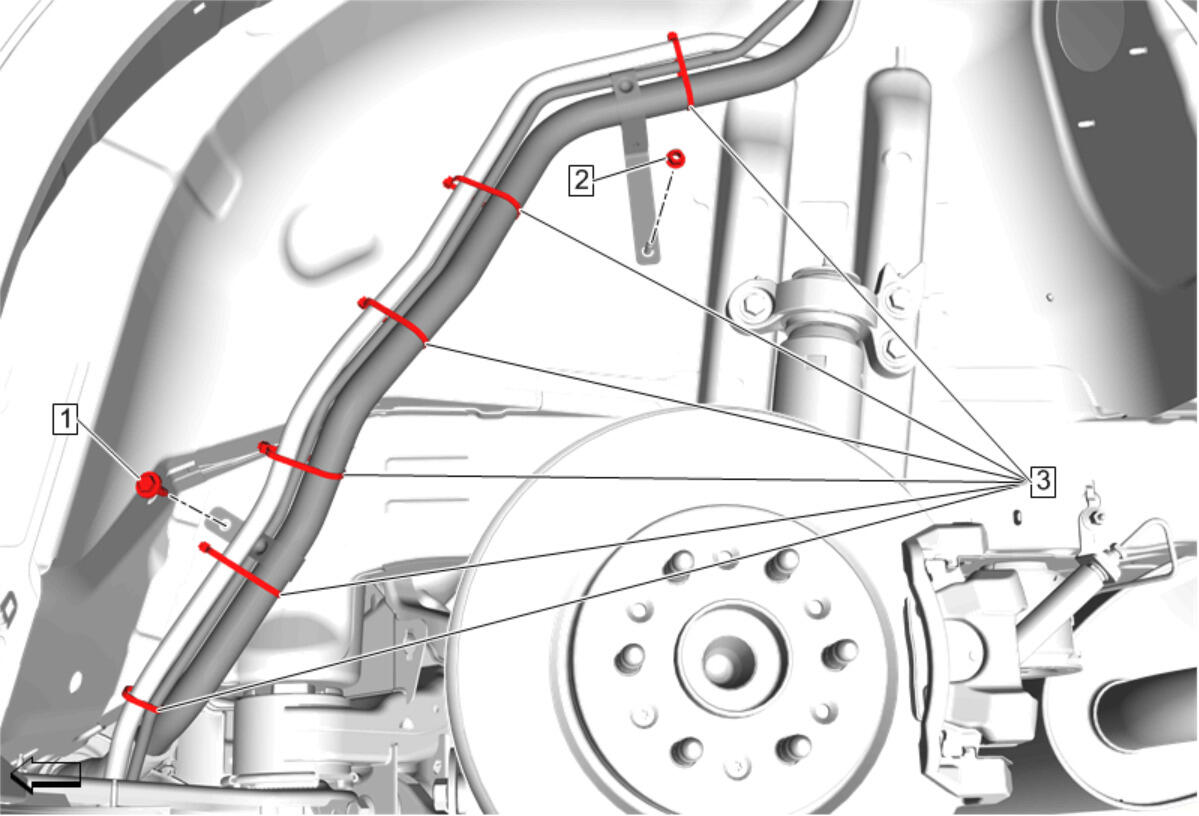

  6. GM5142927Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Pipe Bolt (1) - Remove

  7. Fuel Tank Filler Pipe Nut (2) - Remove
  8. Tie Strap (3) - Remove and DISCARD [6x]

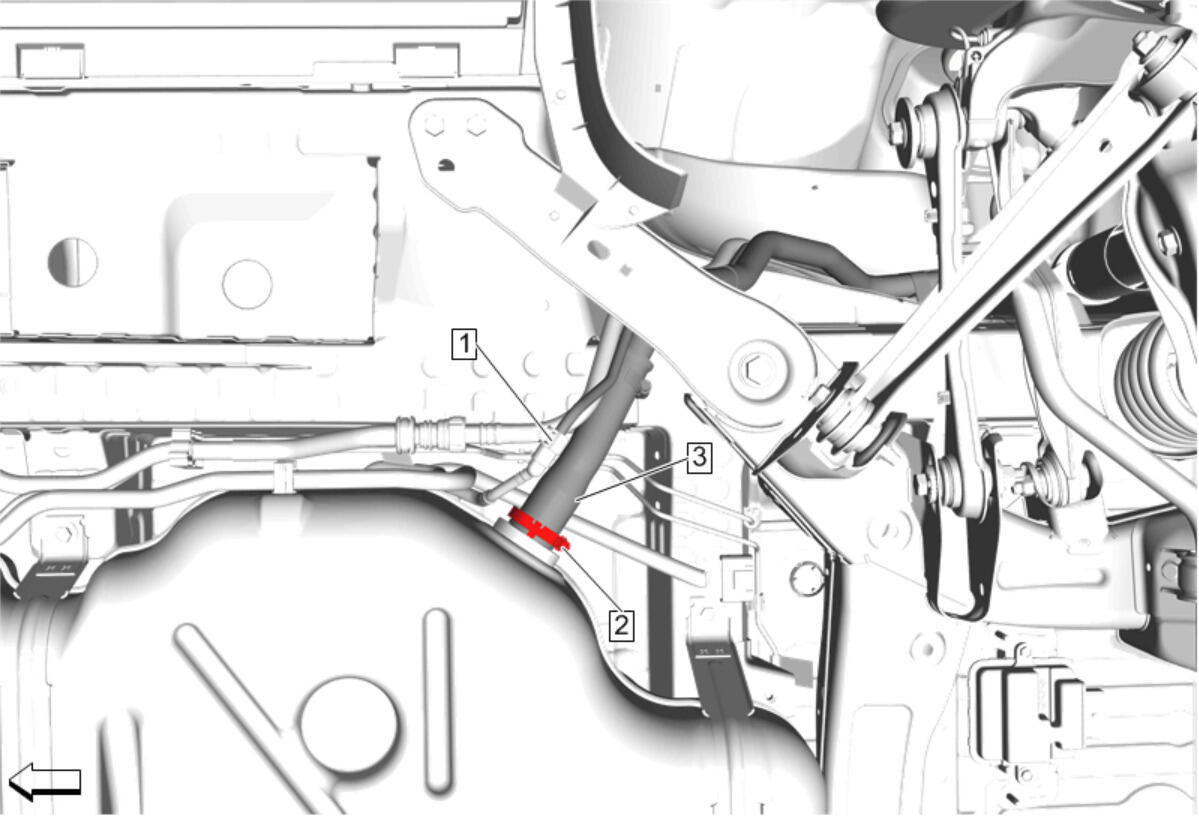

  9. GM5142930Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Vent Hose (1) - Disconnect - Plastic Collar Quick Connect Fitting Service

  10. Fuel Tank Filler Hose Clamp (2) - Remove
  11. Fuel Tank Filler Hose (3) - Remove

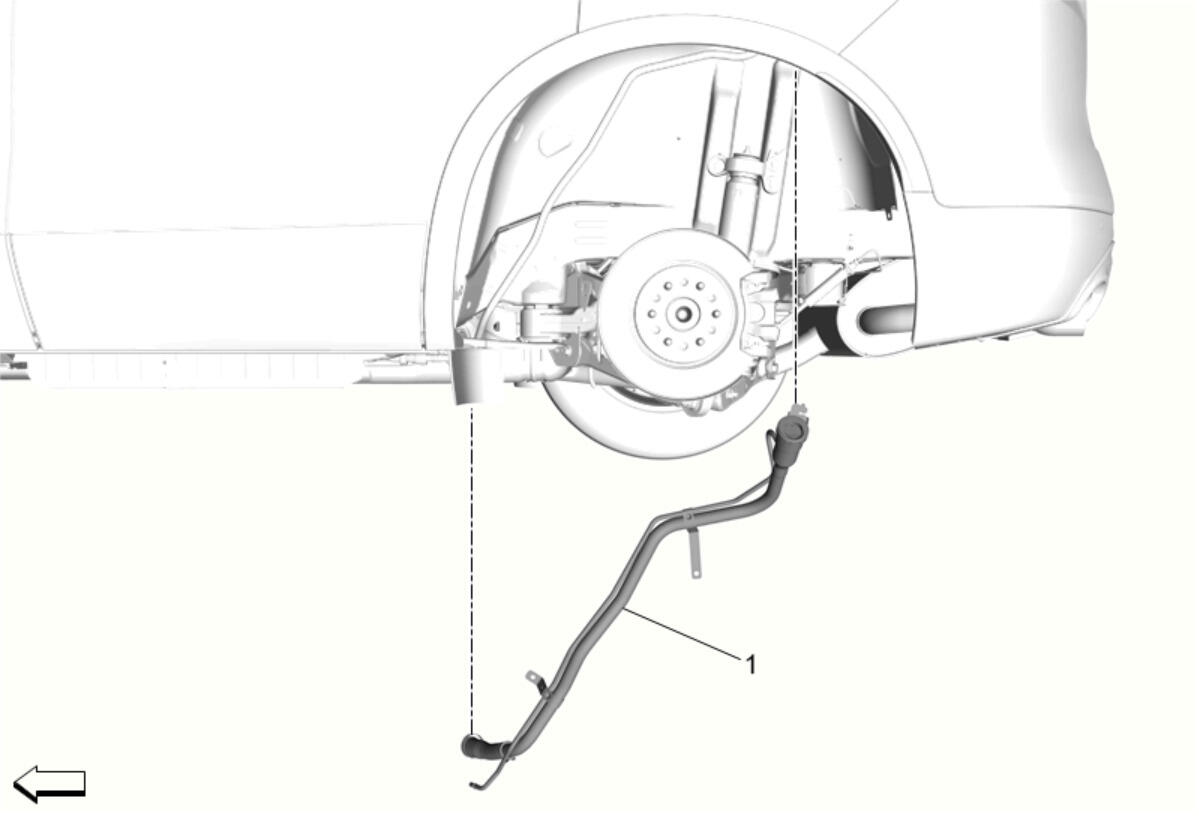

  12. GM5142931Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Pipe (1) - Remove
