Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

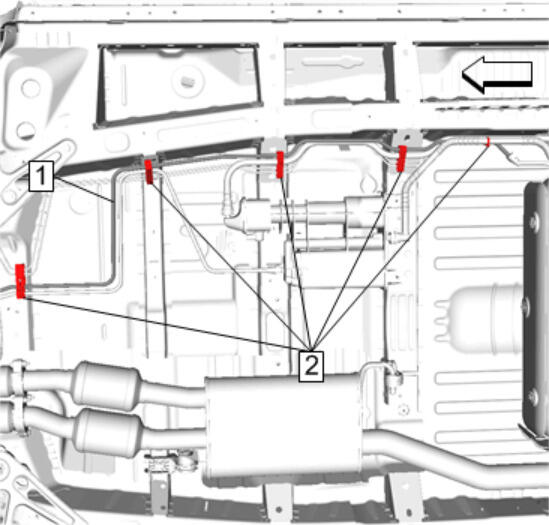

Fuel Feed Pipe (1) @ Retainer (2) - Install [5x]
Fuel Feed Pipe (1) - Connect - Plastic Collar Quick Connect Fitting Service
Courtesy of GENERAL MOTORS COMPANY

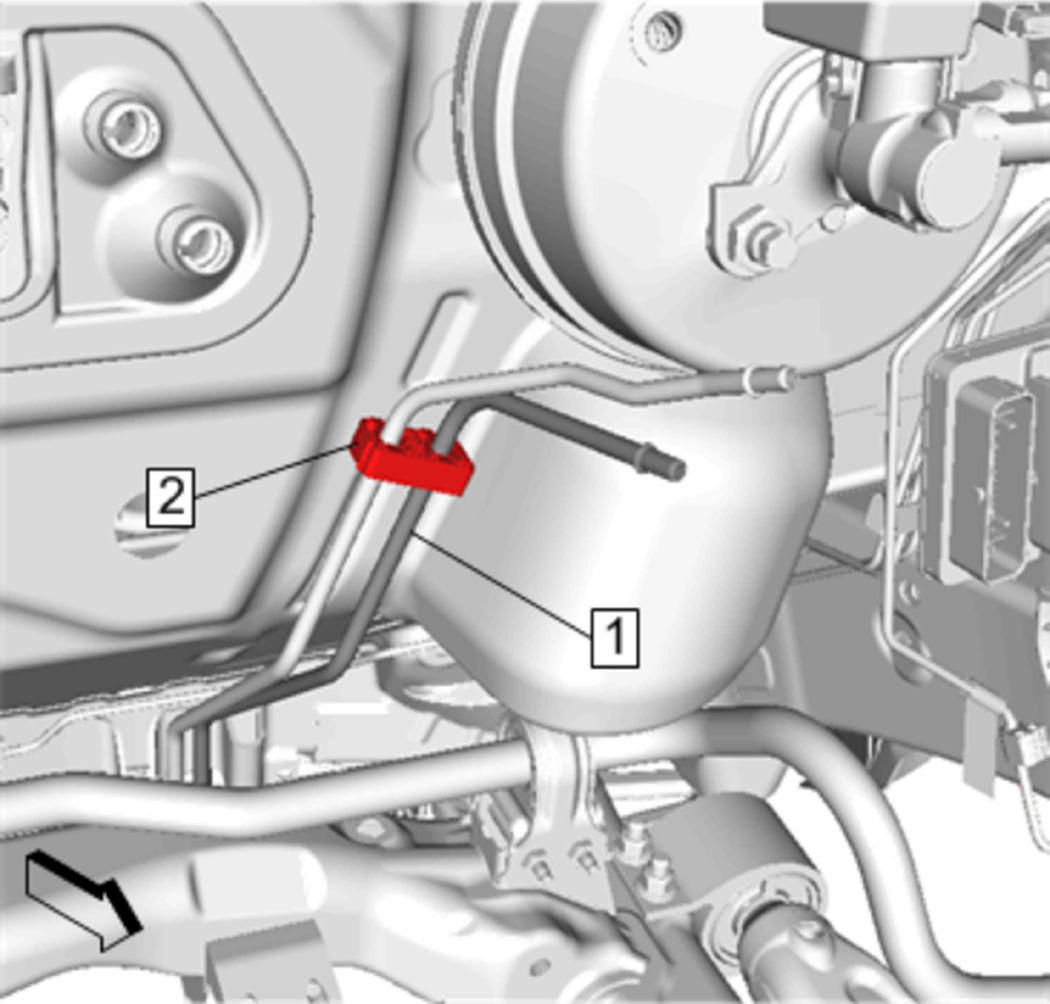

Fuel Feed Pipe (1) @ Retainer (2) - Install
Fuel Feed Front Pipe - Install - Fuel Feed Front Pipe Replacement
