Fuel Feed Front Pipe Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedures Air Cleaner Outlet Duct Replacement Intake Manifold Cover Replacement

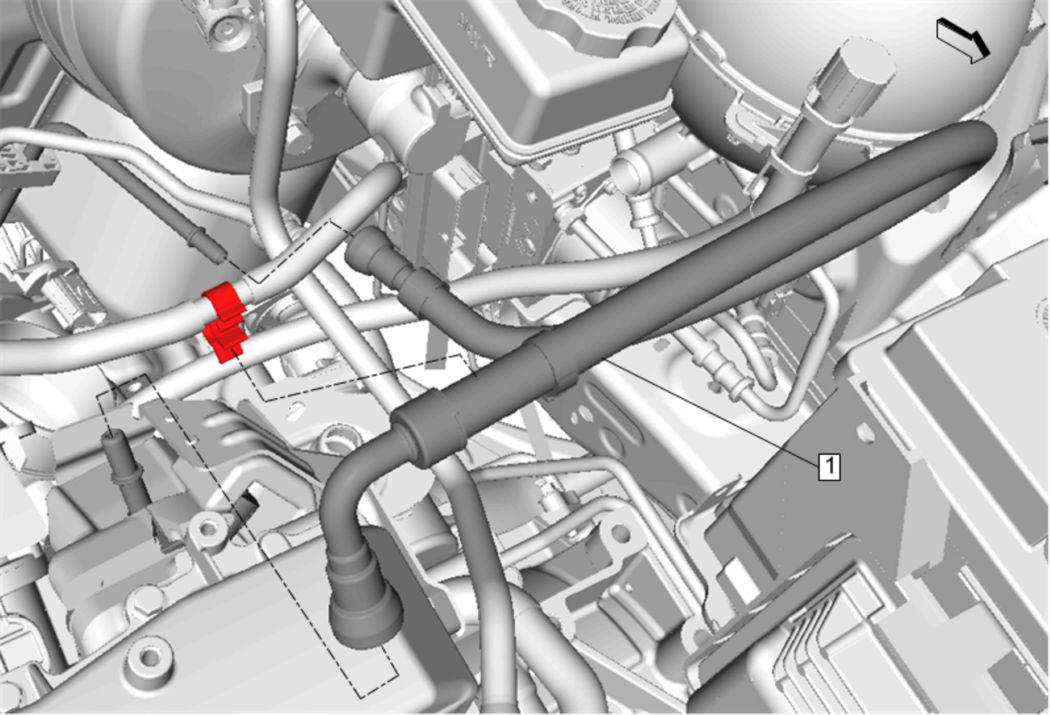

1	Fuel Feed Front Pipe Procedure Disconnect the quick connect fittings and remove from retainer. Metal Collar Quick Connect Fitting Service

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedures

Fuel Feed Front Pipe
Procedure
Disconnect the quick connect fittings and remove from retainer. Metal Collar Quick Connect Fitting Service
