Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. GM4326239Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Brace (2) - Install

  2. Engine Mount Brace Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)

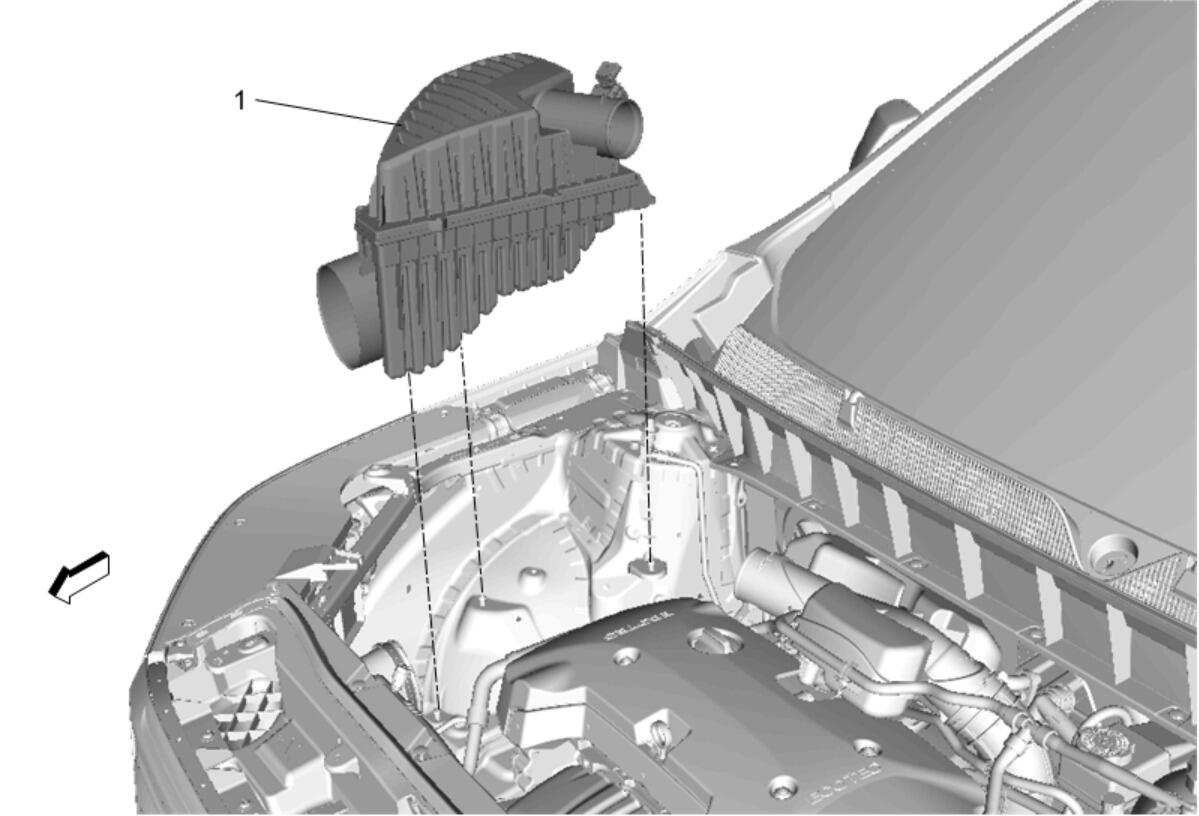

  3. GM4363562Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Assembly (1) - Install - Air Cleaner Assembly Replacement
