Installation Procedure

WARNING: This page is about a different variant/trim than selected.

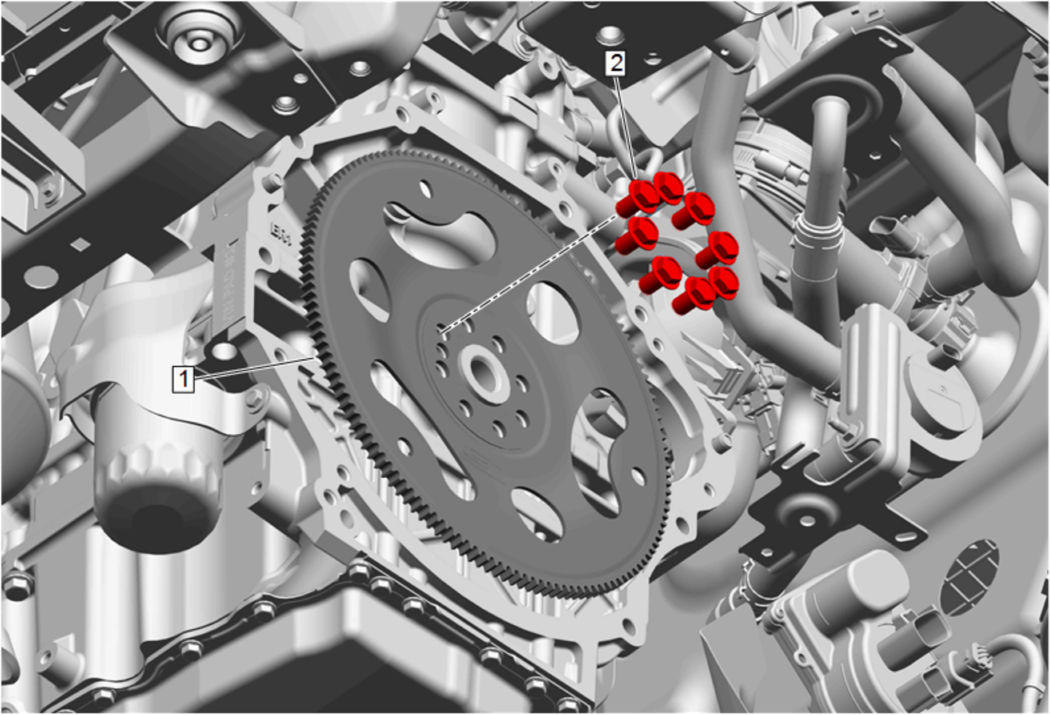

  1. GM5159778Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Flex Plate (1) - Install

  2. Automatic Transmission Flex Plate Bolt (2) - Install NEW [8x]
  3. GM2744964Courtesy of GENERAL MOTORS COMPANY

    Install the EN-50792  Holding tool (2) using the 2 starter motor bolts (1) to prevent crankshaft rotation.

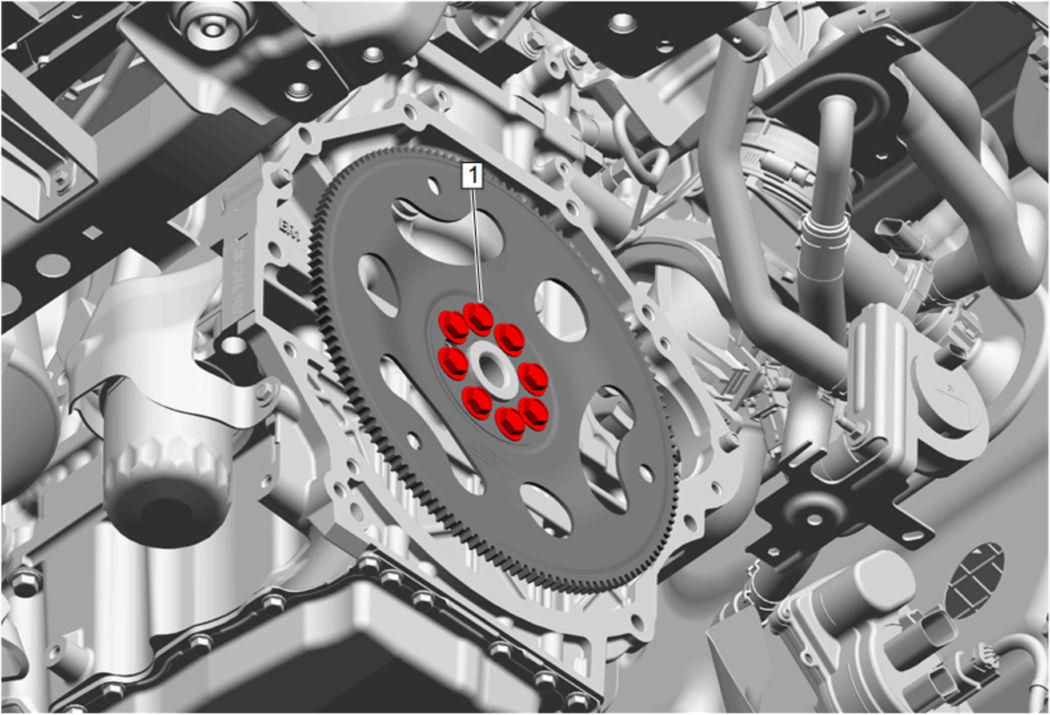

  4. GM5159786Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Flex Plate Bolt (1) - Tighten [8x] - Automatic Transmission Flex Plate Installation

  5. Remove the EN-50792  Holding tool (2).
  6. Transmission - Install - Transmission Replacement (All Wheel Drive) , or Transmission Replacement (Front Wheel Drive)
