Automatic Transmission Flex Plate Installation

Special Tools

• EN-51760  Flywheel Holding Tool
• EN-45059  Angle Meter

For equivalent regional tools, refer to Special Tools .

1. Courtesy of GENERAL MOTORS COMPANY

   CAUTION:

   This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

   NOTE:

   Fasteners have adhesive patch and must be tightened to final torque within 5 minutes.

   Install the flywheel (2) and hand start NEW bolts (1).

2. Courtesy of GENERAL MOTORS COMPANY

   To prevent crankshaft rotation, install EN-51760  flywheel holding tool (2) and starter motor bolts (1) at the starter motor location and engaging the flywheel.

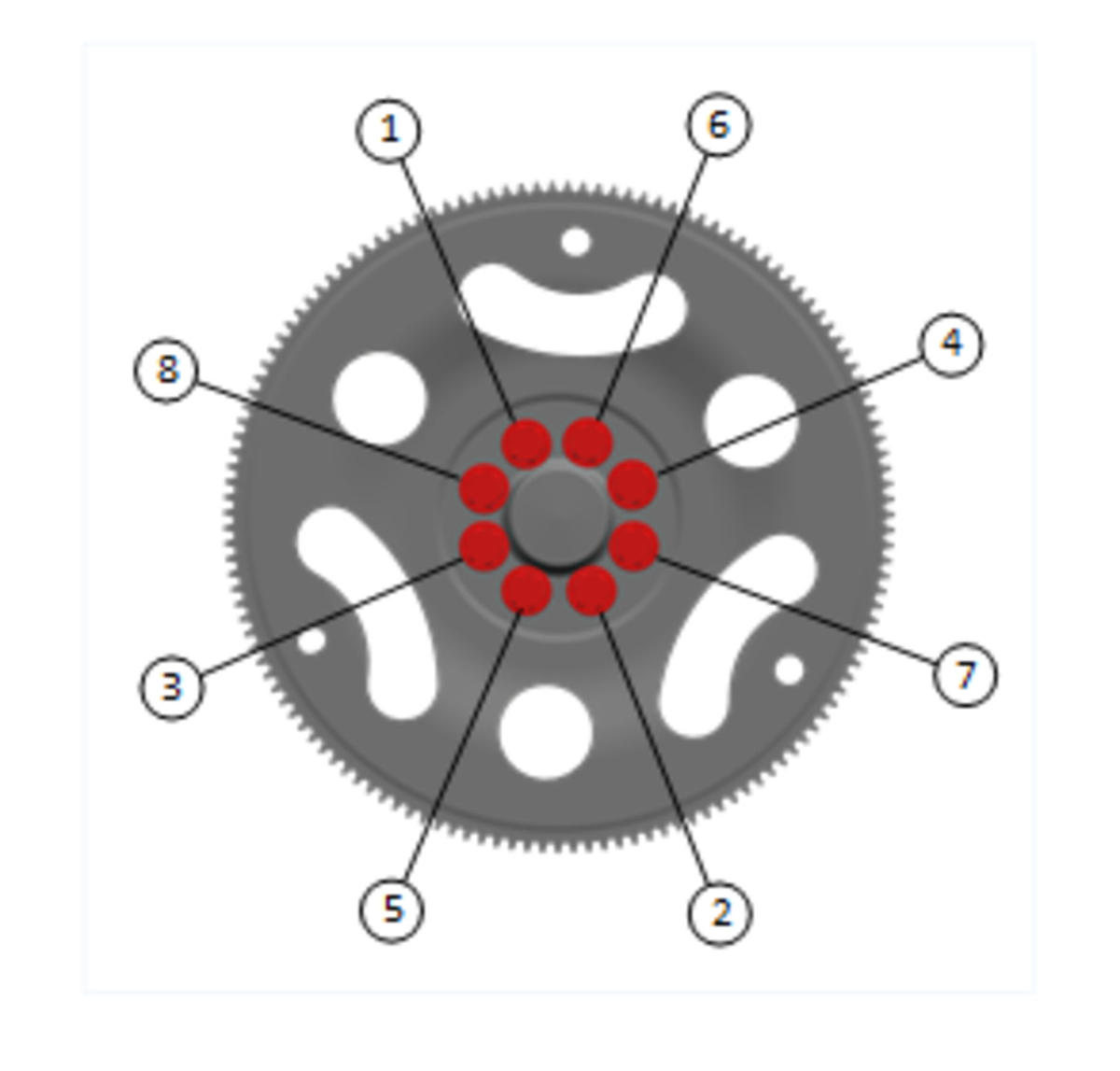

3. Fig 1: Identifying Automatic Transmission Flex Plate Bolts With Tightening Sequence

   Courtesy of GENERAL MOTORS COMPANY
   CAUTION:

   Refer to Fastener Caution .

   Tighten the bolts evenly using the following procedure:

   1. Tighten the bolts a first pass in sequence to 30 N.m (22 lb ft).
   2. Tighten the bolts a final pass in sequence 40 degrees using the EN-45059  meter.
4. Remove EN-51760  flywheel holding tool.
