Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Turbocharger Heat Shield (2) - Install NEW
Turbocharger Heat Shield Bolt (1) - Install and hand tighten
Courtesy of GENERAL MOTORS COMPANY

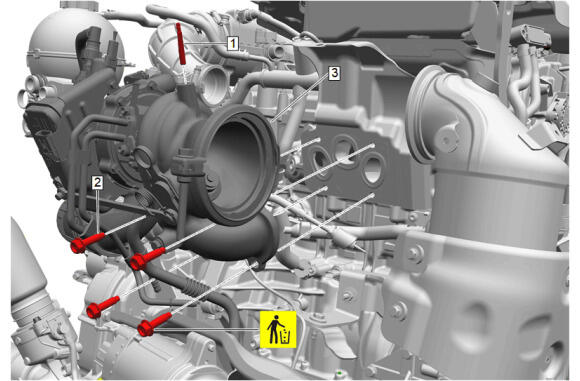

Compressor Air Intake Turbocharger (3) - Install

NOTE:

Use NEW bolts.

Turbocharger Bolt (5) - Install, but do NOT tighten [4x]
Turbocharger Stud (1) - Install - Compressor Air Intake Turbocharger Replacement
Courtesy of GENERAL MOTORS COMPANY

Turbocharger Bolt (5) - Tighten [4x] - Compressor Air Intake Turbocharger Replacement
Turbocharger Heat Shield - Install - Turbocharger Heat Shield Replacement
Courtesy of GENERAL MOTORS COMPANY

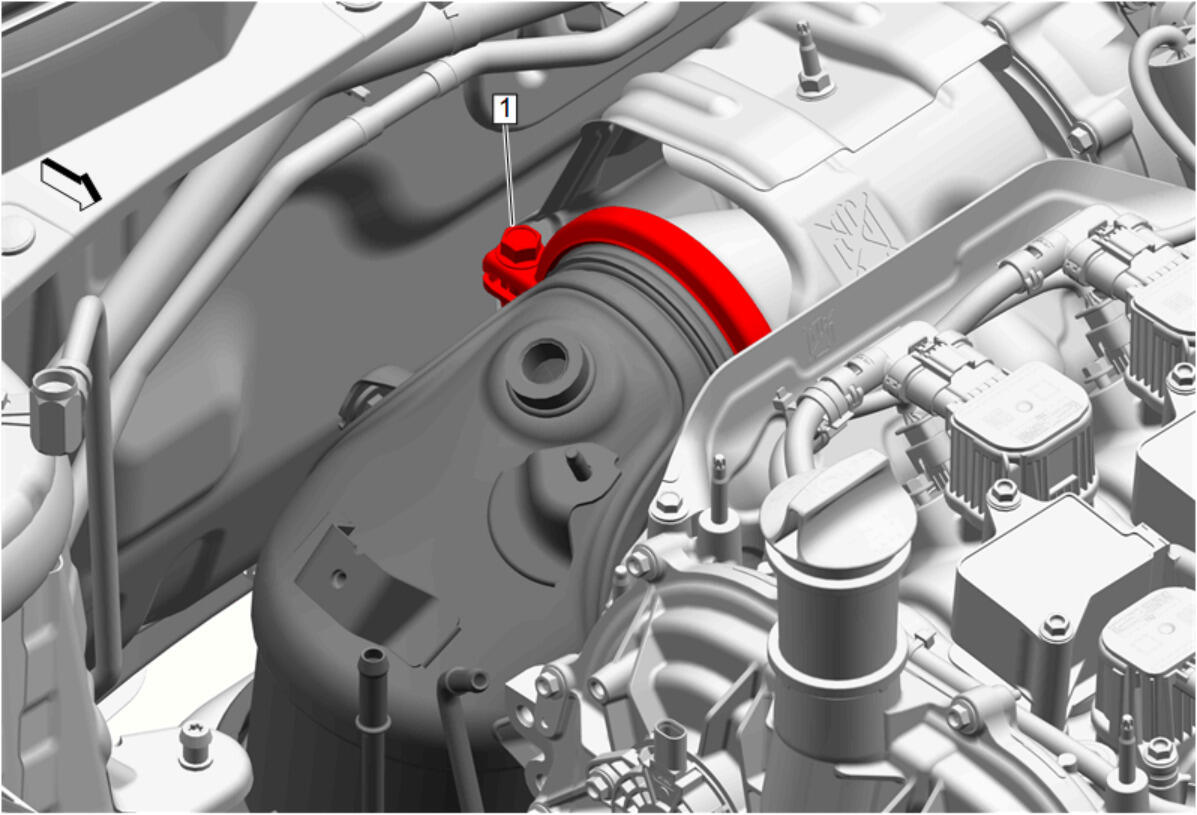

NOTE:
Use hand tools only when tightening the exhaust pipe clamp.

Exhaust Pipe Clamp (1) - Tighten 15 N.m (11 lb ft)
Courtesy of GENERAL MOTORS COMPANY

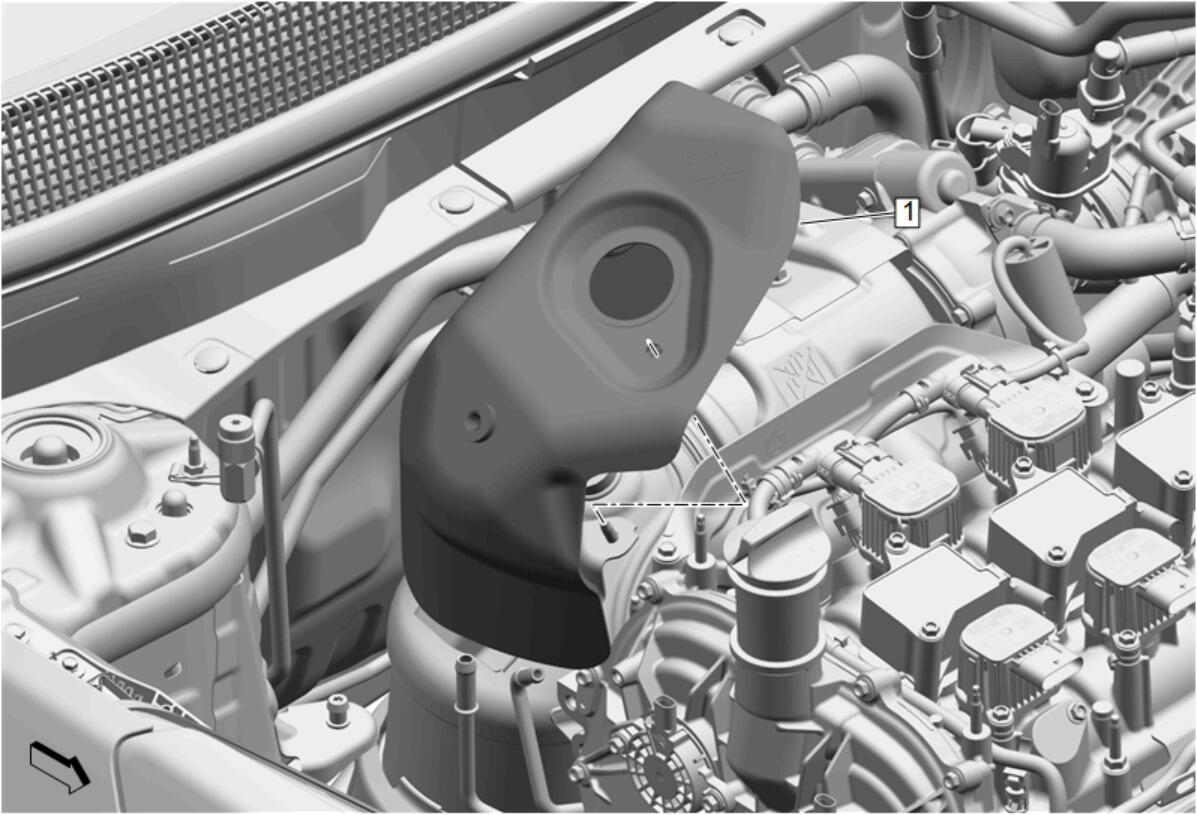

Catalytic Converter Heat Shield - Upper (1) - Install - Warm Up Three-Way Catalytic Converter Replacement (LSY)
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Assembly (1) - Install - Air Cleaner Assembly Replacement
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Resonator (1) - Install - Air Cleaner Outlet Resonator Replacement
