Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Air Cleaner Assembly - Remove - Air Cleaner Assembly Replacement
  2. GM5668957Courtesy of GENERAL MOTORS COMPANY

    Oil Filler Tube (2) - Remove - Oil Filler Tube Replacement

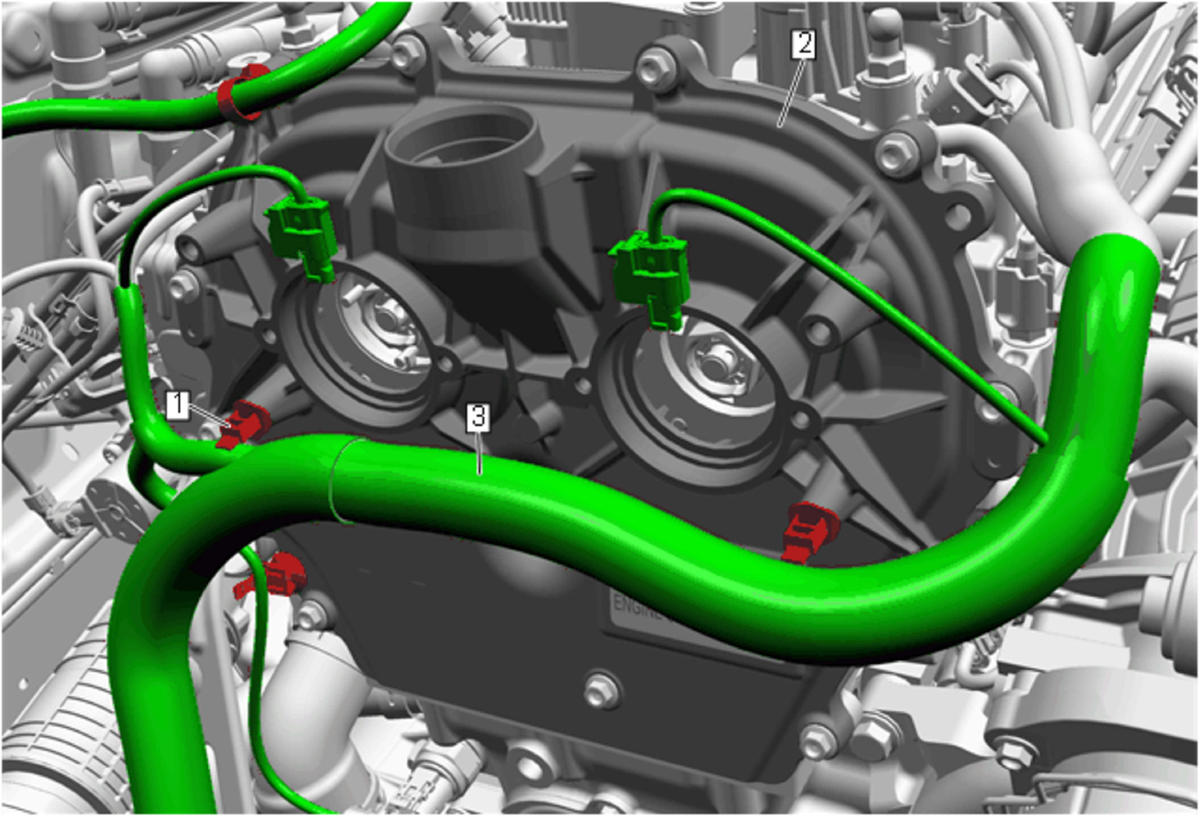

  3. GM5134079Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) @ Timing Chain Upper Cover (2) - Unclip [4x]

  4. Engine Wiring Harness (3) - Reposition

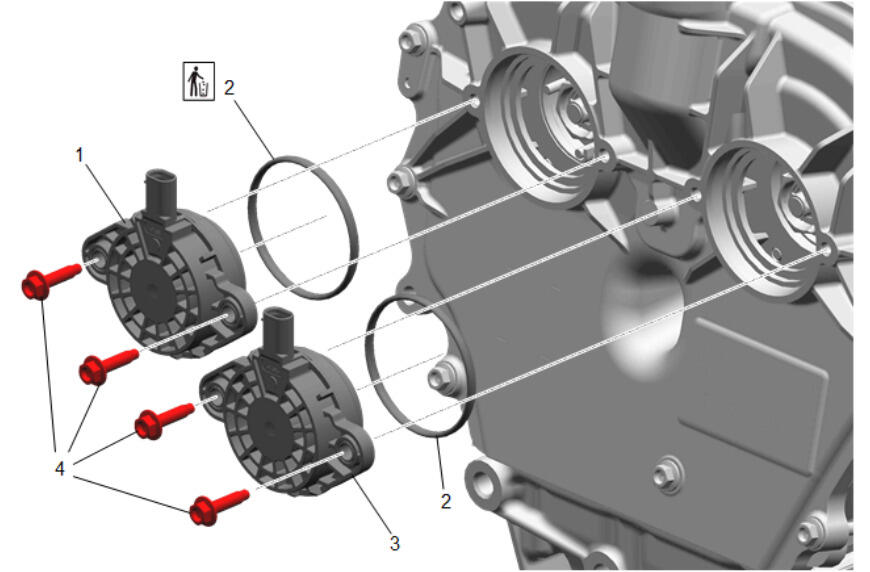

  5. GM4996987Courtesy of GENERAL MOTORS COMPANY

    Camshaft Position Actuator Valve Solenoid Bolt (4) - Remove [4x]

  6. Camshaft Position Actuator Solenoid Valve Solenoid (1, 3) - Remove [2x]
  7. Camshaft Position Actuator Magnet Gasket (2) - Remove and DISCARD [2x]

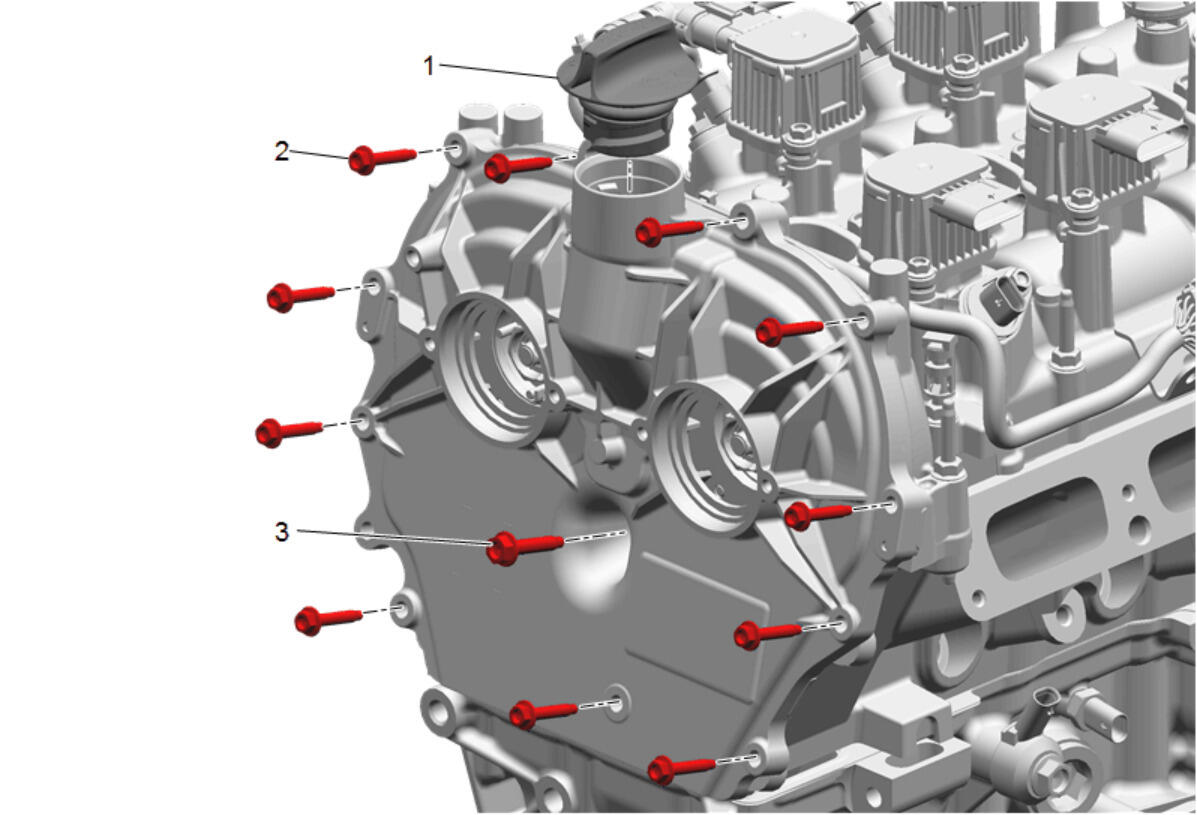

  8. GM4997059Courtesy of GENERAL MOTORS COMPANY

    Timing Chain Upper Cover Bolt-M6 (3) - Remove

  9. Timing Chain Upper Cover Bolt-M5 (2) - Remove [11x]

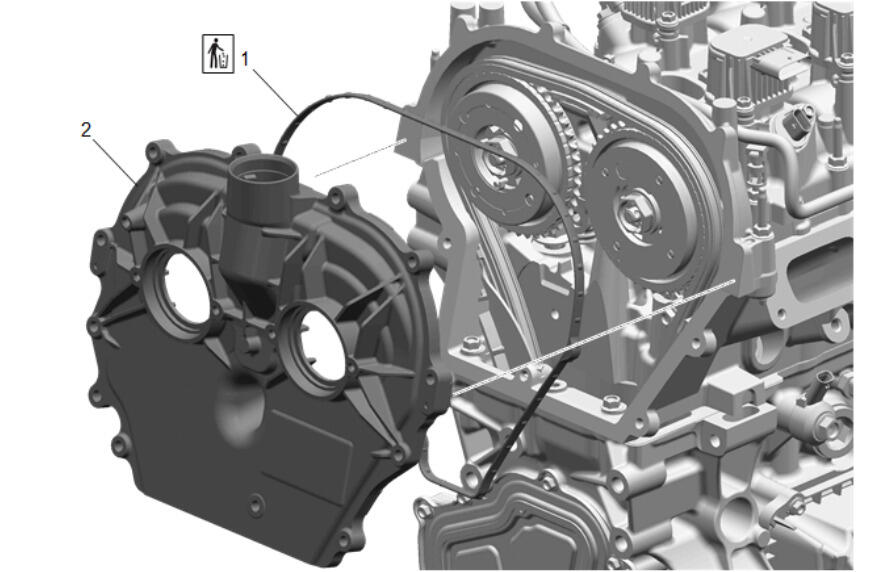

  10. GM4997066Courtesy of GENERAL MOTORS COMPANY

    Timing Chain Upper Cover (2) - Remove

  11. Timing Chain Upper Cover Seal (1) - Remove and DISCARD
