Powertrain Mount Balancing
WARNING: This page is about a different variant/trim than selected.
- Air Cleaner Assembly - Remove - Air Cleaner Assembly Replacement
- Engine Support Fixture - Install - Engine Support Fixture
- Raise the vehicle. Lifting and Jacking the Vehicle

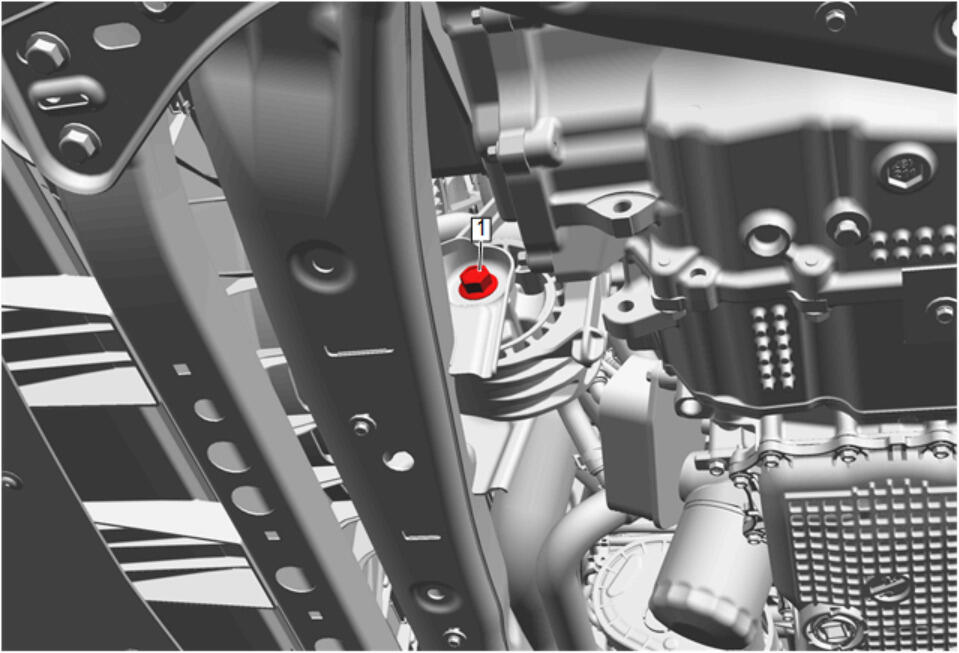

Transmission Rear Mount Bolt (1) - Loosen

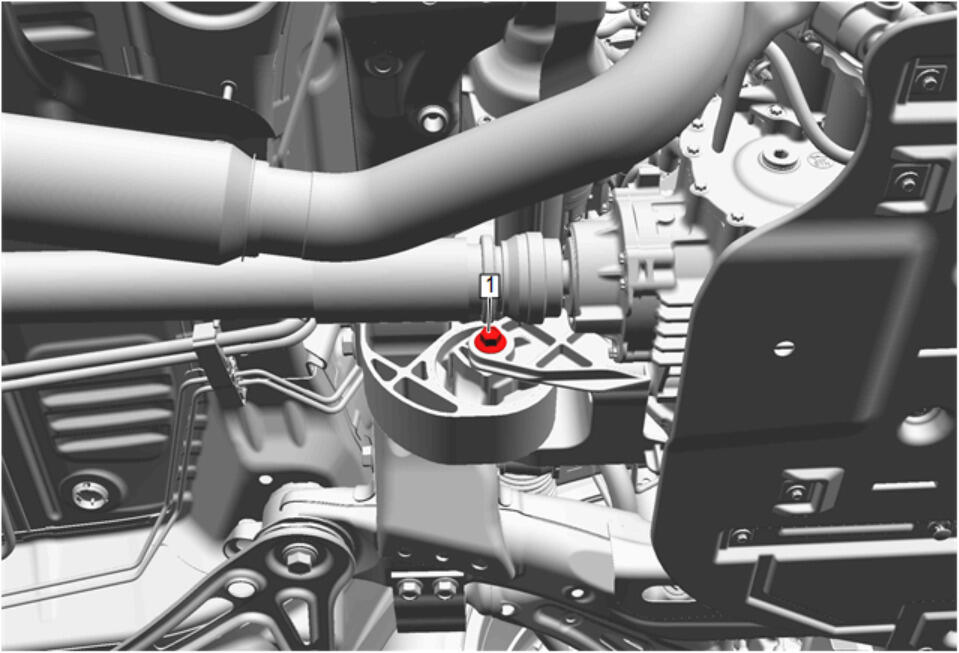

Transmission Front Mount Bolt (1) - Loosen
- Lower the vehicle.

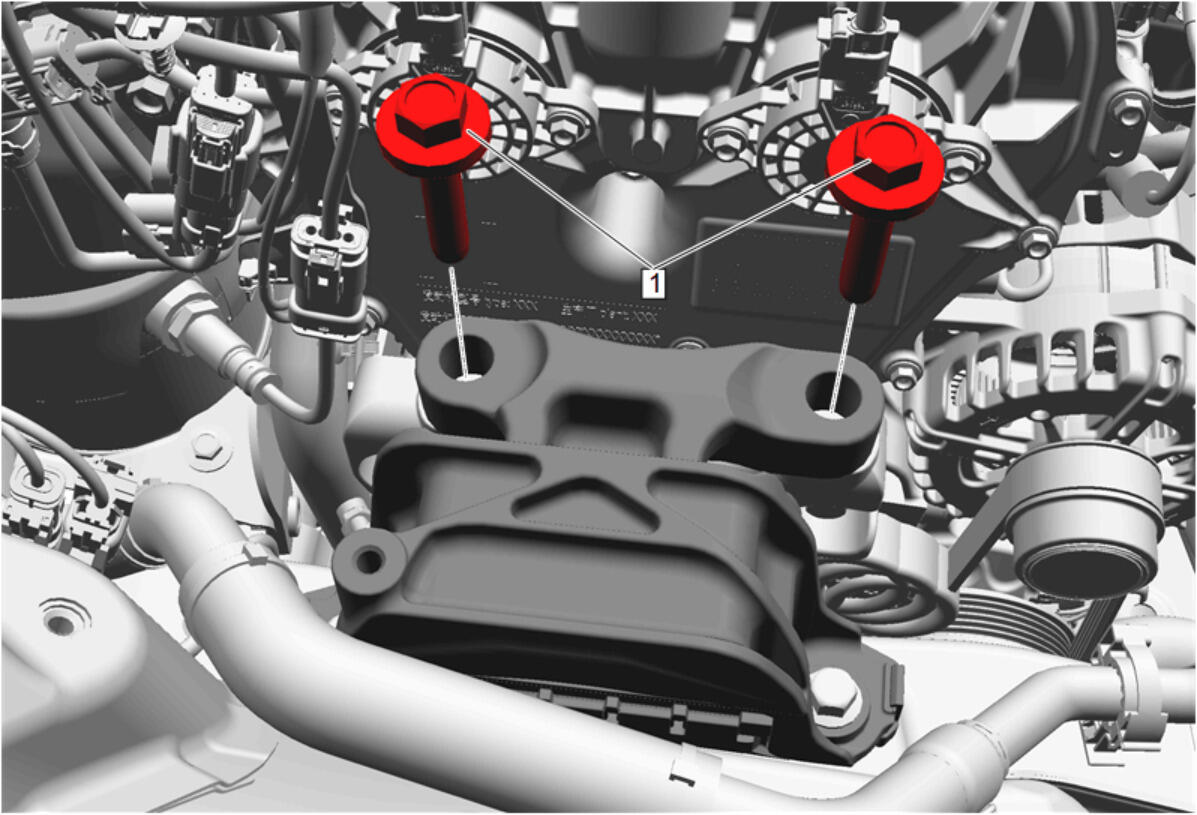

Engine Mount Bolt (1) - Loosen [2x]

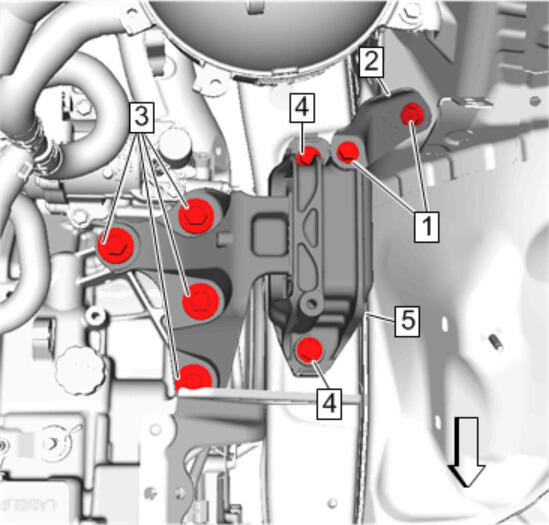

Transmission Mount Transmission Side Bolt (3) - Loosen [4x] - Transmission Mount Replacement (Left)
- Adjust the engine support fixture in order to allow a 1/8 inch gap between the mount and bracket.
- Shake the powertrain vigorously from front to rear and allow the powertrain to settle.
Transmission Mount Transmission Side Bolt (3) - Install [4x] - Transmission Mount Replacement (Left)
Engine Mount Bolt (1) - Tighten [2x] - Engine Mount Replacement
- Raise the vehicle.
Transmission Front Mount Bolt (1) - Tighten - Transmission Mount Replacement (Left)
Transmission Rear Mount Bolt (1) - Tighten - Transmission Rear Mount Replacement (All Wheel Drive) , or Transmission Rear Mount Replacement (Front Wheel Drive)
- Lower the vehicle.
- Engine Support Fixture - Remove - Engine Support Fixture
- Air Cleaner Assembly - Install - Air Cleaner Assembly Replacement
