Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Drain the engine oil.
Front Cradle Brace - Remove - Front Cradle Brace Replacement
Water Pump - Remove - Electric Engine Coolant Pump Replacement
Courtesy of GENERAL MOTORS COMPANY

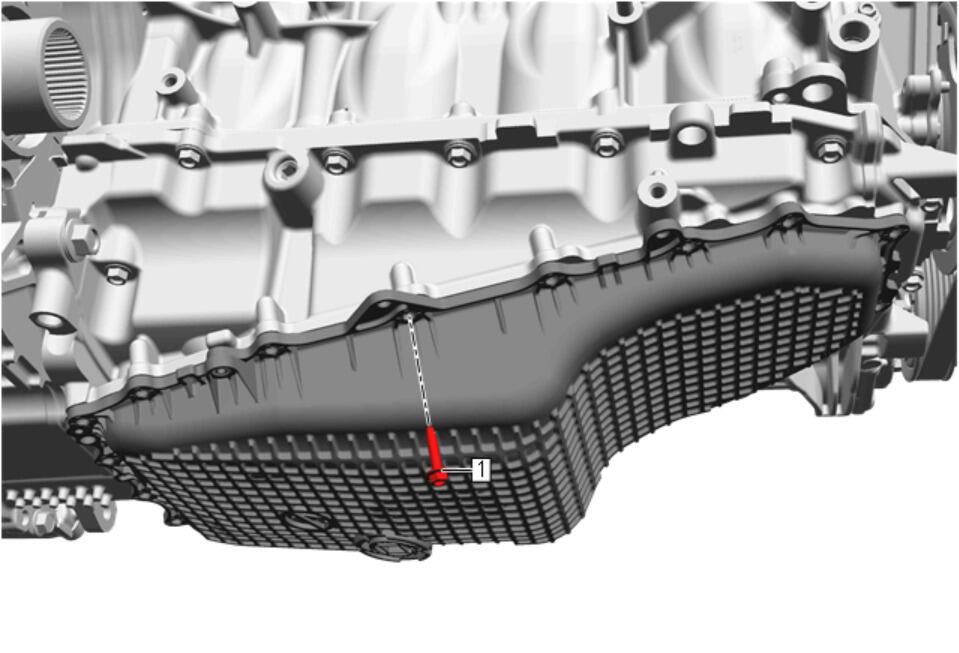

Lower Oil Pan Bolt (1) - Remove [18x]
Courtesy of GENERAL MOTORS COMPANY

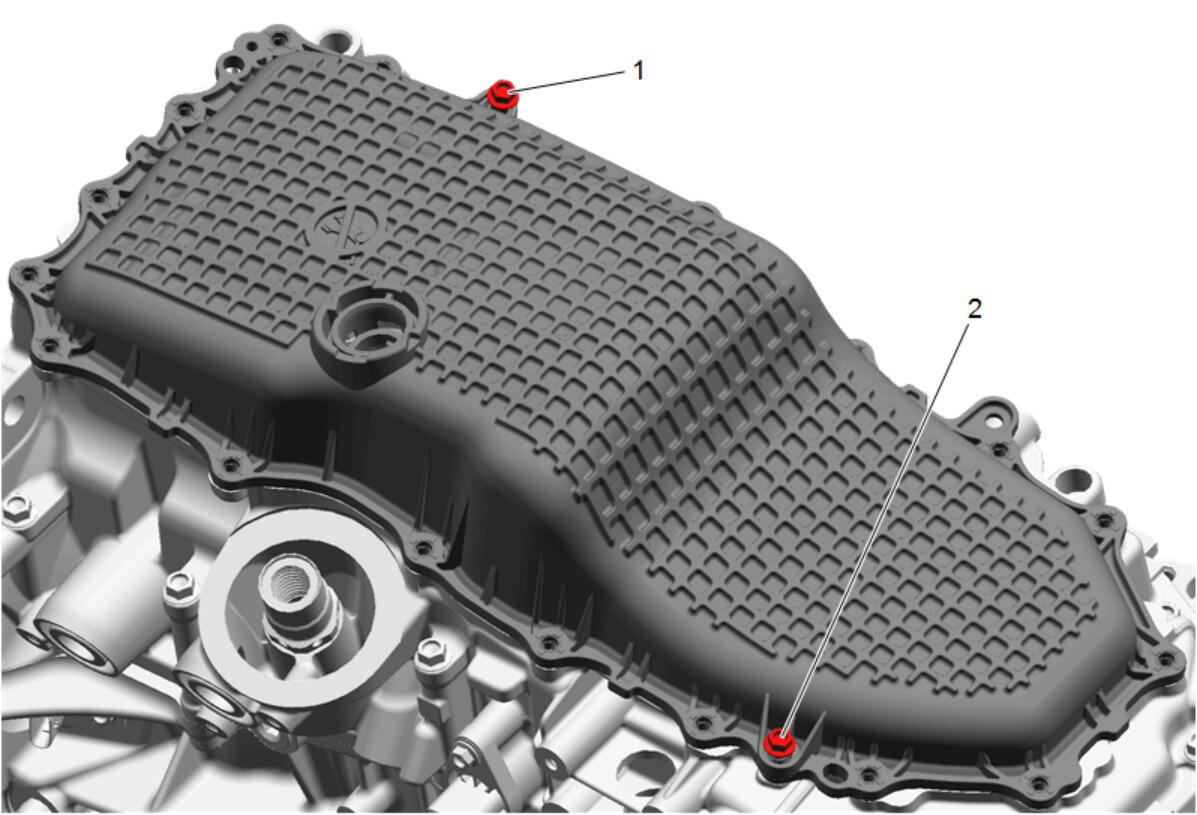

Loosely install 2 lower oil pan bolts (1, 2) to the jack screw holes to aid in removal of the lower oil pan.
Courtesy of GENERAL MOTORS COMPANY

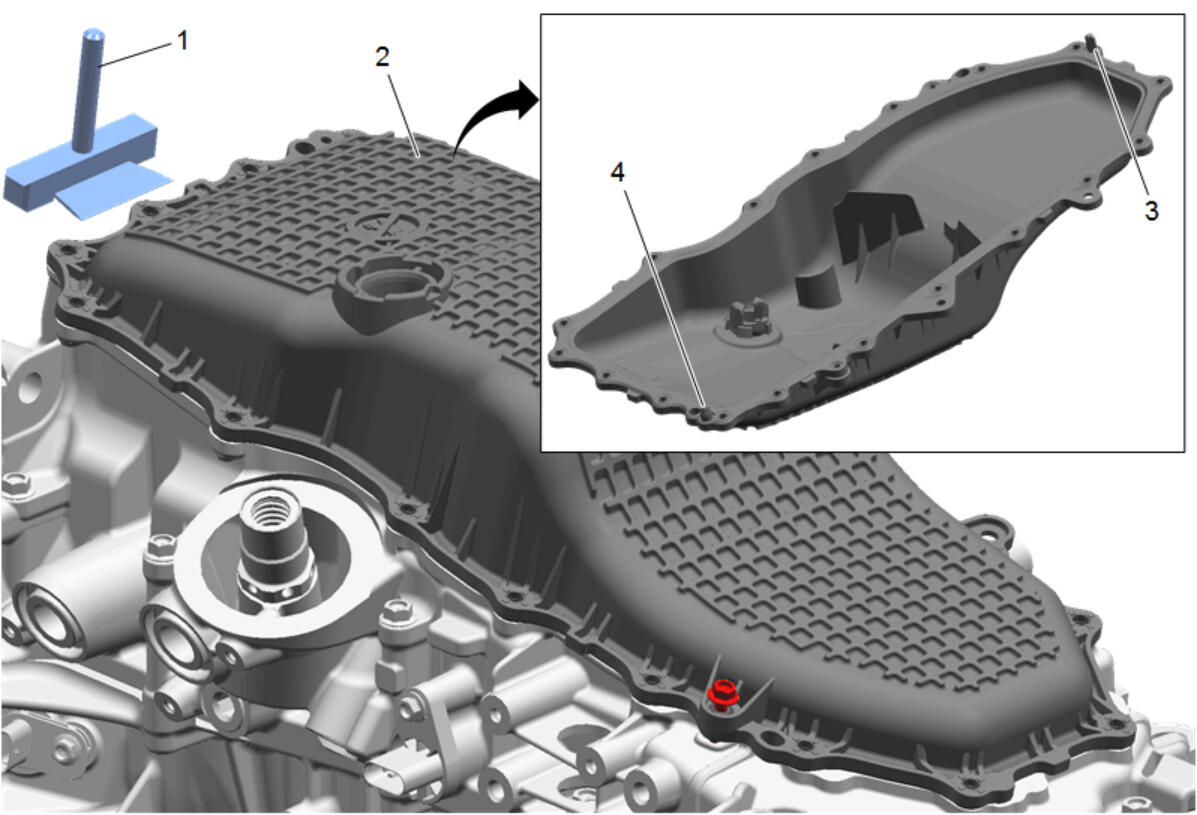

NOTE:
Ensure that the pins (3, 4) in the lower oil pan are not damaged while loosening the pan. Avoid using the separating tool in these areas.

Use a suitable flat bladed tool (1) to evenly loosen the lower oil pan (2).
Courtesy of GENERAL MOTORS COMPANY

Remove the 2 lower oil pan bolts (1, 2) from the oil pan.
Courtesy of GENERAL MOTORS COMPANY

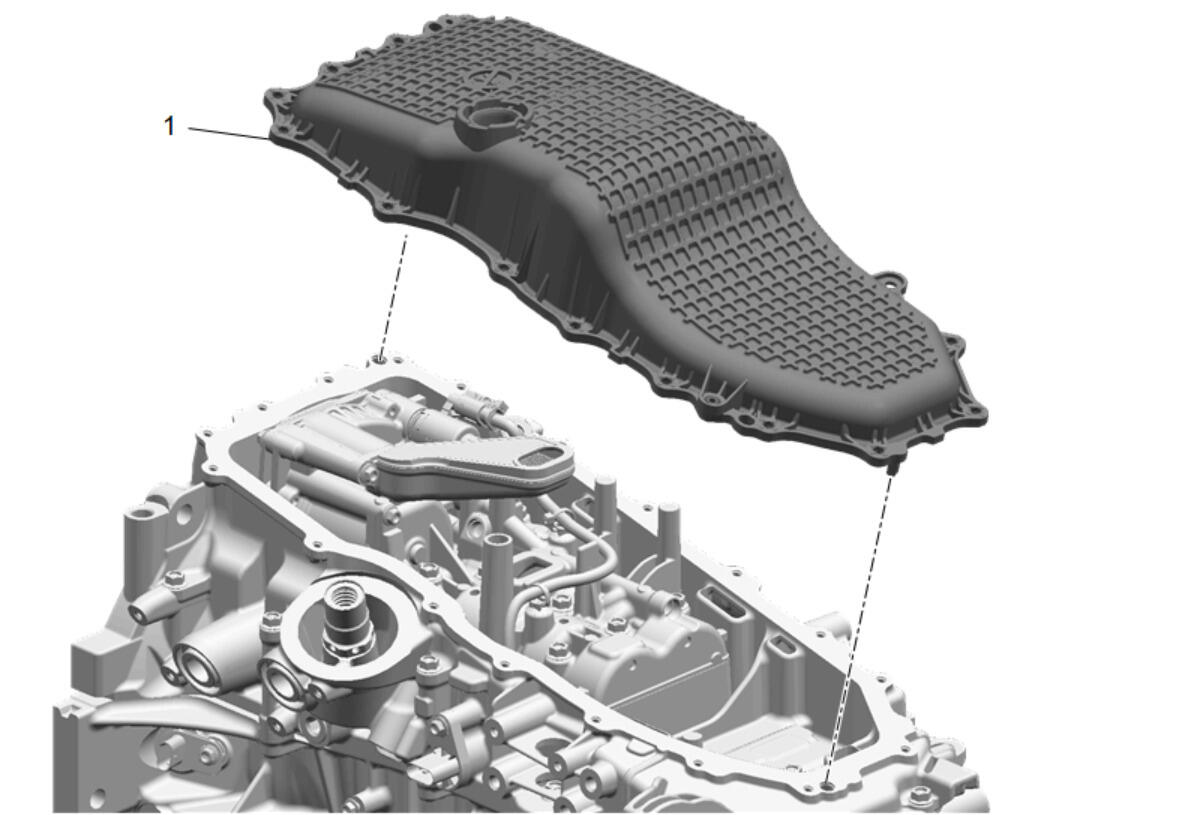

Lower Oil Pan (1) - Remove
