Front Cradle Brace Replacement

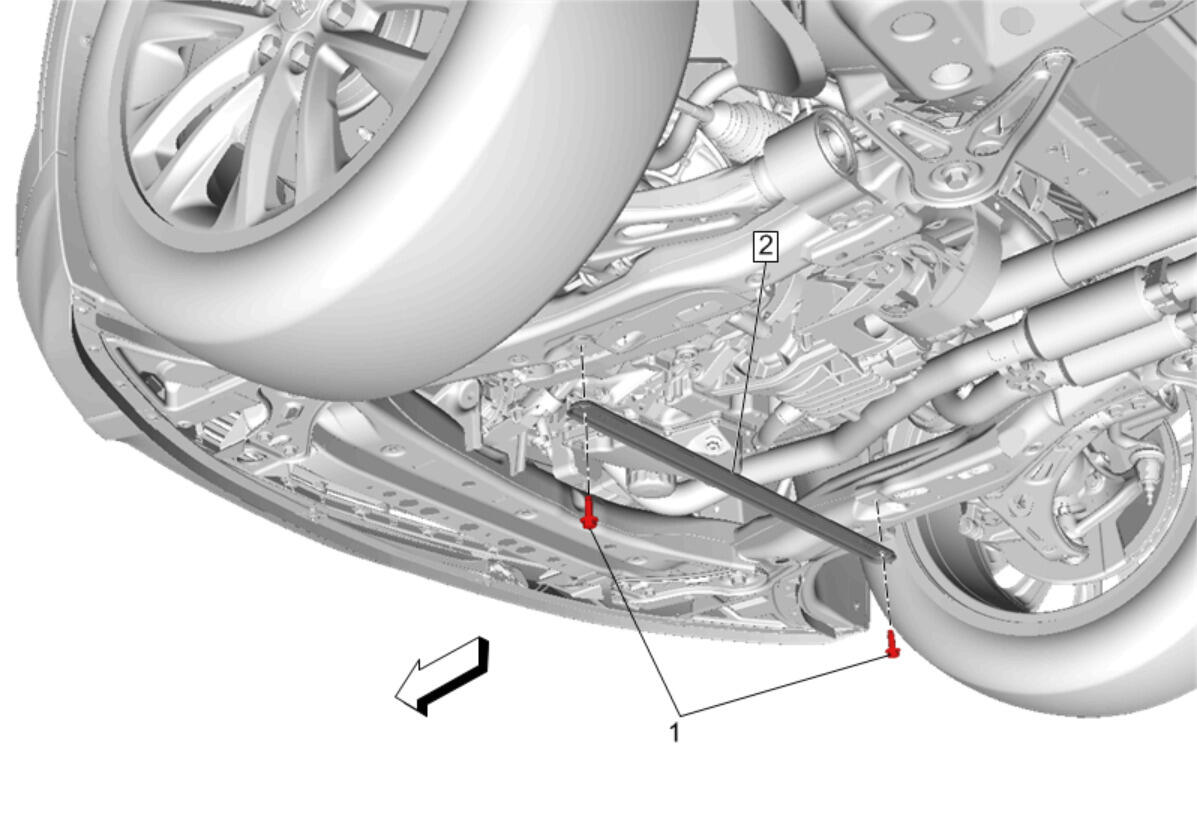

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle |
|
| 1 | Front Cradle Brace Bolt [2x]
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
NOTE:
Remove and DISCARD the bolts. Tighten First Pass: 58 N.m (43 lb ft) Final Pass: 25 - 40 degrees |
| 2 | Front Cradle Brace |
