Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Air Cleaner Outlet Intermediate Duct - Remove - Air Cleaner Outlet Intermediate Duct Replacement
Air Cleaner Assembly - Remove - Air Cleaner Assembly Replacement
Intake Air Splash Shield - Remove - Intake Air Splash Shield Replacement
Courtesy of GENERAL MOTORS COMPANY

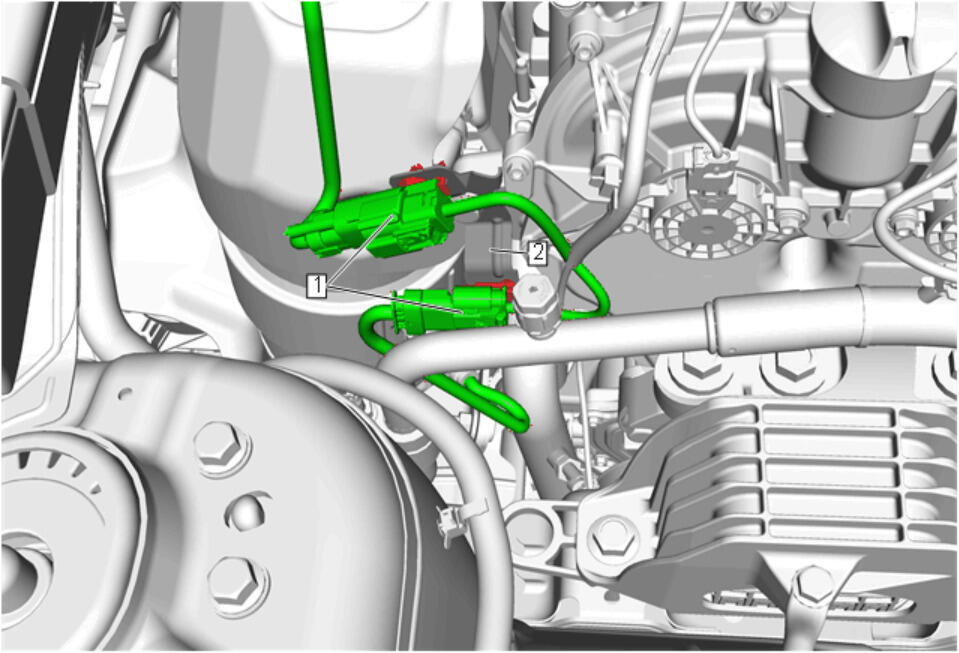

Electrical Connector (1) @ Engine Wiring Harness Bracket (2) - Unclip [2x]
Courtesy of GENERAL MOTORS COMPANY

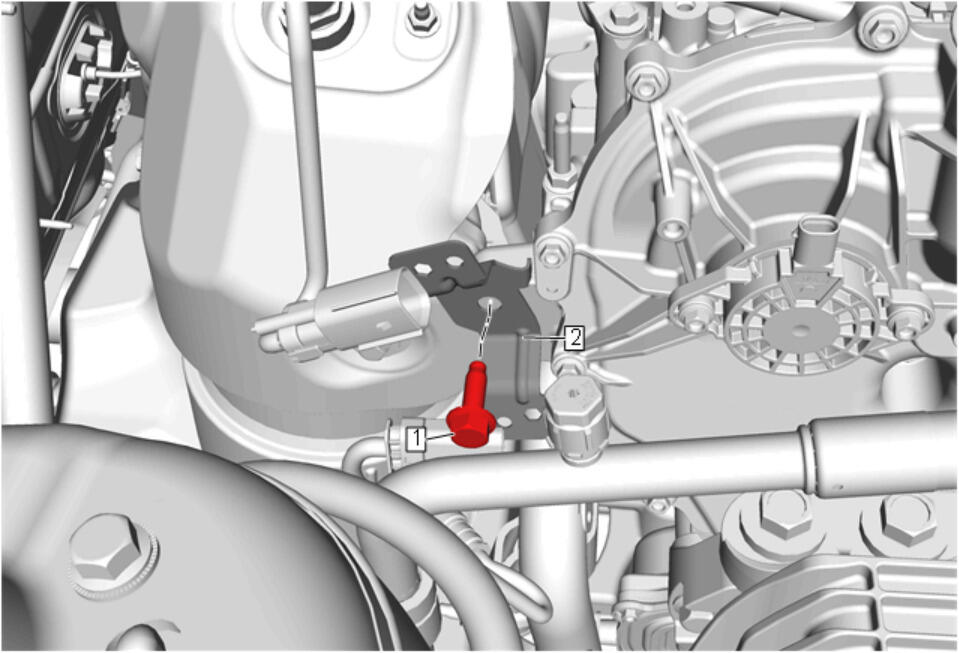

Engine Wiring Harness Bracket Bolt (1) - Remove
Engine Wiring Harness Bracket (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

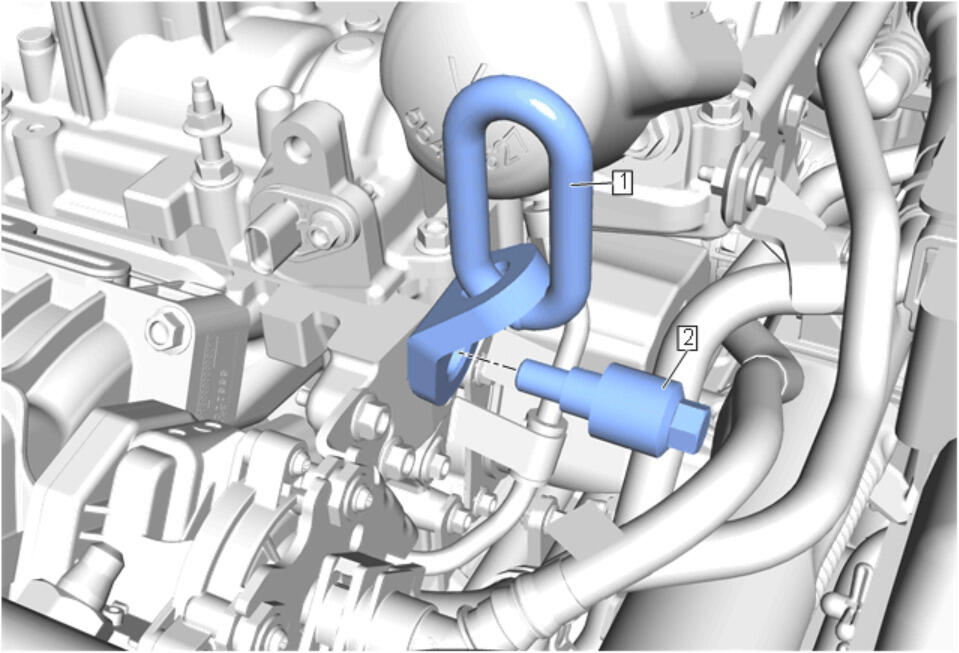

J-36857 Engine Lift Bracket Set (1) - Move into position
EN-51768 Engine Support Fixture Adapter Bolt M8 (2) - Install and hand tighten
Courtesy of GENERAL MOTORS COMPANY

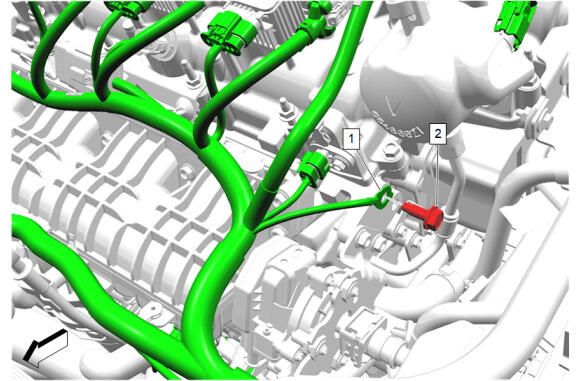

Engine Lift Bracket Bolt (2) - Remove
Ground terminal (1) - Reposition
Courtesy of GENERAL MOTORS COMPANY

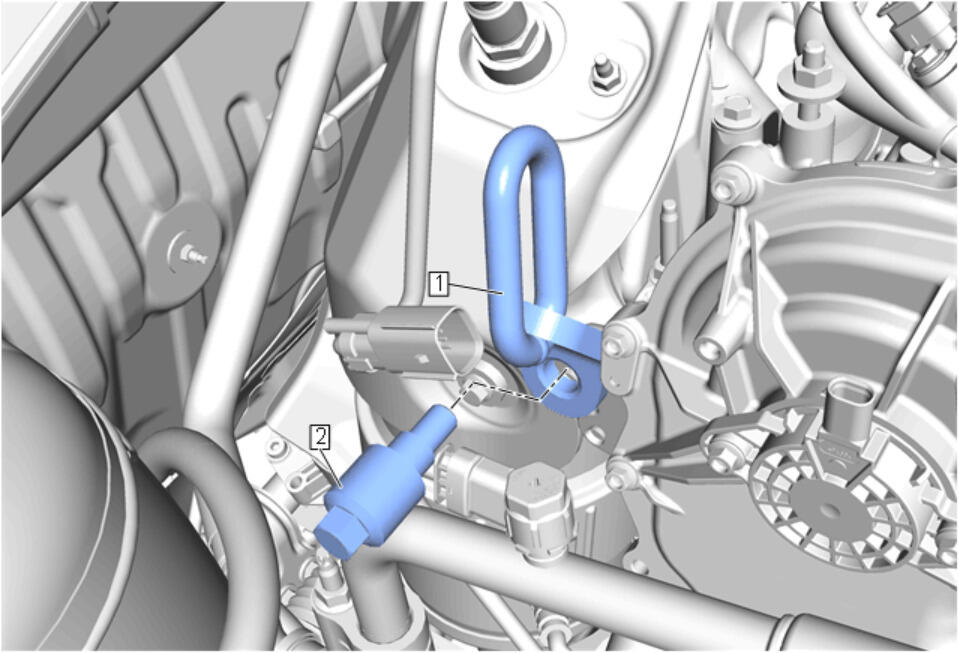

J-36857 Engine Lift Bracket Set (1) - Move into position
EN-51768 Engine Support Fixture Adapter Bolt M8 (2) - Install and hand tighten
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Install the EN-51007 Global Engine Support Fixture (1) as shown.
