Removal Procedure
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Drain the coolant. Cooling System Draining and Filling (Static LSY) , or Cooling System Draining and Filling (GE 47716 LSY)
- Recover the refrigerant. Refrigerant Recovery and Recharging (R-134a) , or Refrigerant Recovery and Recharging (R-1234yf)
Air Cleaner Assembly (1) - Remove - Air Cleaner Assembly Replacement
- Battery Tray - Remove - Battery Tray Replacement
- Fuel Feed Pipe @ Fuel Feed Front Pipe - Disconnect - Fuel Feed Pipe Replacement (FWD)
Evaporative Emission Front Pipe (1) @ Evaporative Emission Canister Purge Hose - Disconnect - Evaporative Emission Pipe Replacement (FWD)
- Heater Outlet Hose @ Radiator Surge Tank - Disconnect - Heater Outlet Hose Replacement (LSY)
- Heater Inlet Hose @ Heater Core - Disconnect - Heater Inlet Hose Replacement (LSY)
- Heater Outlet Hose @ Heater Core - Disconnect - Heater Outlet Hose Replacement (LSY)
- Radiator Inlet Hose - Remove - Radiator Inlet Hose Replacement (LSY)

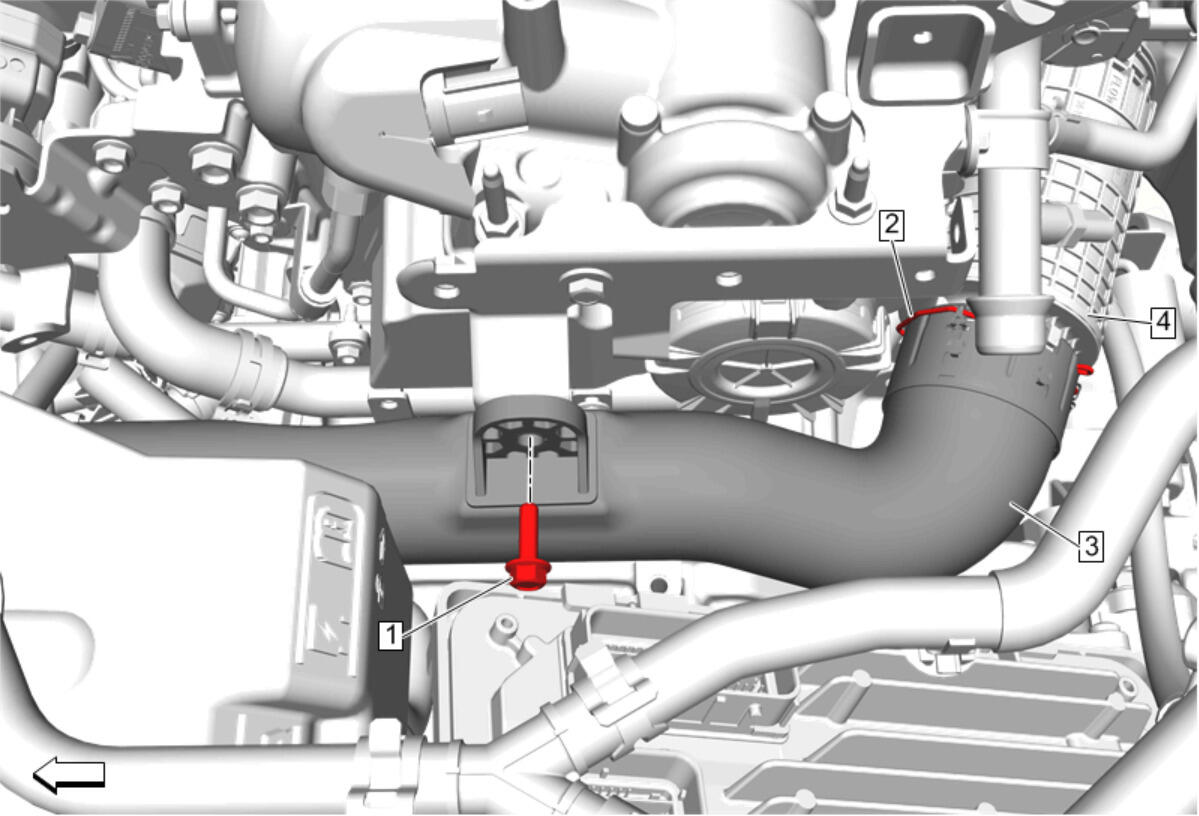

Charge Air Cooler Inlet Air Tube (3) - Remove - Charge Air Cooler Inlet Air Tube Replacement
- Charge Air Cooler Outlet Air Hose - Remove - Charge Air Cooler Outlet Air Hose Replacement
- Radiator Outlet Hose - Remove - Radiator Outlet Hose Replacement (LSY)
- Air Conditioning Compressor and Condenser Hose @ Air Conditioning Compressor - Disconnect - Air Conditioning Compressor and Condenser Hose Replacement (LSY)

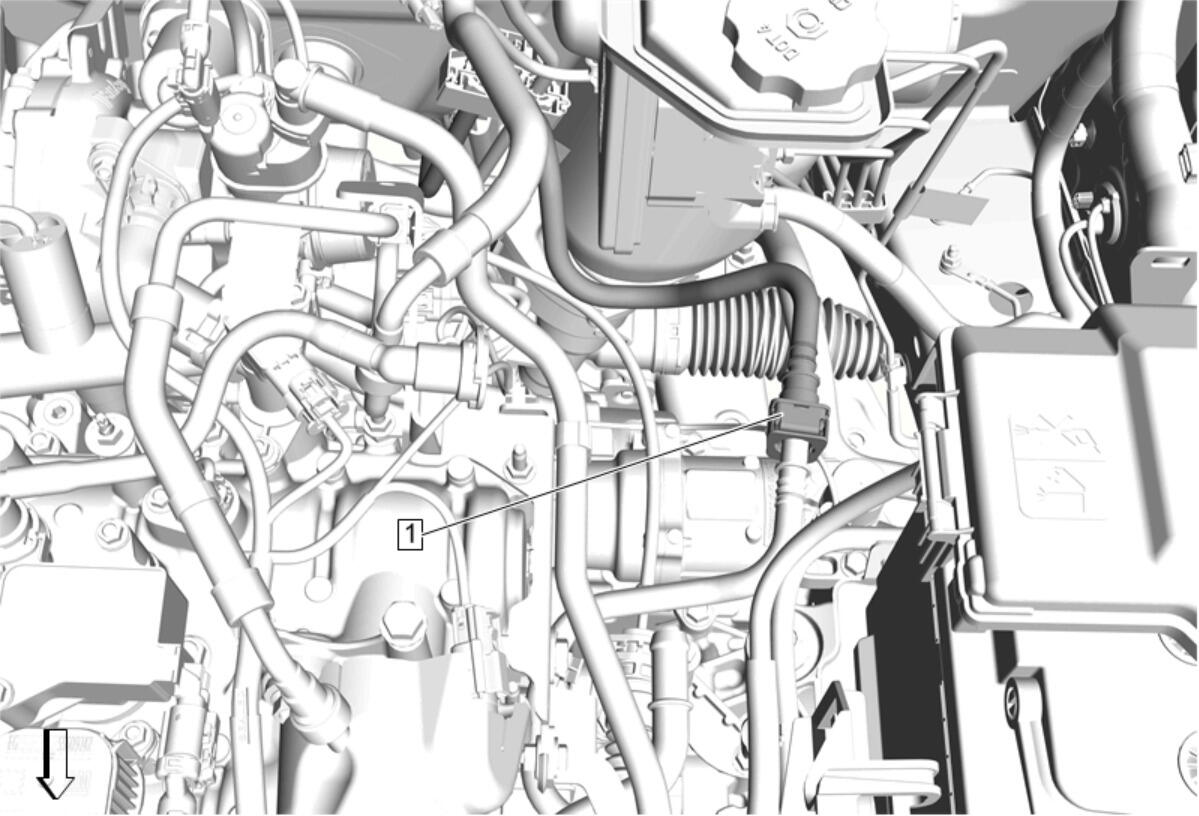

Automatic Transmission Range Selector Lever Cable (4) @ Automatic Transmission - Disconnect - Automatic Transmission Range Selector Lever Cable Replacement

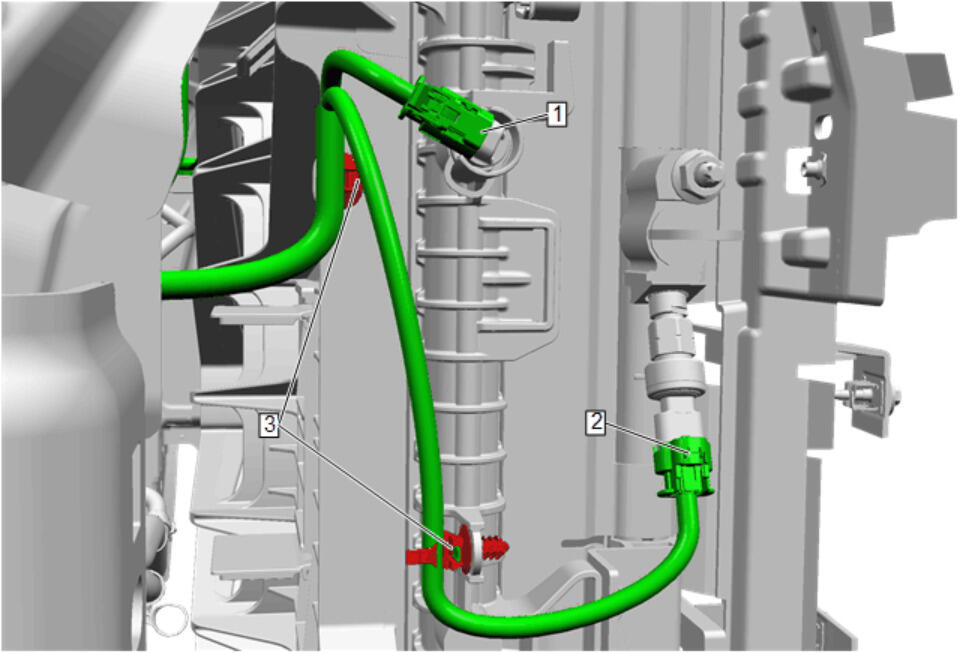

Engine Wiring Harness Connector (1) @ Engine Coolant Temperature Sensor - Disconnect
- Engine Wiring Harness Connector (2) @ Air Conditioning Refrigerant Pressure Sensor - Disconnect
- Engine Wiring Harness Retainer (3) - Unclip [2x]

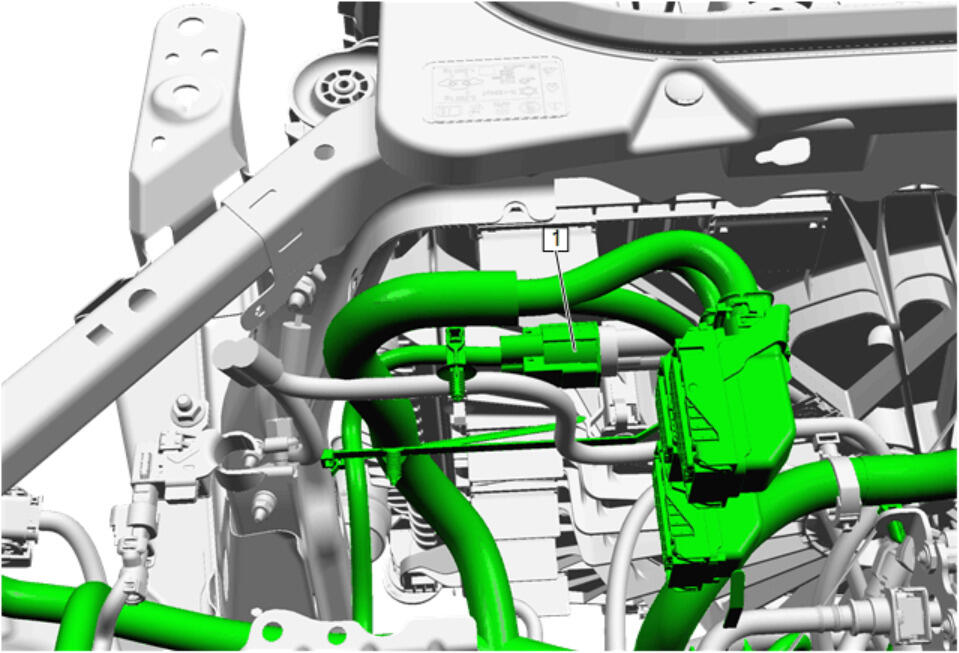

Engine Wiring Harness Connector (1) @ Cooling Fan - Disconnect
- Transmission Control Module - Disconnect - Transmission Control Module Replacement

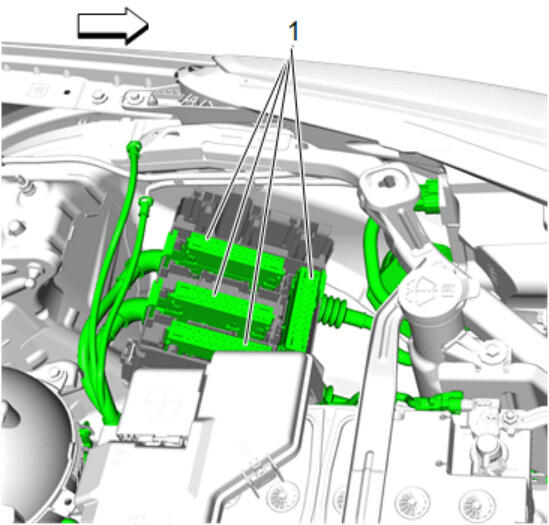

Engine Wiring Harness (1) @ Engine Wiring Harness Junction Block - Disconnect - Engine Wiring Harness Junction Block Replacement

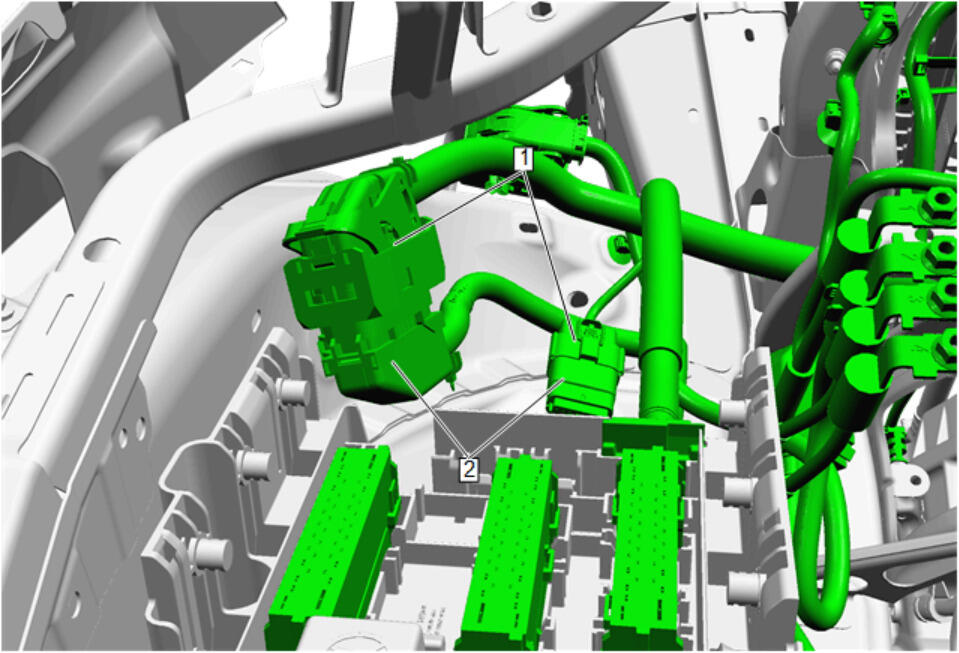

Engine Wiring Harness (1) @ Body Wiring Harness (2) - Disconnect
- Reposition the engine wiring harness onto the engine.
- Drivetrain and Front Suspension Cradle - Remove - Drivetrain and Front Suspension Cradle Removal and Installation (FWD)
- Front Wheel Drive Half Shaft-Left Side - Remove - Front Wheel Drive Half Shaft Replacement - Left Side
- Front Wheel Drive Half Shaft-Right Side - Remove - Front Wheel Drive Shaft Replacement - Right Side (LSY with FWD)
-
Propulsion System Lift Table - Install - Propulsion System Lift Table
- Engine Mount - Remove - Engine Mount Replacement
- Transmission Mount - Remove - Transmission Mount Replacement (Left)
- Slowly lower the support table until the powertrain assembly is clear of the vehicle.
- Remove the transmission from the engine. Transmission Replacement (Front Wheel Drive)
- Install the engine to a suitable engine stand.
- Transfer components as necessary.
It is not necessary to install the engine support fixture. The engine mount and transmission mount will remain in place until the powertrain is supported by the propulsion system lift table.
Ensure adequate clearance between the powertrain assembly and surrounding components is maintained during powertrain removal.
