Installation Procedure
WARNING: This page is about a different variant/trim than selected.
Engine Mount (3) - Install
- Engine Mount Bolt (2) - Install [2x] 58 N.m (43 lb ft)
- Engine Mount Engine Side Bolt (1) - Install and tighten [2x] 100 N.m (74 lb ft)
- Engine Support Fixture - Remove - Engine Support Fixture
Engine Mount Brace (3) - Install - Engine Mount Brace Replacement

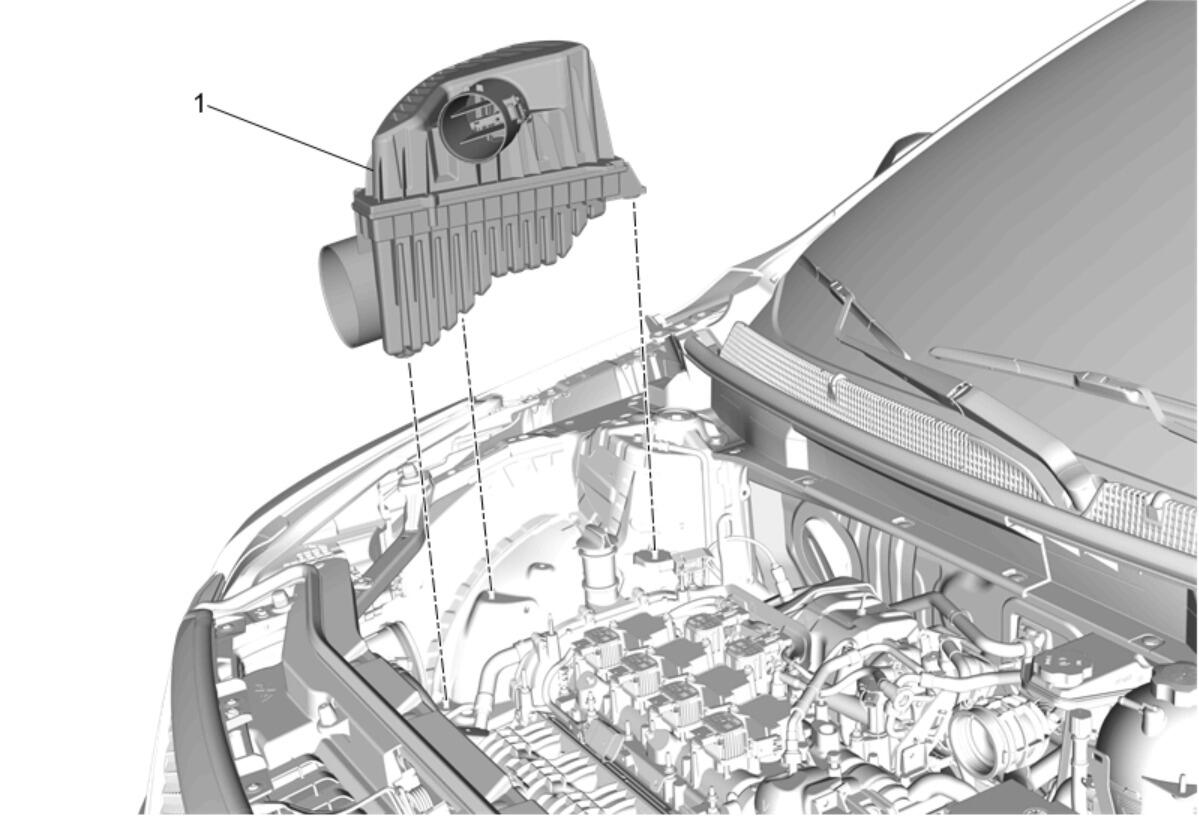

Air Cleaner Assembly (1) - Install - Air Cleaner Assembly Replacement
CAUTION:
Refer to Fastener Caution .
