Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Air Cleaner Assembly - Remove - Air Cleaner Assembly Replacement
  2. Engine Coolant Temperature Sensor @ Water Pump Outlet Pipe - Remove - Engine Coolant Temperature Sensor Replacement - Water Pump Outlet Pipe
  3. GM5085711Courtesy of GENERAL MOTORS COMPANY

    Crankshaft Balancer (1) - Remove - Crankshaft Balancer Replacement

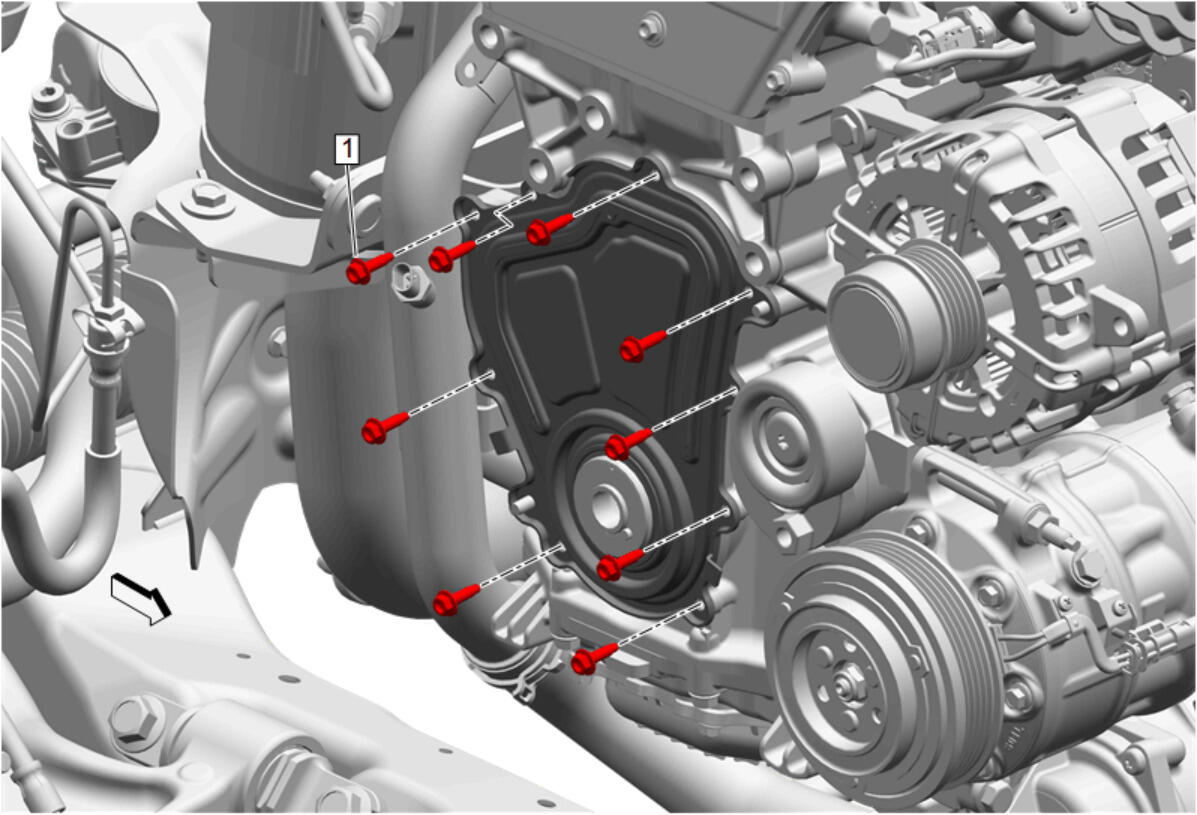

  4. GM5085918Courtesy of GENERAL MOTORS COMPANY

    Engine Front Cover Bolt (1) - Remove [9x]

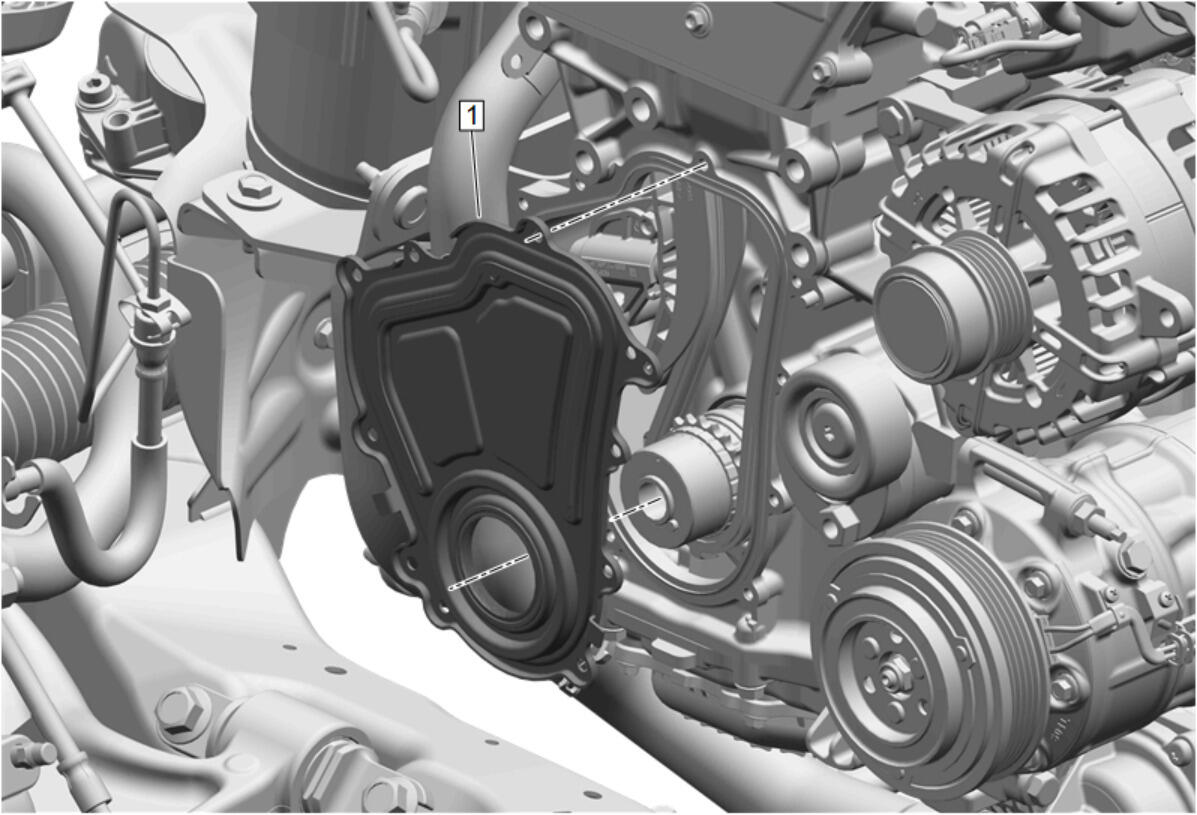

  5. GM5085923Courtesy of GENERAL MOTORS COMPANY

    Engine Front Cover (1) - Remove and DISCARD
