Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Align the notch of the crankshaft balancer to the timing pin in the crankshaft.

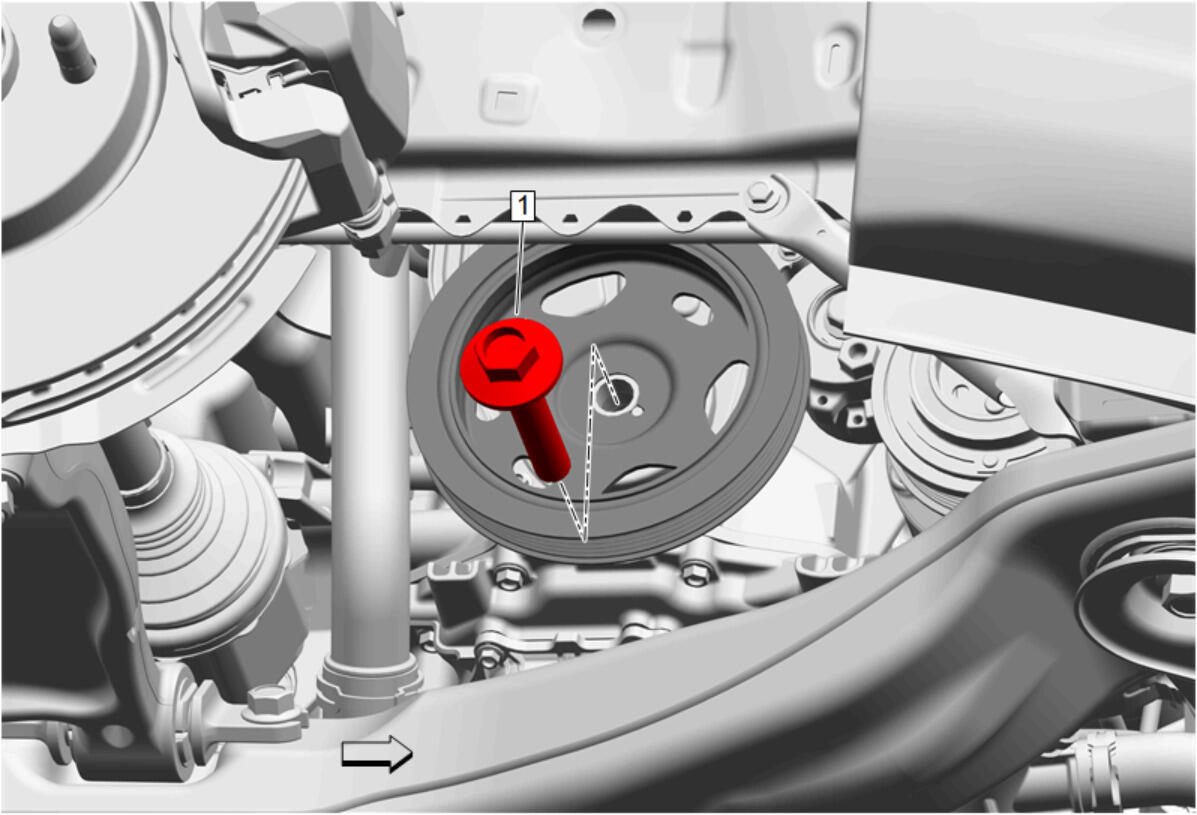

Crankshaft Balancer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

CAUTION:
Refer to Torque-to-Yield Fastener Caution .

NOTE:
The timing pin feature must be retracted during the balancer bolt installation.

Crankshaft Balancer Bolt (2) - Install NEW and tighten
1. First Pass: 150 N.m (111 lb ft)
2. Final Pass: 140 degrees, use the EN-45059 Angle Meter
Front Wheelhouse Liner- Right Side - Install - Front Wheelhouse Liner Replacement
Install the right front tire and wheel assembly. Tire and Wheel Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

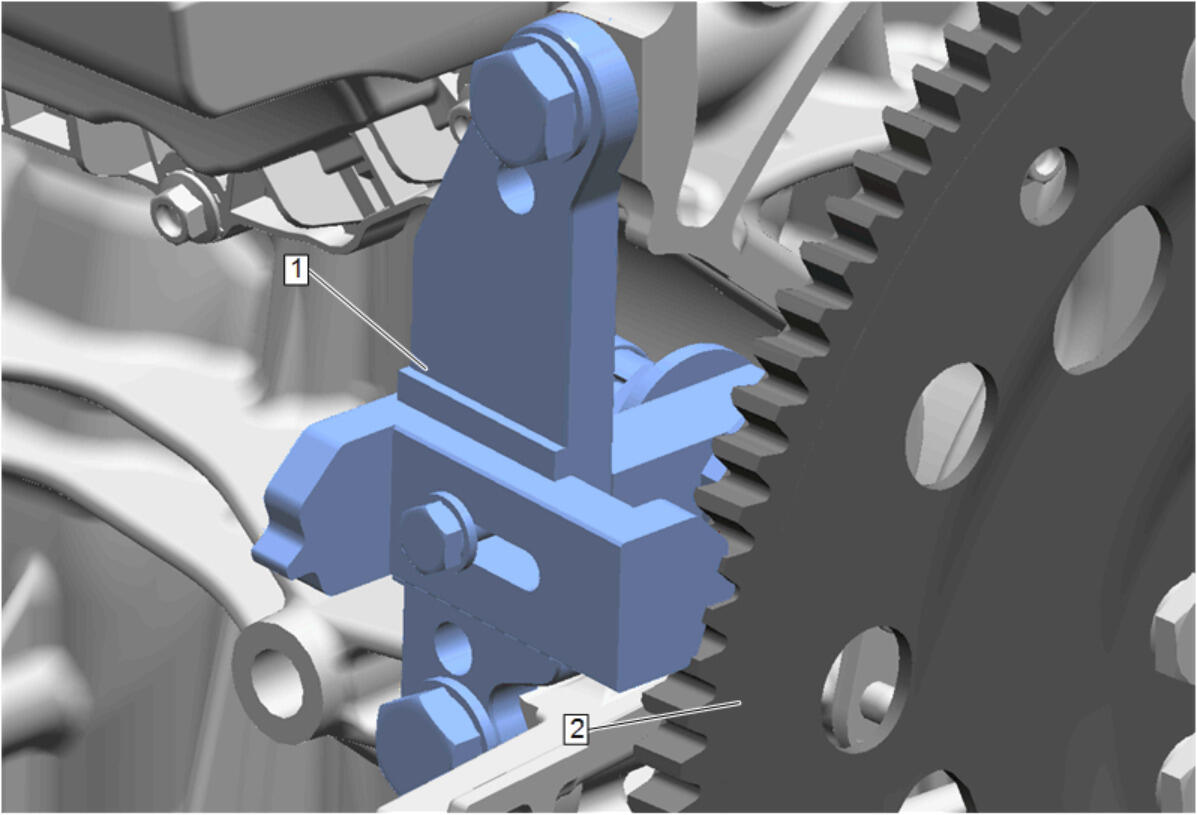

Remove the EN-52476 Flywheel Holding Tool.
Courtesy of GENERAL MOTORS COMPANY

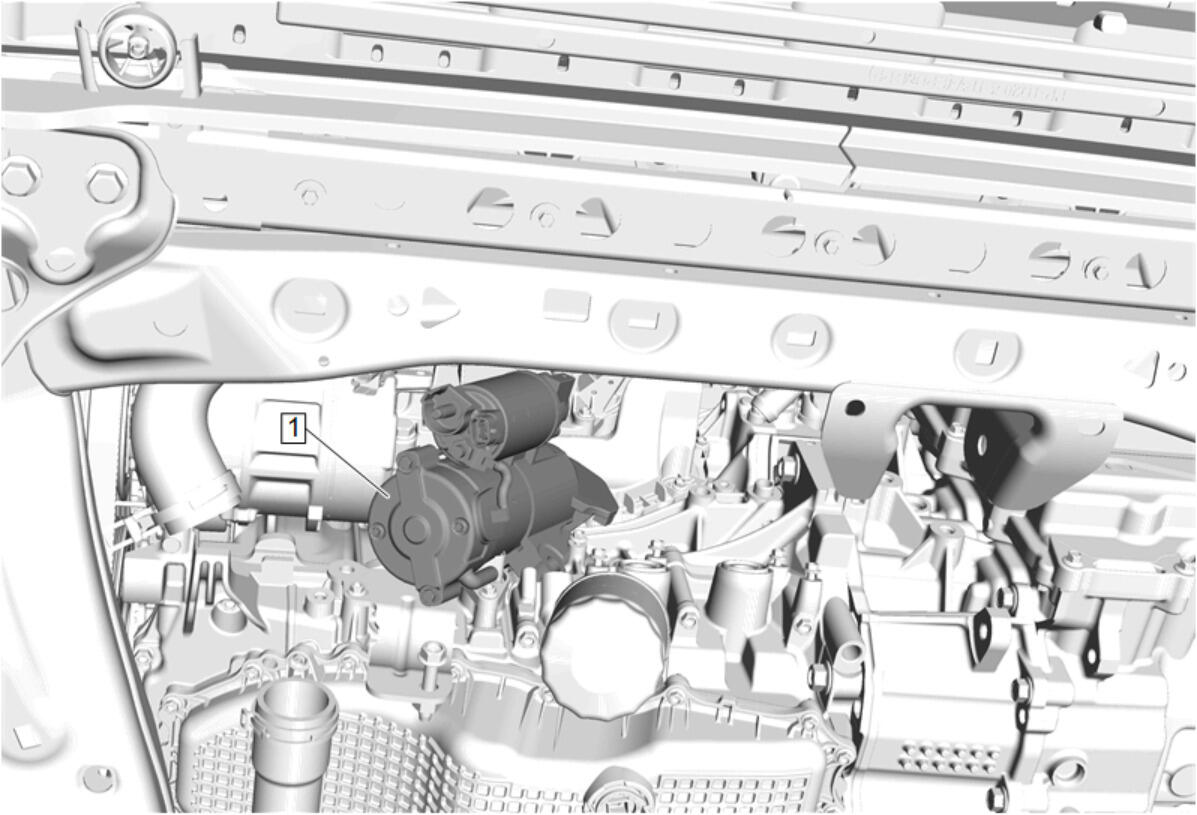

Starter Motor (1) - Install - Starter Replacement (LSY)
Fig 1: Identifying Accessory Drive Primary Belt Routing
Courtesy of GENERAL MOTORS COMPANY

Accessory Drive Primary Belt (1) - Install - Accessory Drive Primary Belt Replacement
