Installation Procedure

WARNING: This page is about a different variant/trim than selected.

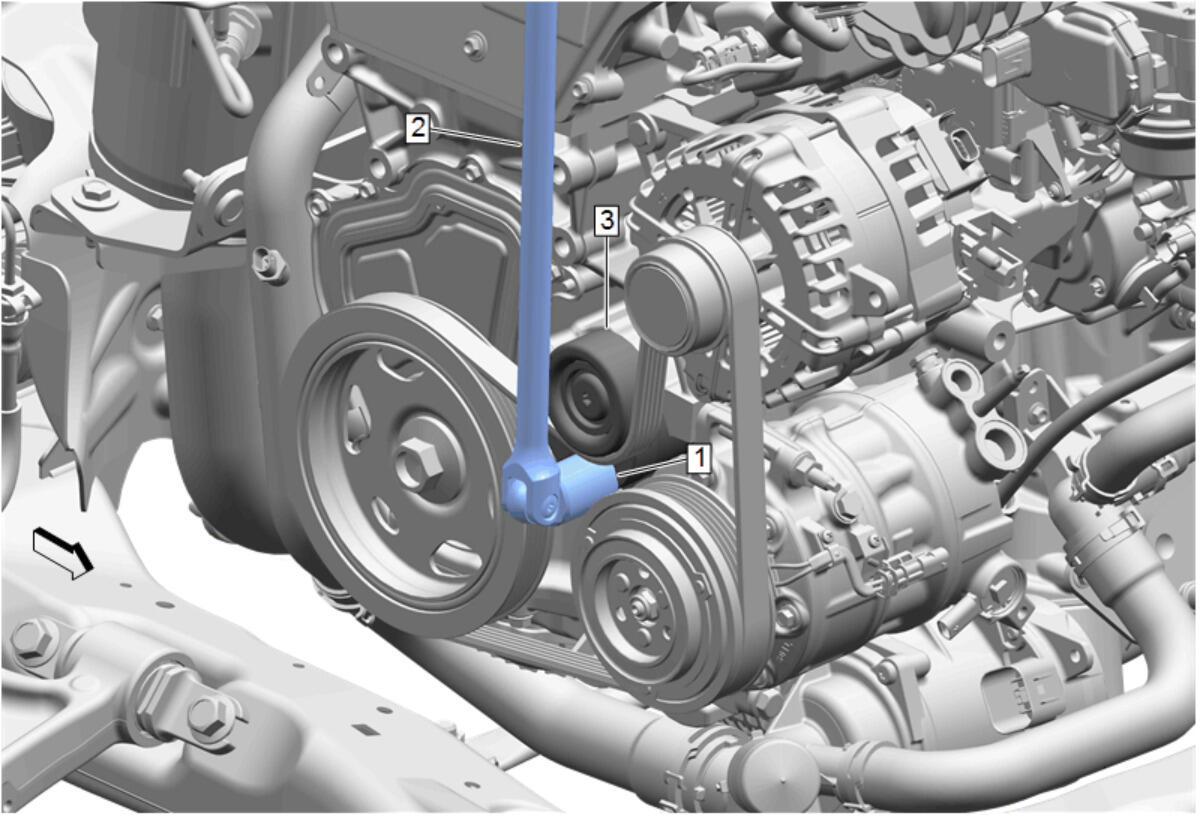

  1. GM5085647Courtesy of GENERAL MOTORS COMPANY

    Apply tension to the accessory drive primary belt tensioner (3) by rotating counterclockwise and hold tension.

  2. Fig 1: Identifying Accessory Drive Primary Belt Routing
    GM5085662Courtesy of GENERAL MOTORS COMPANY

    Accessory Drive Primary Belt (2) - Install

  3. Slowly release tension on the accessory drive primary belt tensioner.

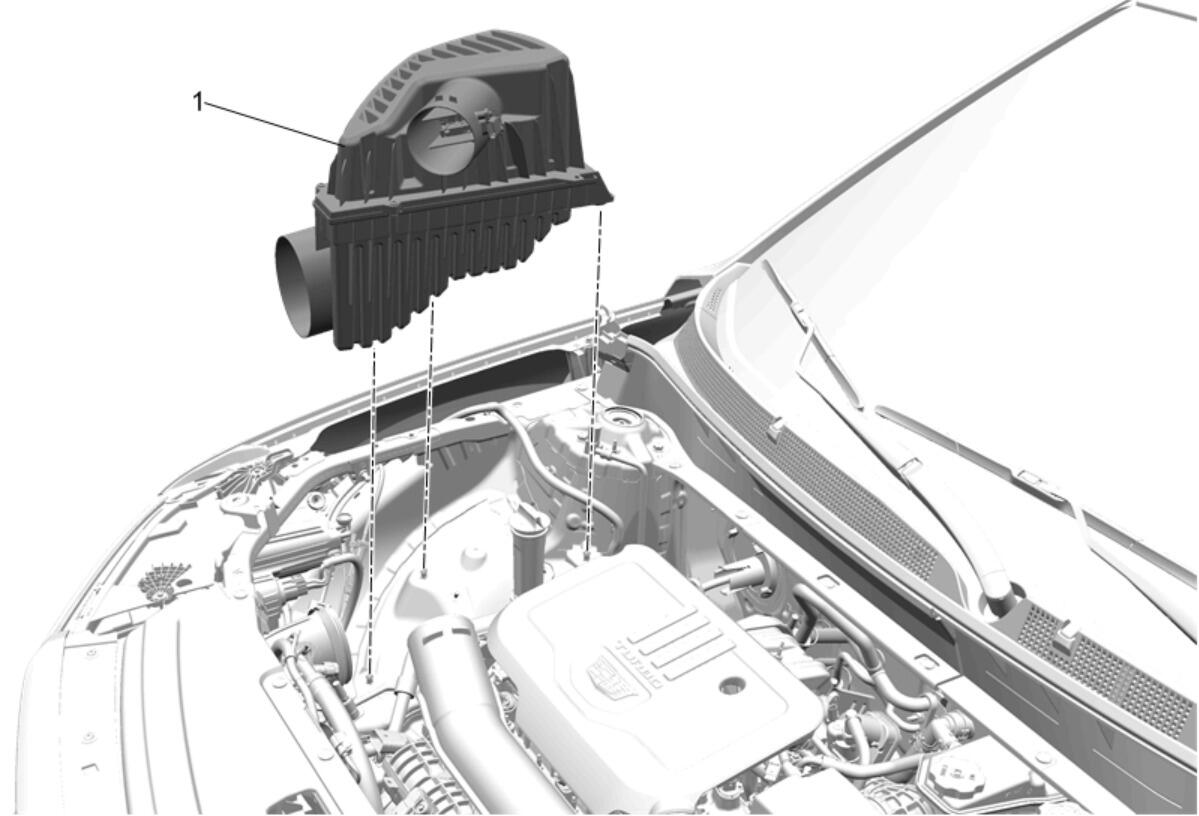

  4. GM5214704Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Assembly (1) - Install - Air Cleaner Assembly Replacement
