Installation Procedure

Brake Pressure Modulator Valve Master Cylinder Reservoir Front Brake Pipe - Install
Remove the plug from the brake pressure modulator valve inlet port.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

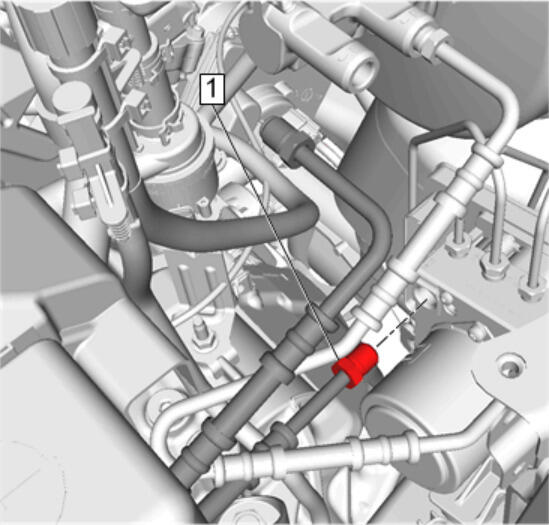

Brake Pressure Modulator Valve Master Cylinder Reservoir Front Brake Pipe Fitting (1) - Install and tighten 32 N.m (24 lb ft)
Remove the plug from the master cylinder outlet port.
Courtesy of GENERAL MOTORS COMPANY

Brake Pressure Modulator Valve Master Cylinder Reservoir Front Brake Pipe Fitting (1) - Install and tighten 32 N.m (24 lb ft)
Reposition and install the radiator surge tank. - Radiator Surge Tank Replacement (LCV) , or Radiator Surge Tank Replacement (LGX) , or Radiator Surge Tank Replacement (LSY)
Bleed the brake system. Hydraulic Brake System Bleeding (Manual without JEO) , or Hydraulic Brake System Bleeding (Pressure without JEO) , or Hydraulic Brake System Bleeding (Pressure with JEO)
