Rear Seat Removal and Installation (40 Percent Seat)

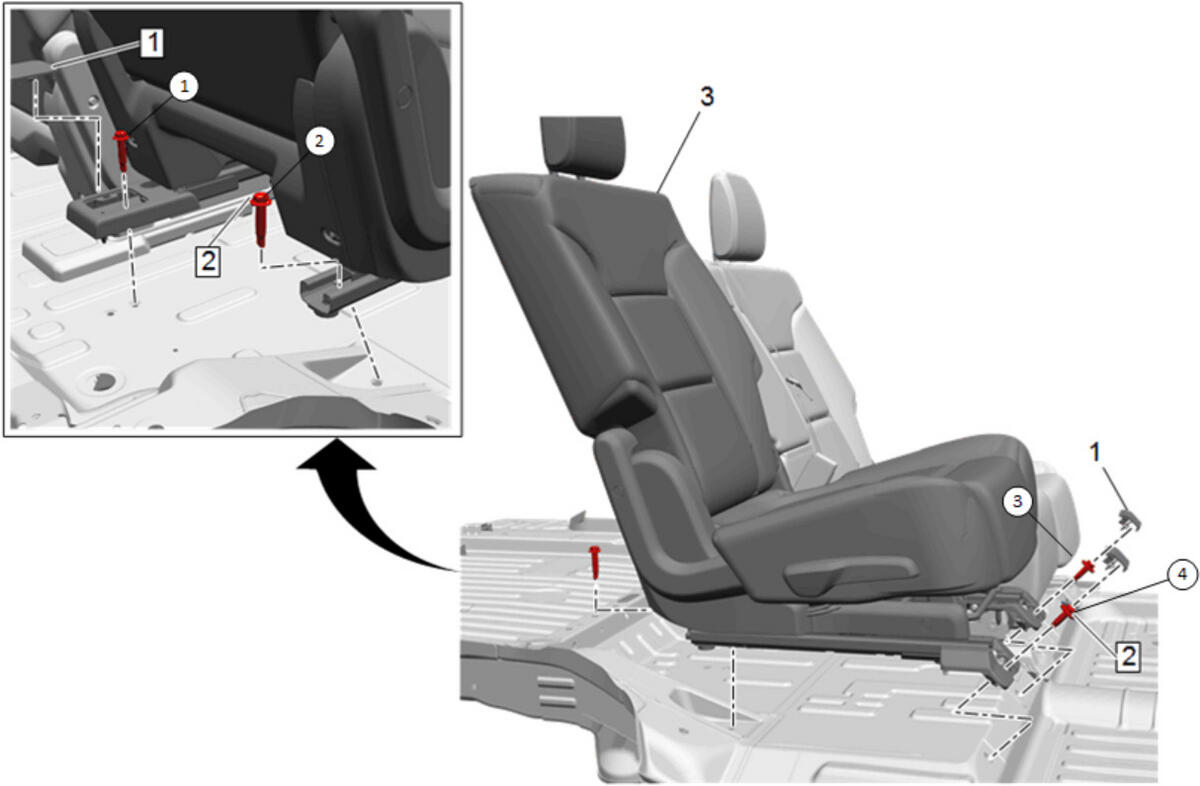

Fig 1: Identifying Rear Seat Components And Bolts With Tightening Sequence (40 Percent Seat)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Compartment Floor Stowage Compartment Divider Replacement
1	Rear Seat Track Cover [3x]
2	Rear Seat Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten in sequence 45 N.m (33 lb ft)
3	Rear Seat Procedure Disconnect electrical connections, if applicable. Fold the rear seat back cushion down to gain access to the rear seat bolts. Disconnect the recliner cable from the release lever cable equalizer. Lift the carpet flap to access, slide the retainer door open and disconnect the cable. With the aid of an assistant remove the rear seat, by lifting and pulling the seat upward to disengage it from the floor.
