Rear Compartment Floor Stowage Compartment Divider Replacement

Courtesy of GENERAL MOTORS COMPANY

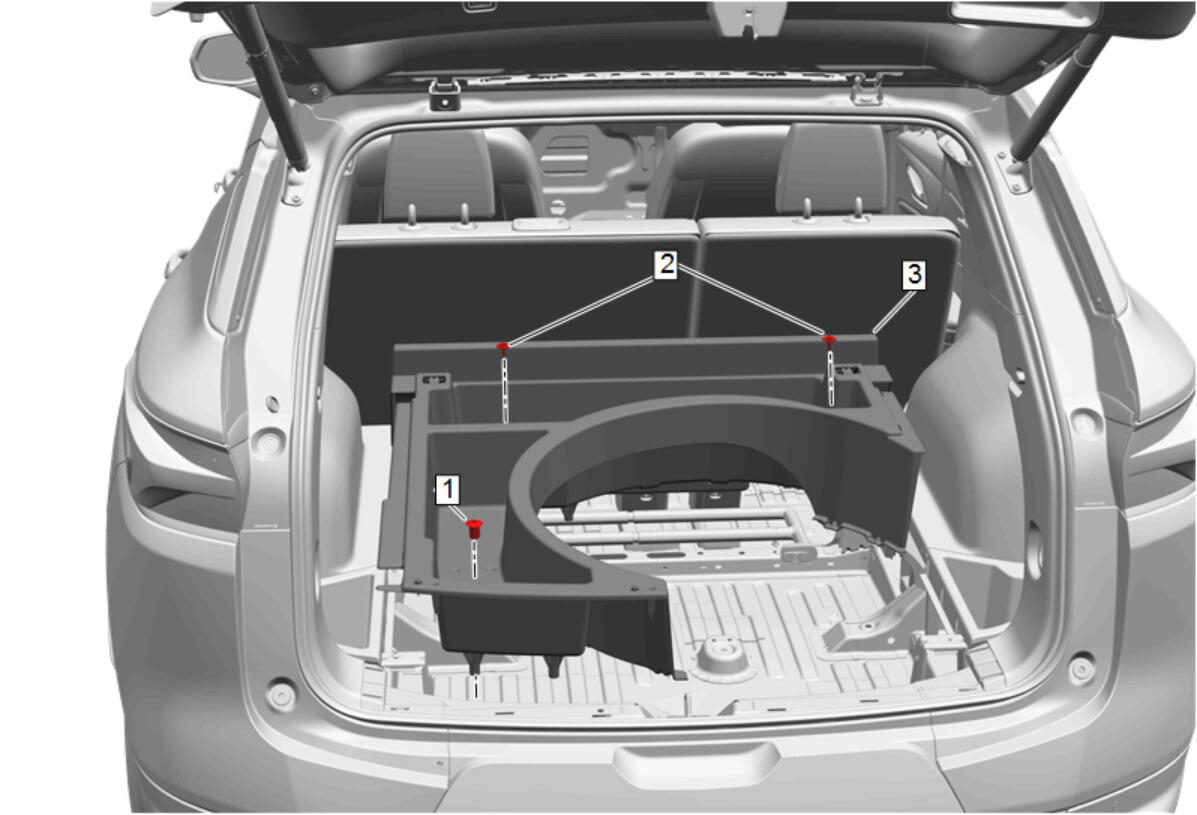

Callout	Component Name
Preliminary Procedure Load Floor Trim Panel Replacement Cargo Partition Track Replacement Transfer components as necessary.
1	Rear Compartment Floor Stowage Compartment Divider Retainer CAUTION: Refer to Fastener Caution . Tighten 2.7 N.m (24 lb in)
2	Luggage Carrier Cross Rail Bolt [2x] Tighten 3.4 N.m (30 lb in)
3	Rear Compartment Floor Stowage Compartment Divider
