Rear Tire Front Air Deflector Replacement

Courtesy of GENERAL MOTORS COMPANY

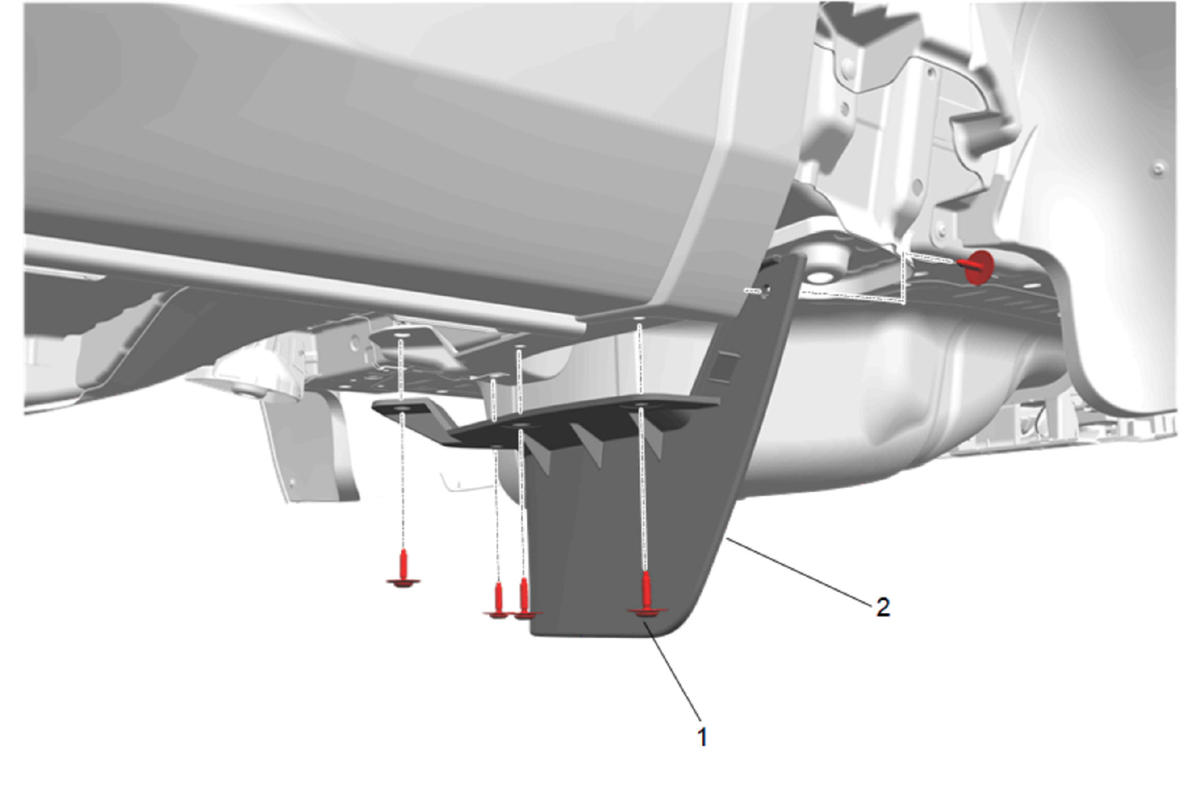

Callout	Component Name
1	Rear Tire Front Air Deflector Bolt [5x] CAUTION: Refer to Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Rear Tire Front Air Deflector
