Rear Compartment Floor Stowage Trim Compartment Replacement - Right Side

Courtesy of GENERAL MOTORS COMPANY

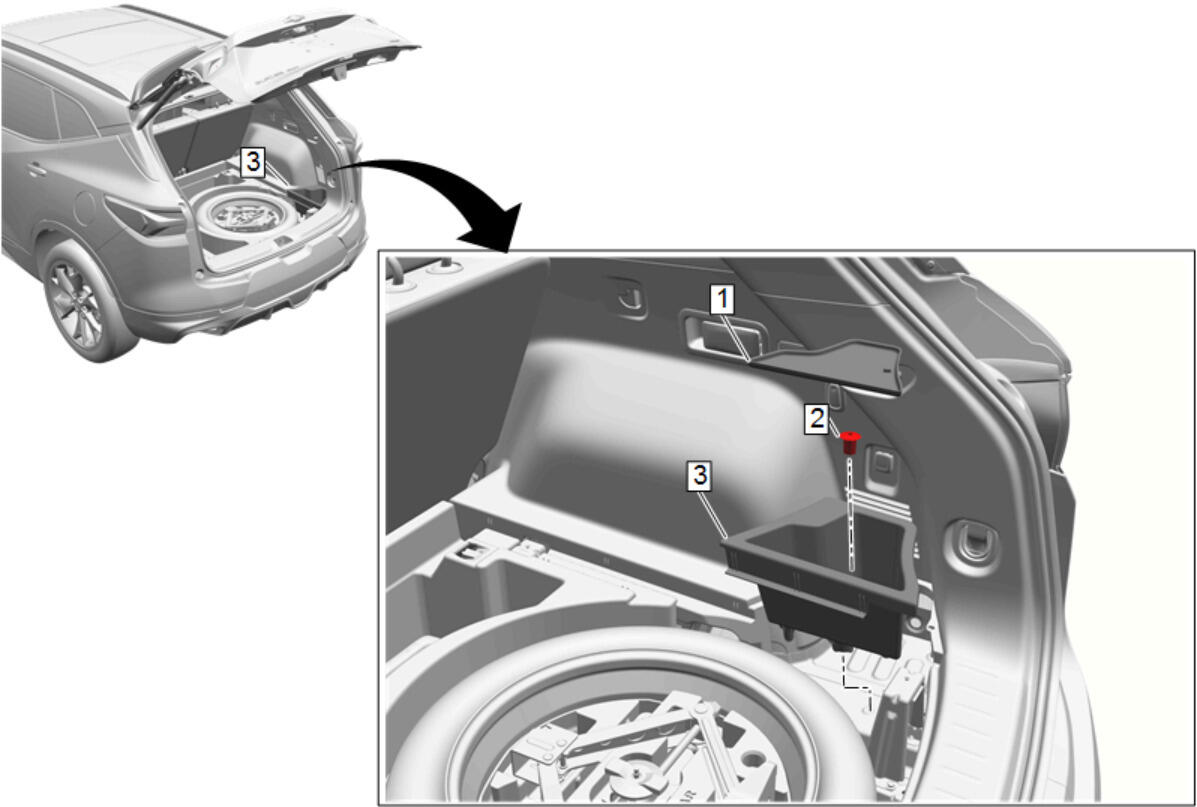

Callout	Component Name
Preliminary Procedures Cargo Partition Track Replacement Open the load floor trim panel and secure with integral hook.
1	Cargo Container Mat
2	Rear Compartment Floor Stowage Compartment Divider Retainer CAUTION: Refer to Fastener Caution . Tighten 2.7 N.m (24 lb in)
3	Rear Compartment Floor Stowage Trim Compartment-Right Side
