Cargo Partition Track Replacement

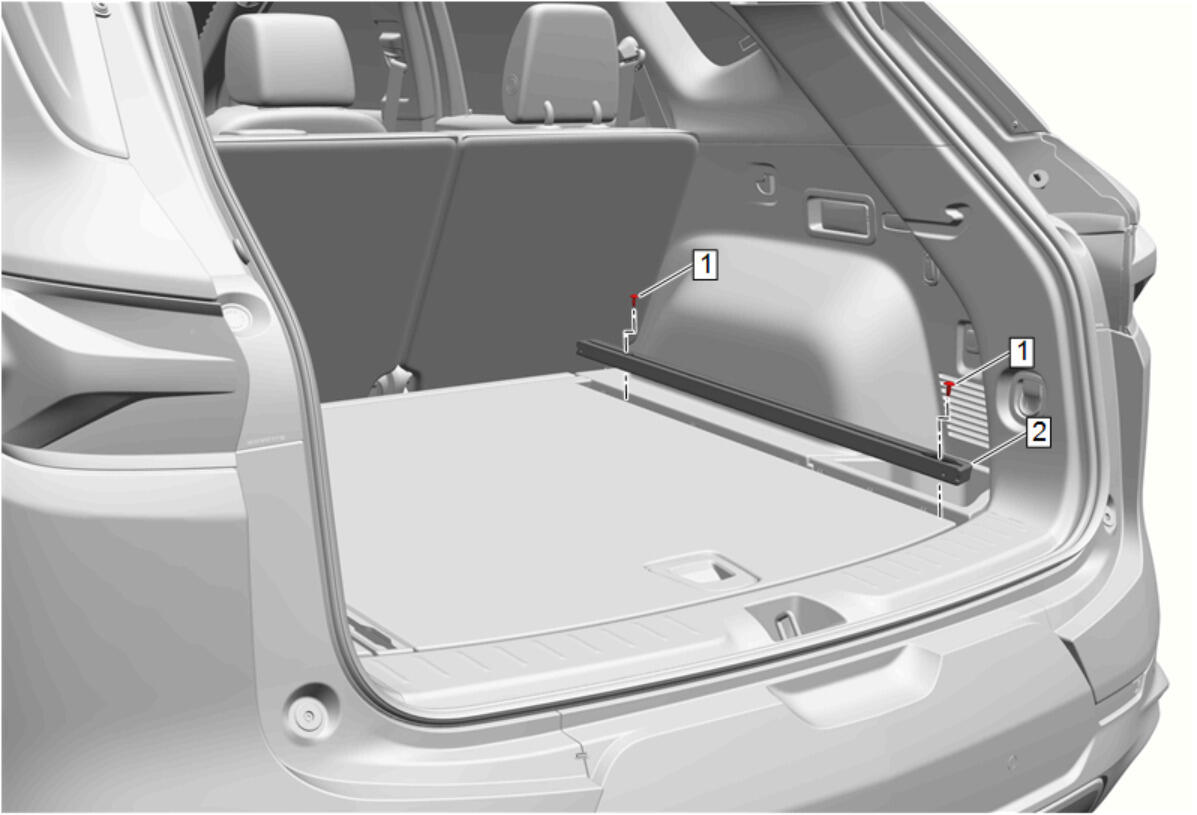

GM5135459Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Cargo Partition Track Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Cargo Partition Track
