Rear Side Door Replacement

Courtesy of GENERAL MOTORS COMPANY

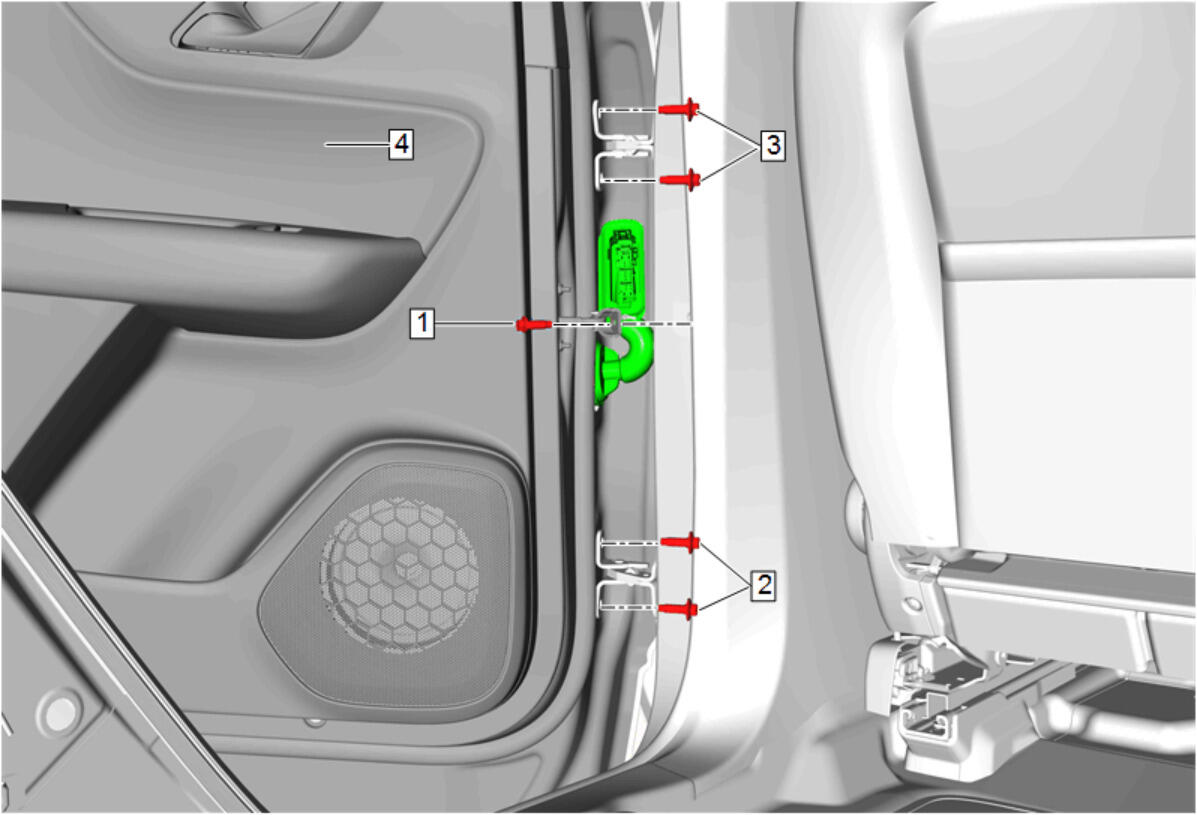

Callout	Component Name
Preliminary Procedures Mark the location of the hinge before removing the bolts with a grease pencil. Disconnect the electrical connector.
1	Rear Side Door Check Link Bolt CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Rear Side Door Hinge Bolt - Door Side [2x] Tighten 25 N.m (18 lb ft)
3	Rear Side Door Hinge Bolt - Door Side [2x] Tighten 25 N.m (18 lb ft)
4	Rear Side Door Procedure With the aid of an assistant, remove the door. Transfer components as necessary. Adjust the rear side door if needed. Rear Side Door Adjustment
