Hood Primary and Secondary Latch Replacement

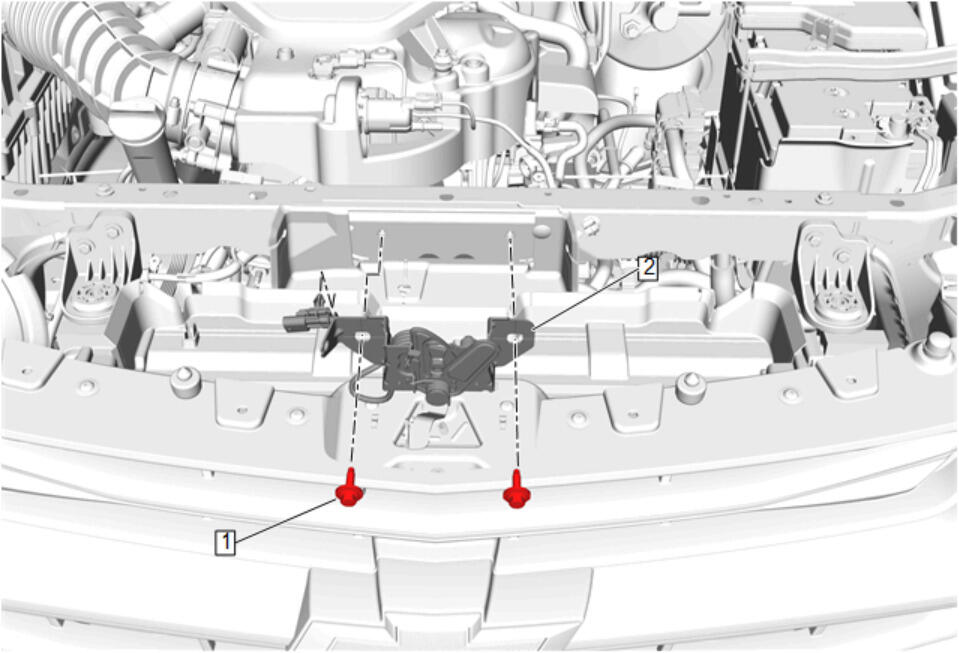

GM5128053

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove the appropriate intake air splash shield:

For LGX engine refer to Intake Air Splash Shield Replacement .
For LCV engine refer to Intake Air Splash Shield Replacement .
For LSY engine refer to Intake Air Splash Shield Replacement .

1

Hood Primary and Secondary Latch Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

2

Hood Primary and Secondary Latch

Procedure

Disconnect the hood primary latch release cable from the hood primary and secondary latch.
Disconnect the hood secondary latch release cable.
Disconnect the electrical connector from under the tie bar.
Align the hood primary and secondary latch if necessary.
